Fender Shield: Notes

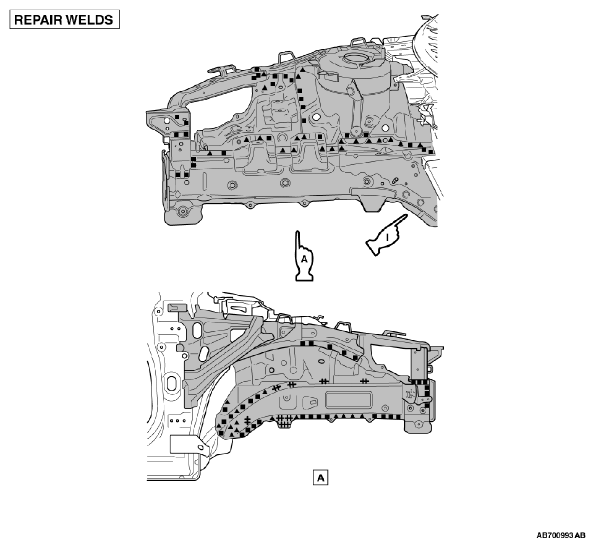

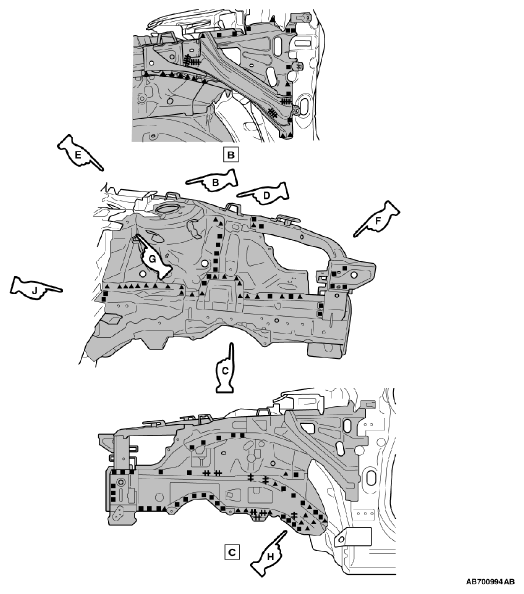

Fig 1: Fender Shield Component Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

SYMBOL DESCRIPTION

Symbol	Operation description
	Spot welding
	MIG plug welding (■ : indicates two panels to be welded : indicates three panels to be welded)
	MIG spot welding
	MIG arc welding (continuous)
	Braze welding
	Anti-corrosion agent application locations (Use access holes to apply liberally to butt-welded joints.)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

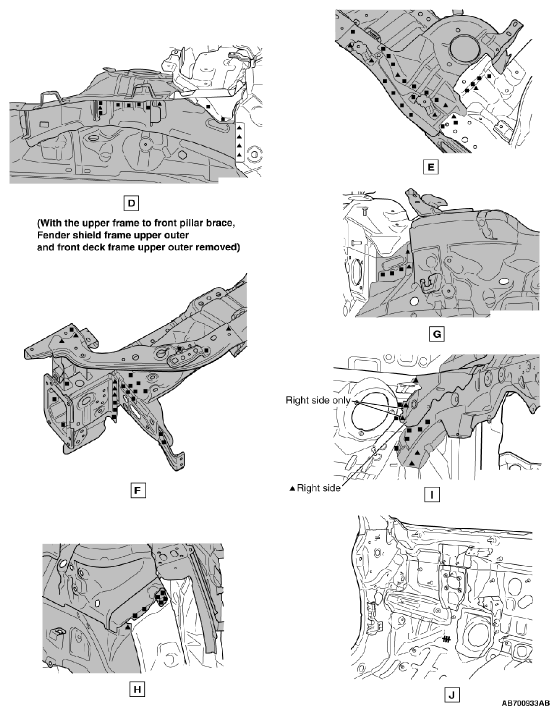

NOTE: Refer to the Front End Crossmember for the welding point with front end crossmember.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

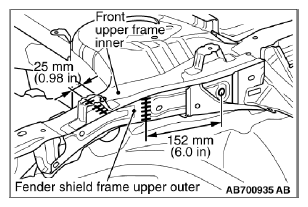

NOTE: Partial replacement of the front upper frame is possible depending on the range of damage. When performing partial replacement, cut the fender shield frame upper outer 152 mm (6.0 inches) forward of the positioning hole center, and cut the front upper frame inner 25 mm (0.98 inches) forward of the positioning hole center.

Fig 2: Fender Shield Partial Replacement Cut Lines, Measurements And Locations

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
