Front End CROSSMEMBER

Fig 1: Front End Crossmember Component Location
G11486693Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SYMBOL DESCRIPTION

Symbol Operation description
Spot welding
MIG plug welding
  1. (■ : indicates two panels to be welded
  2. : indicates three panels to be welded)
MIG spot welding
MIG arc welding (continuous)
Braze welding
Anti-corrosion agent application locations
(Use access holes to apply liberally to butt-welded joints.)

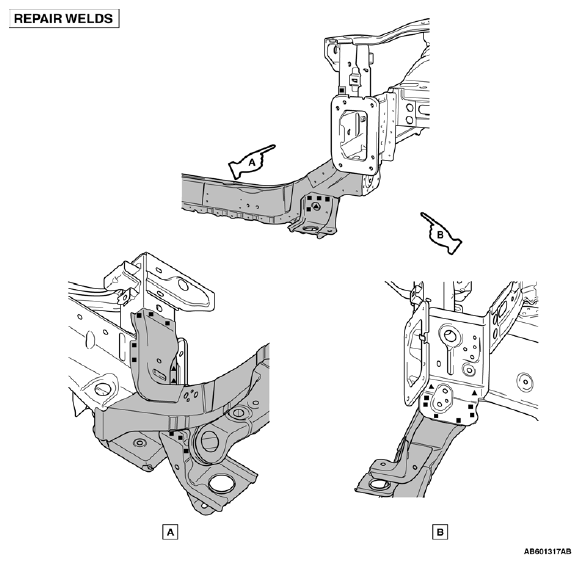

G11485644Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
