Vehicle Speed Sensor: Locations

The Four-Wheel Antilock Brake System (4WABS) module derives its speed signal from the rear axle speed sensor, which is part of the 4WABS system.

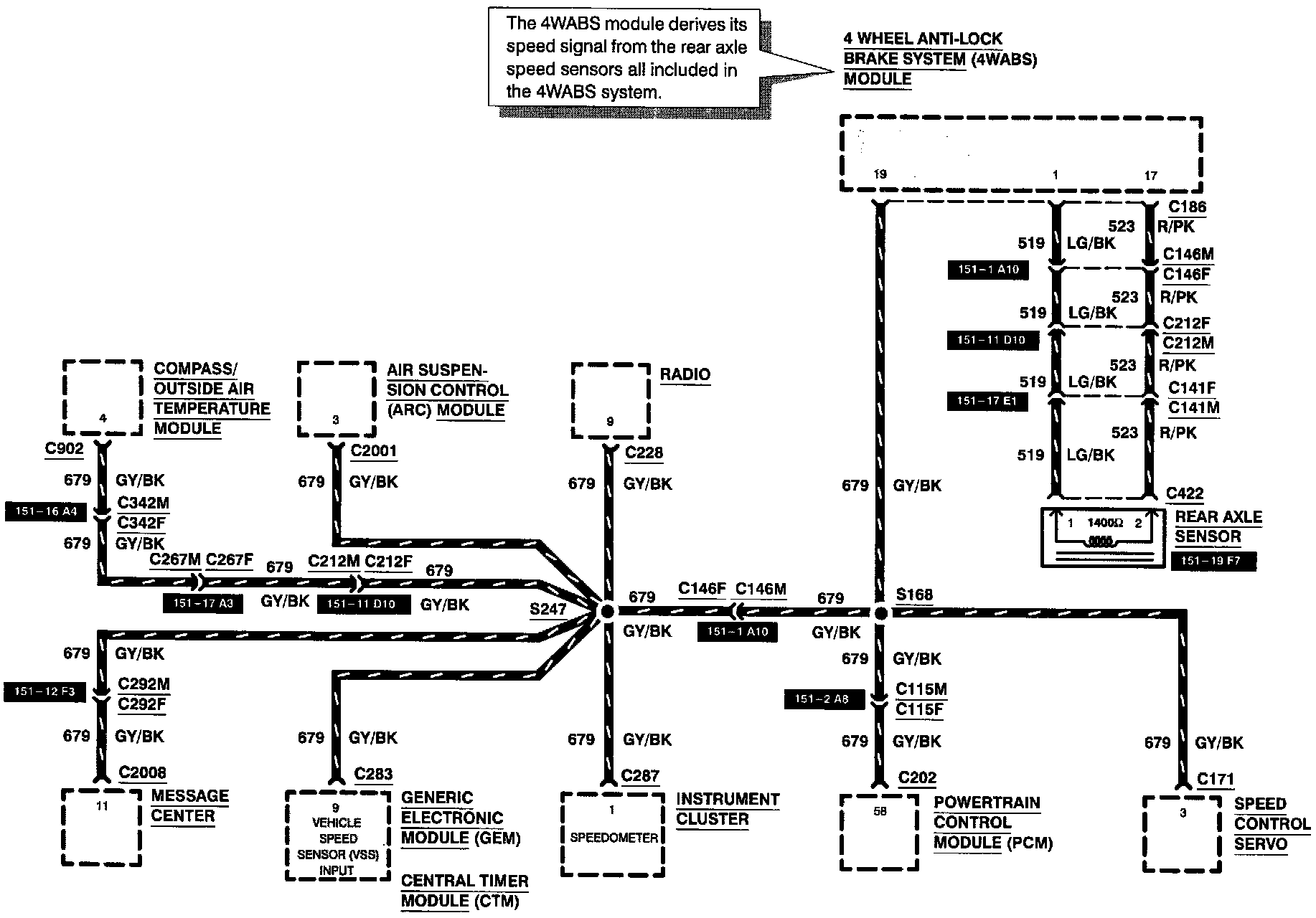

Diagram 64-1:

Ford DOES NOT provide an image showing the location of the Vehicle Speed Sensor.
