Escort L4-122 2.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
External Controls

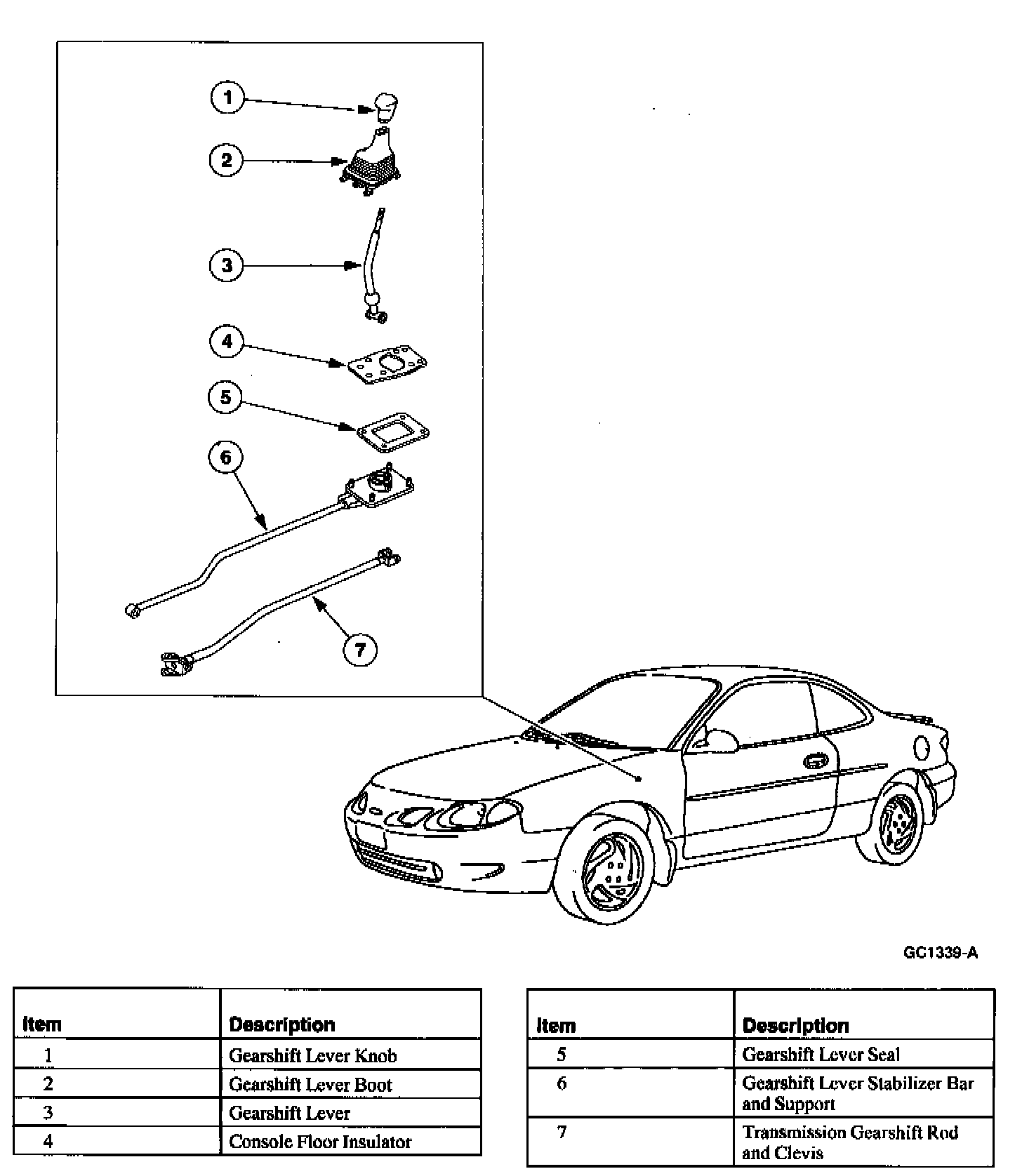

External Controls
Zetec shown, S/R series similar:
