LEMON Manuals
: Even more car manuals for everyone
Home
>>
Ford
>>
1994
>>
Escort L4-110 1.8L DOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Automatic Transmission
With Automatic Transmission

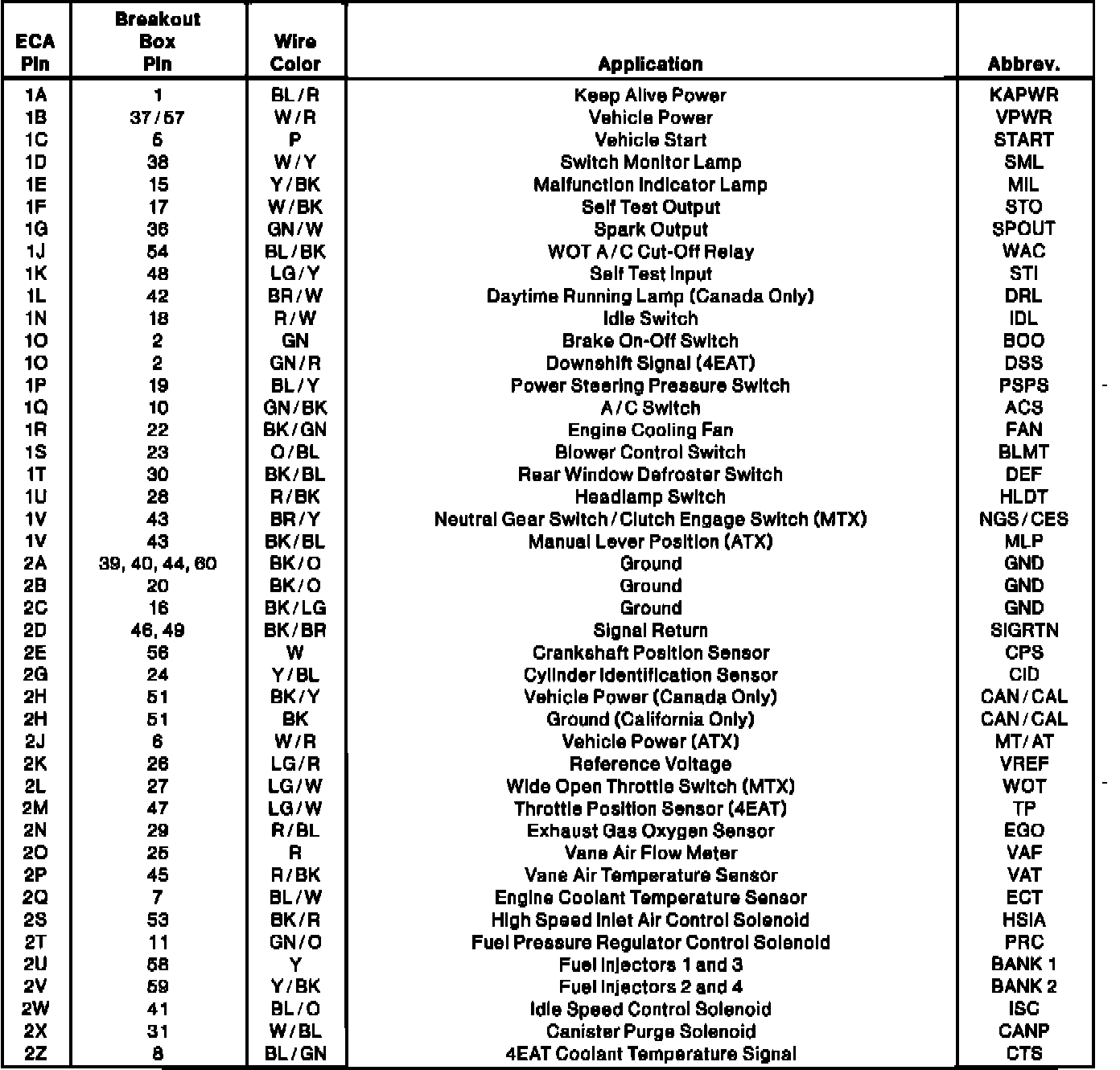

Electronic Control Assembly Connector Pinout:
