Installing The Control System Cover

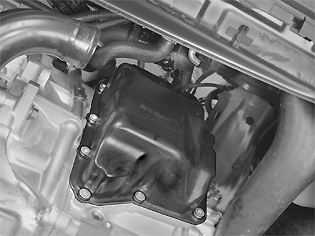

Fig 1: Identifying Control System Cover
GLL140989Courtesy of VOLVO CARS CORPORATION

Reinstall the control system cover on the transmission.

Ensure that the liquid gasket is not rubbed off when installing the cover.

Use new screws. Tighten the screws alternately to contact. Tighten. See: TIGHTENING TORQUE .
