Installing The Control Module

Fig 1: Clean The Marked Surface On The Control Module

GLL160130

Courtesy of VOLVO CARS CORPORATION

Clean the marked surface on the control module using isopropanol and wipe dry.

Fig 2: Identifying Velcro Straps

GLL160131

Courtesy of VOLVO CARS CORPORATION

Take the two Velcro straps from the kit and fasten them together edge to edge.

Fig 3: Remove The Protective Backing Tape

GLL160132

Courtesy of VOLVO CARS CORPORATION

Remove the protective backing tape from one side of the Velcro fasteners.

Fig 4: Identifying Velcro Onto The Control Module

GLL160133

Courtesy of VOLVO CARS CORPORATION

Press the Velcro fastening firmly onto the control module.

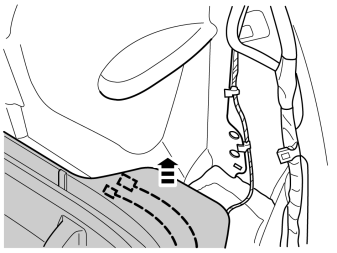

Fig 5: Locating Grey 2-Pin And Green 5-Pin Connectors Under Cargo Compartment Floor Support

GLL160134

Courtesy of VOLVO CARS CORPORATION

Find the grey 2-pin and green 5-pin connectors under the corner of the cargo compartment floor support. Lift up the cargo compartment floor support enough to improve accessibility.

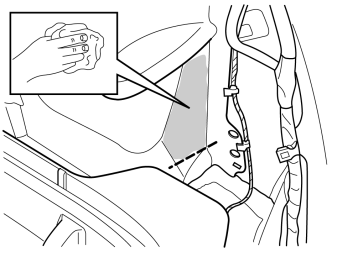

Fig 6: Cleaning Body Panel

GLL160135

Courtesy of VOLVO CARS CORPORATION

Clean the marked surface on the body panel using isopropanol and wipe dry.
NOTE:
Do not position the lower edge of the control module below the dashed line, as the body plate is folded here.

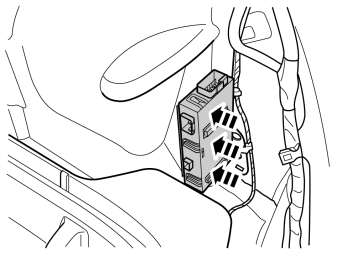

Fig 7: Press Control Module

GLL160136

Courtesy of VOLVO CARS CORPORATION

Take the control module and press it firmly on the rear edge of the wheel housing, a little from the edge of the plate.

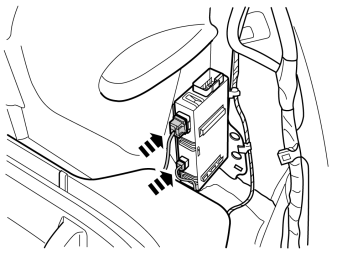

Fig 8: Connect Both Connectors To The Control Module

GLL160137

Courtesy of VOLVO CARS CORPORATION

Connect both connectors to the control module.

Fig 9: Identifying Fuse Box In The Engine Compartment.

GLL161820

Courtesy of VOLVO CARS CORPORATION

Applies to cars manufactured after w0720

Pull up the catch on the cover on the fuse box in the engine compartment. Pull up the cover and remove it.

Fig 10: Identifying Terminal 14

GLL161821

Courtesy of VOLVO CARS CORPORATION

Applies to cars manufactured after w0720

Take a 40A fuse from the kit and install it in position 14 in the fuse holder.
Reinstall the cover.

Fig 11: Identifying VIDA (Volvo scan tool)

GLL156654

Courtesy of VOLVO CARS CORPORATION

Program the software for the selected version of cable harness according to the service information in VIDA (Volvo scan tool).
