Installing Torque Control Arm

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2007 Volvo V70, 2006 Volvo V70, 2005 Volvo V70, 2004 Volvo V70, and 2003 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

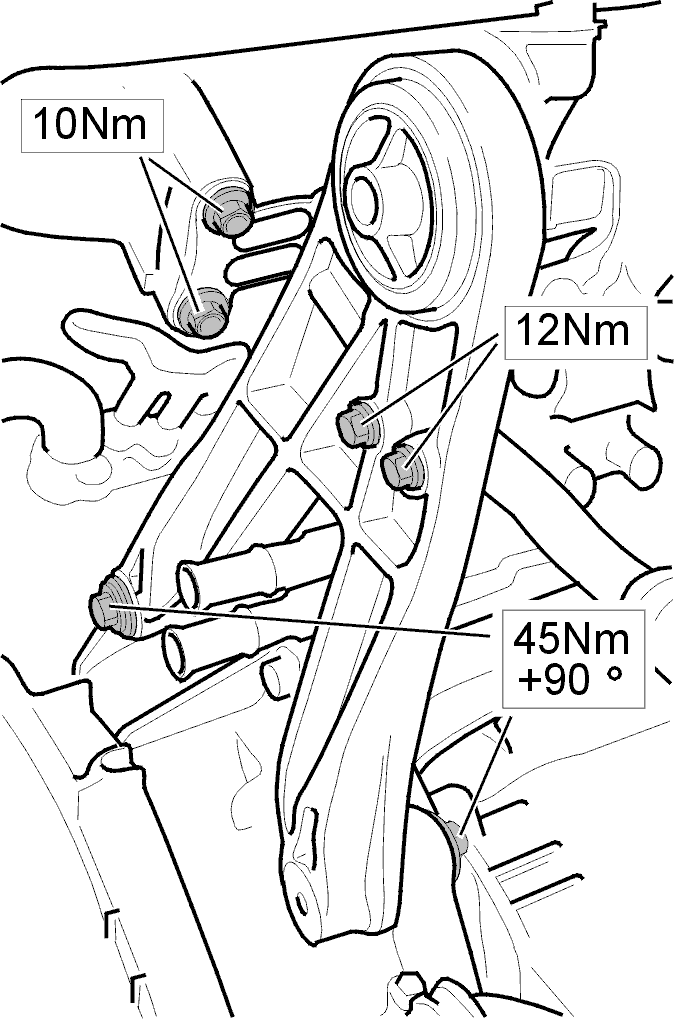

Fig 1: Identifying Torque Control Arm, Bolts And Torque Values

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new torque control arm and tighten as shown in the illustration.

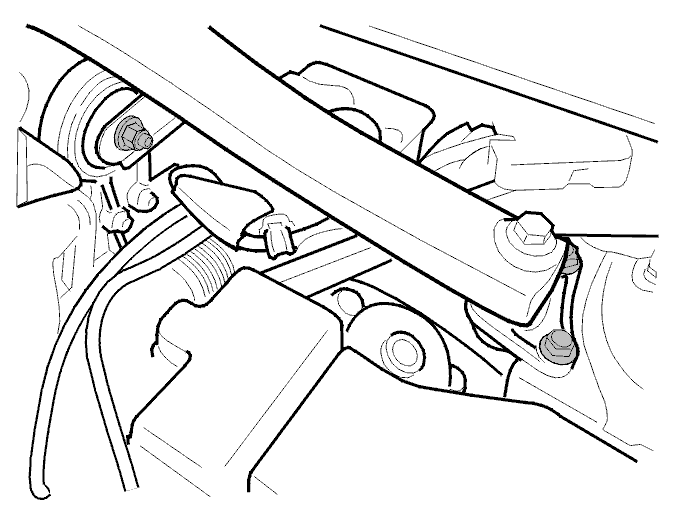

Fig 2: Identifying Engine Stabilizer Brace

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install

the torque rod.
the screws for the brackets at the suspension turrets. Tighten to 50 Nm .
the screw for the torque rod mounting in the bracket on the engine. Tighten to 80 Nm .
