List of Components By Component Number

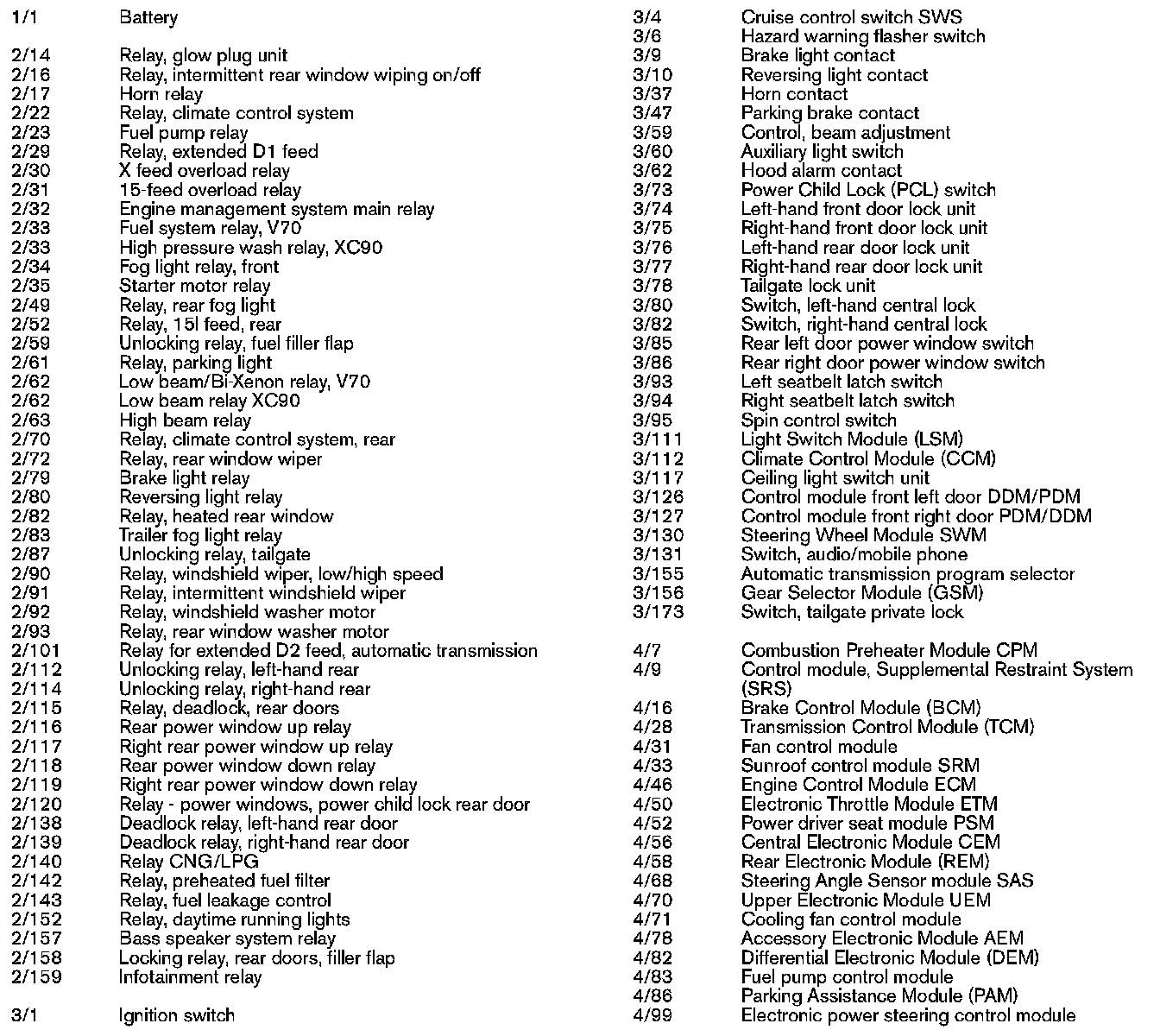

1/1 Through 3/174:

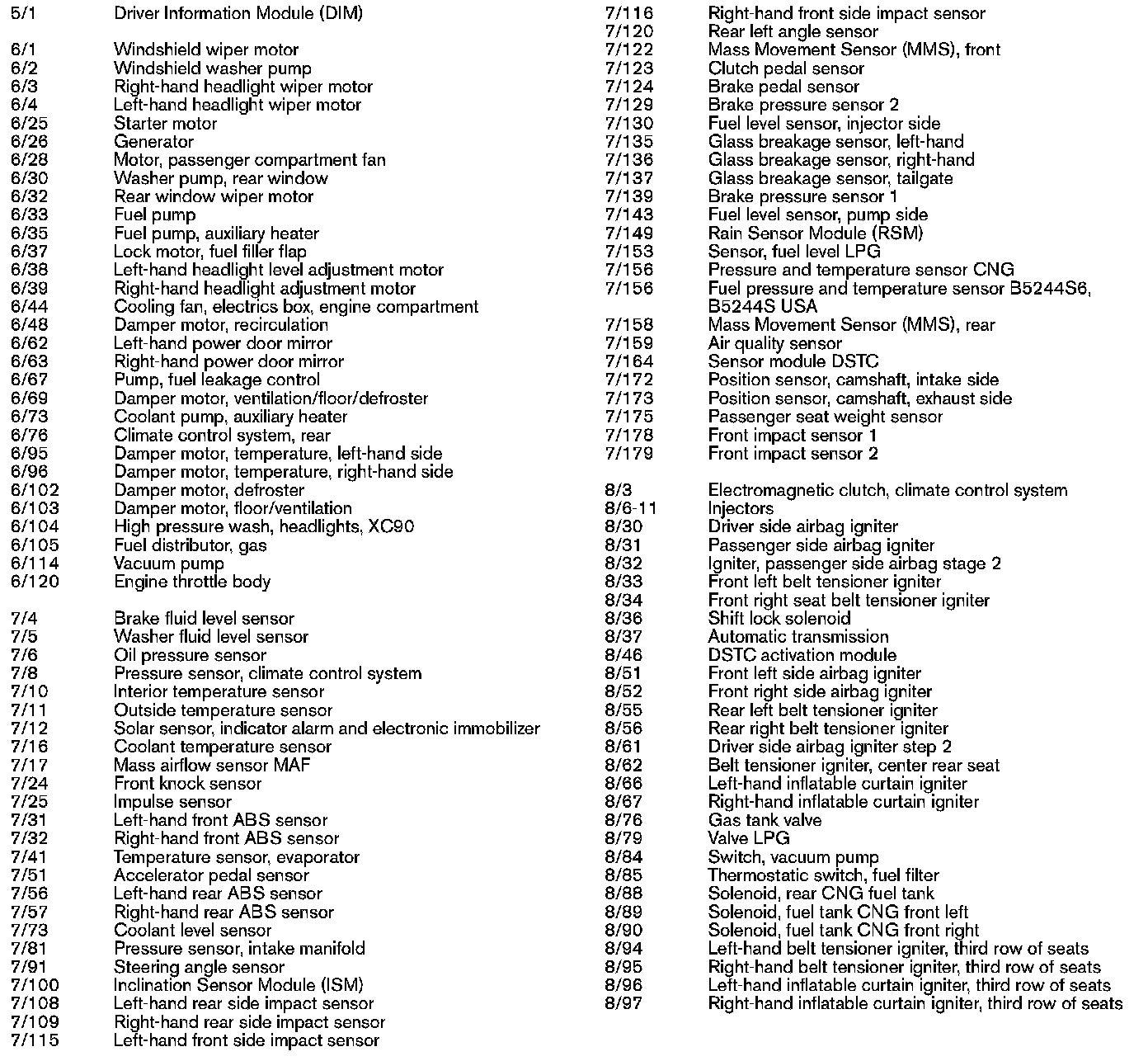

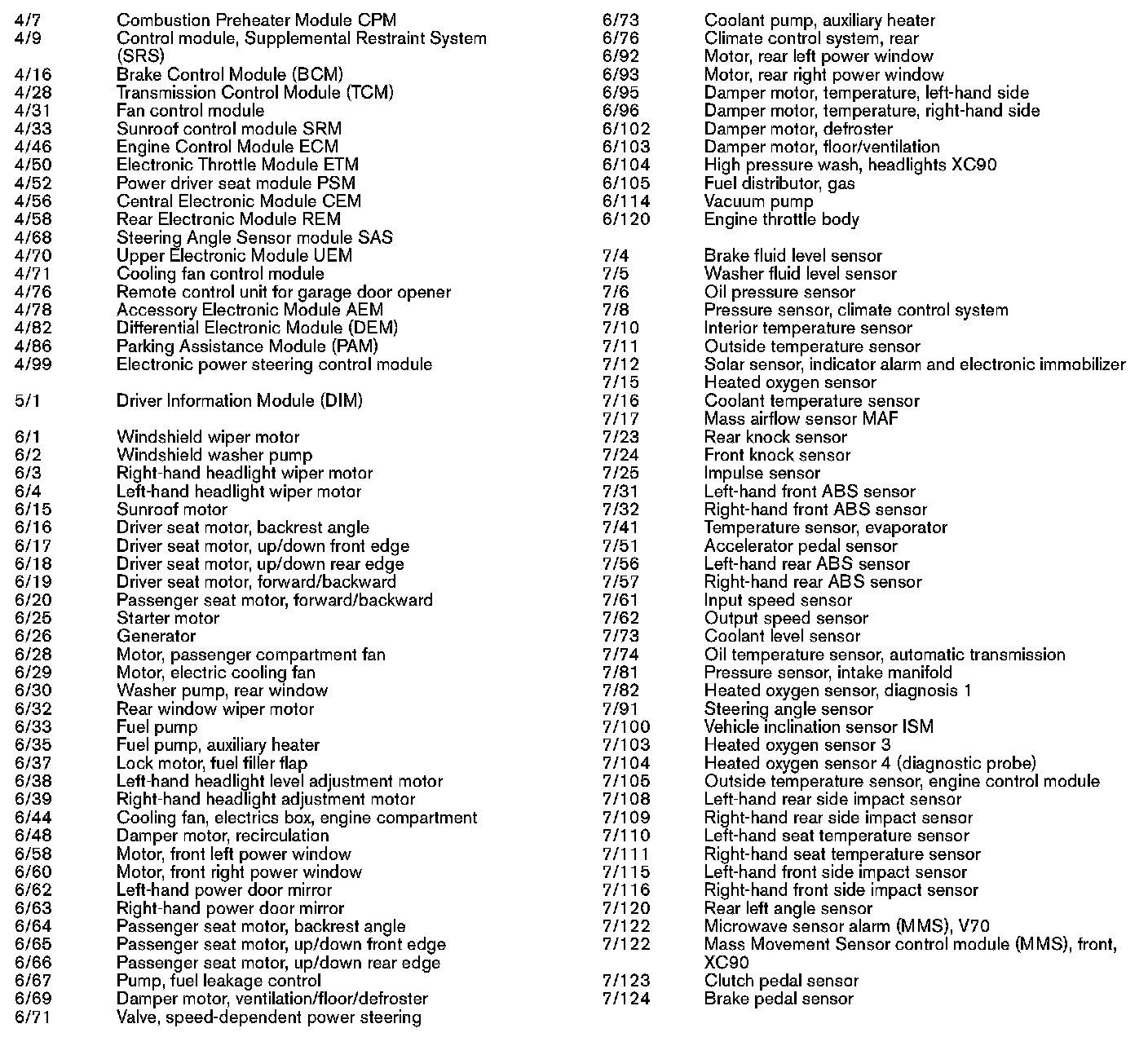

4/7 Through 7/124:

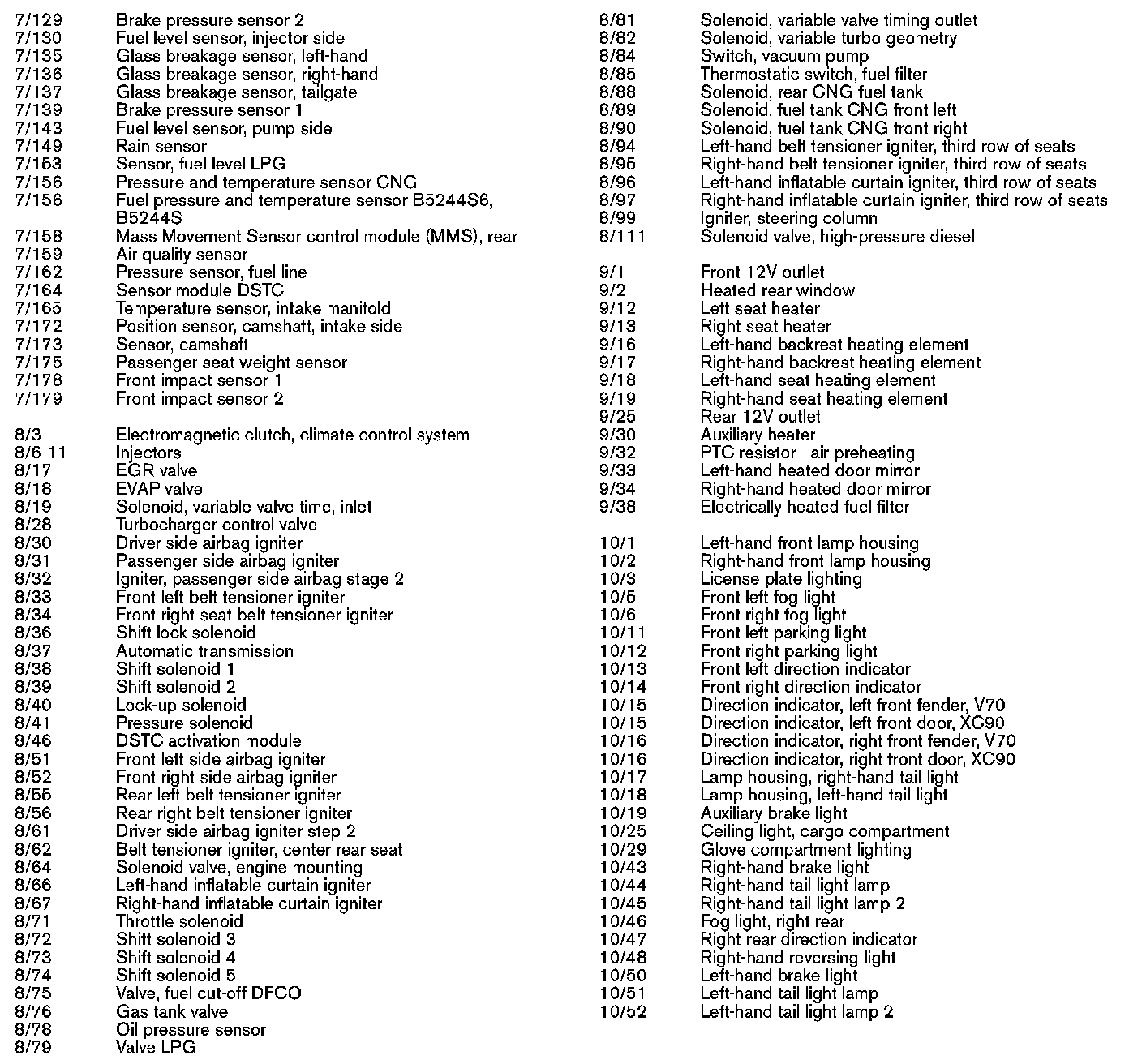

7/129 Through 10/52:

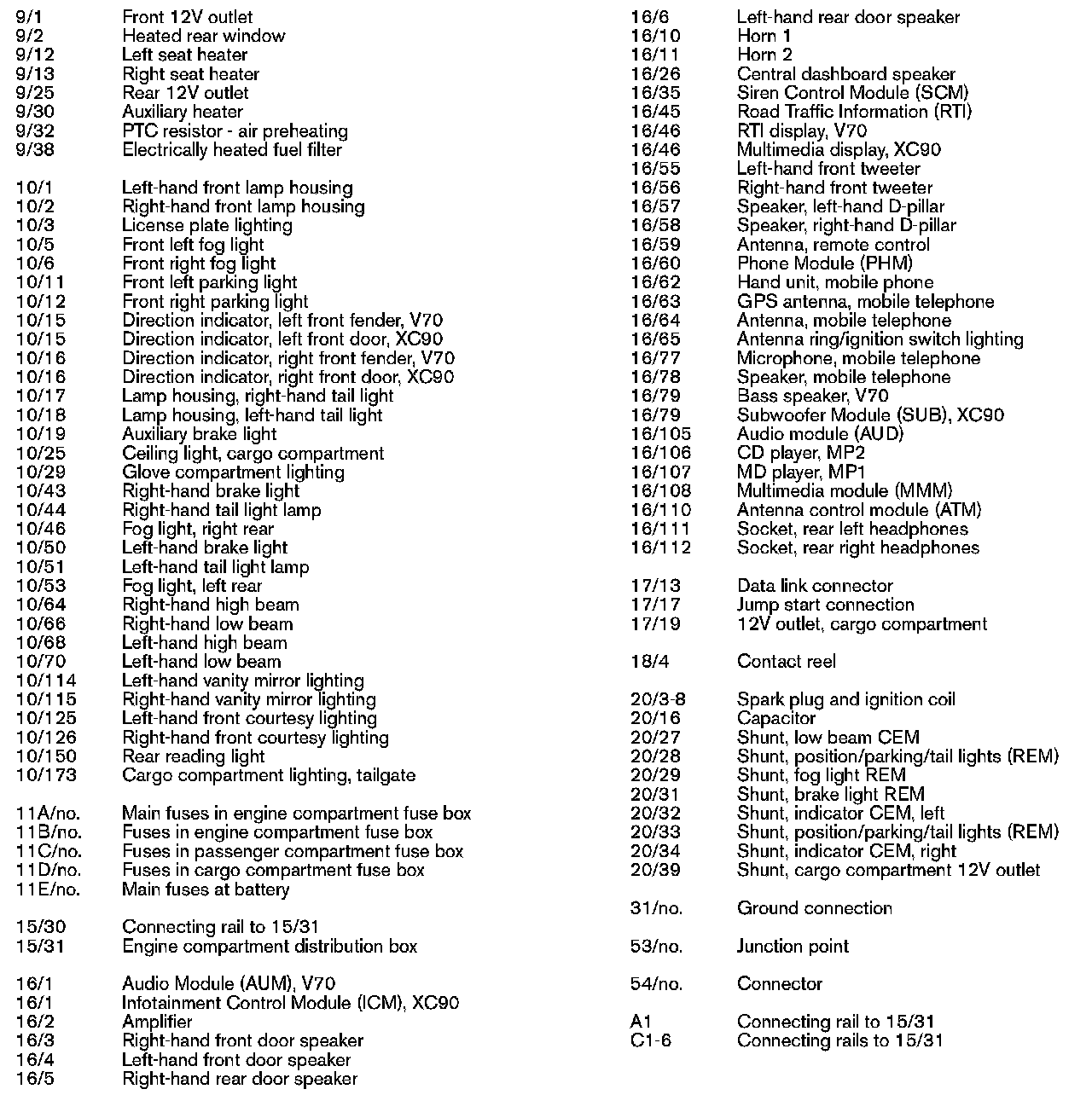

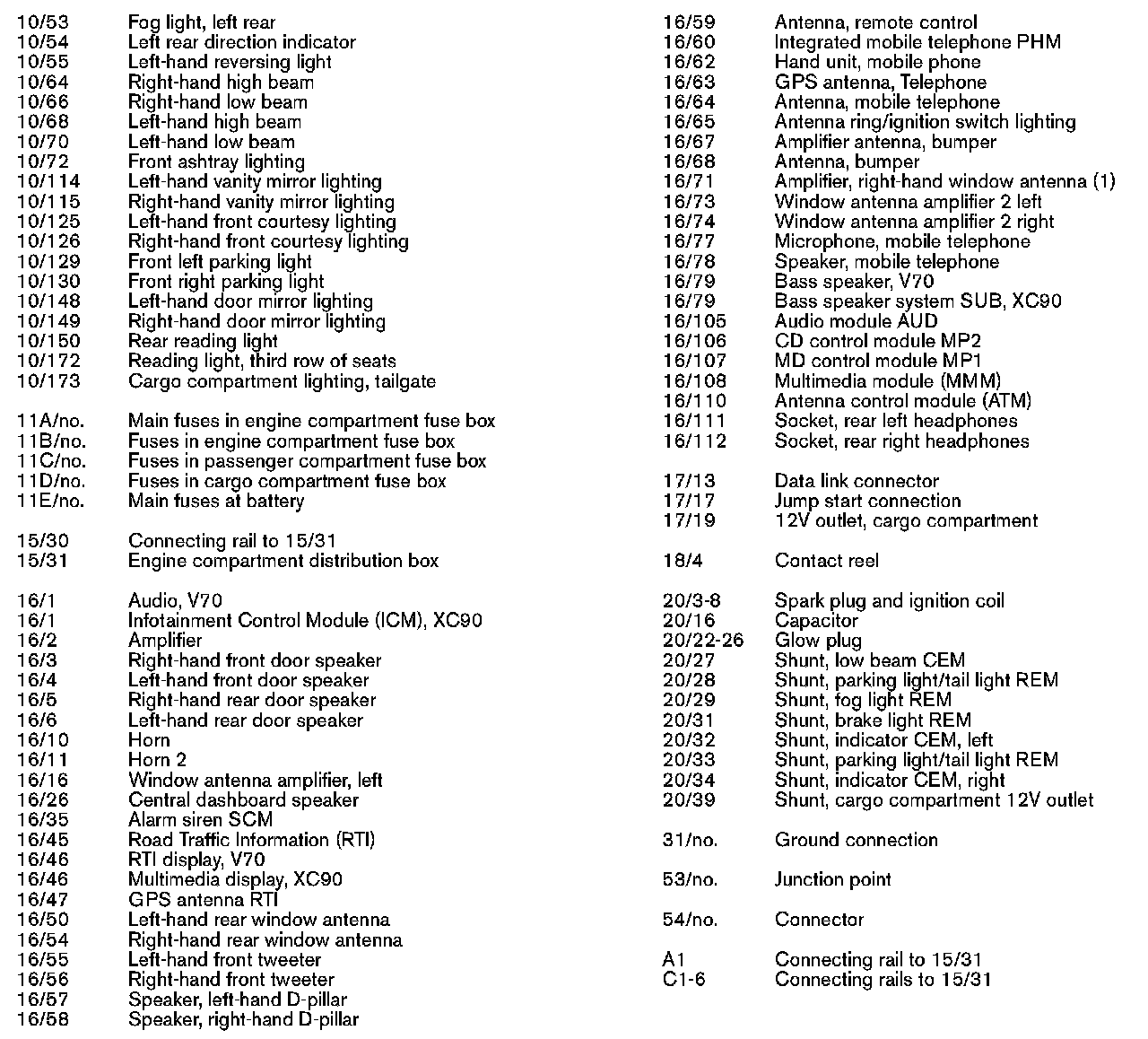

10/53 Through C1-6:






1/1 Through 4/99 (Supplement):





5/1 Through 8/97 (Supplement):





9/1 Through C1-6 (Supplement):
