Steering Angle Sensor (SAS) Module, Replacing



Steering Wheel Angle Sensor Module (SAS), Replacing

Removal

Soundproofing panel
Remove the driver's side soundproofing panel.

Control module

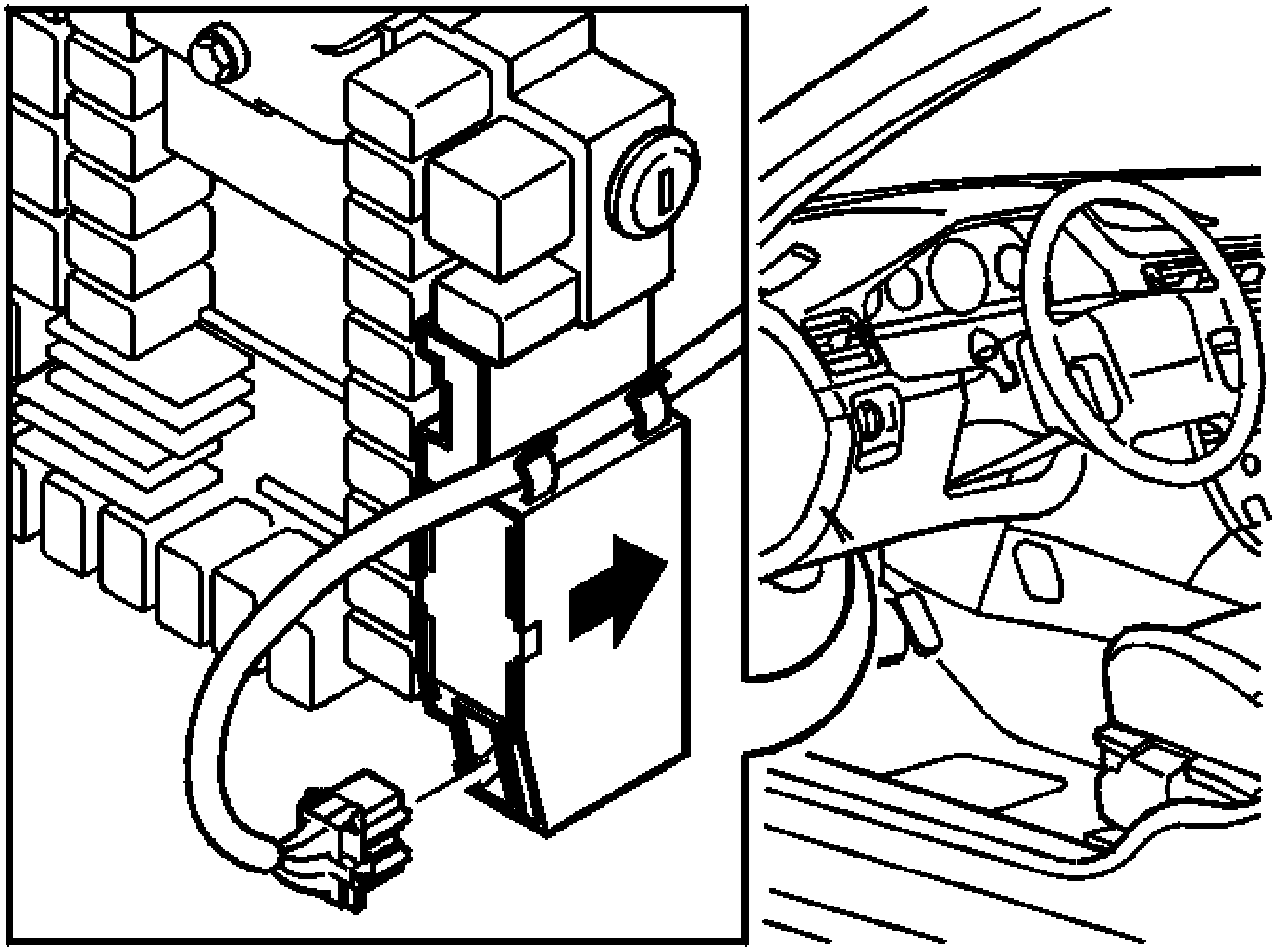

Remove the control module by pressing the 2 catches using a finger and pulling the control module backwards (see the arrow in the figure).

Remove the connector and the cable.

Installation

The control module







- Install the cable in the holder for the control module. Press the connector into place.

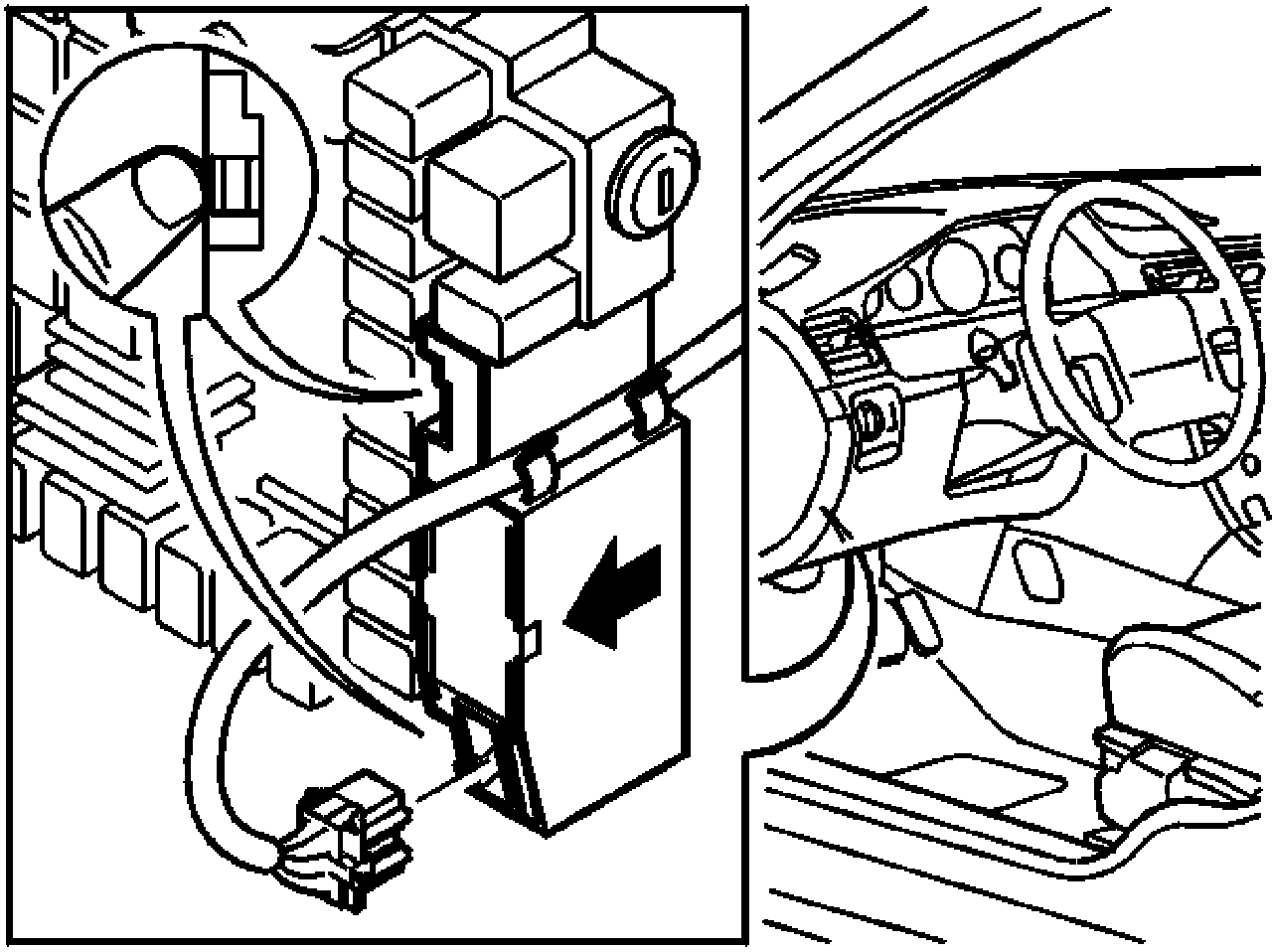

- Reinstall the control module. Press the module into place until there is an audible click.

Ordering software
Order software

Programming the steering wheel angle sensor module (SAS)
Program the new control module

The soundproofing panel
Install the driver's side soundproofing panel.
