Home >> Volvo >> 2004 >> S80 L6-2.9L VIN 92 B6294S2 >> Repair and Diagnosis >> Heating and Air Conditioning >> Solar Sensor >> Service and Repair

Solar Sensor: Service and Repair






Sun sensor / alarm LED, replacing

Removal

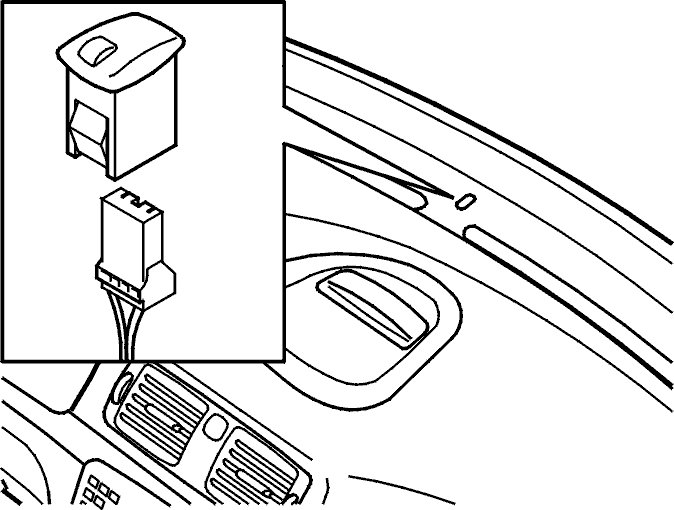

Sun sensor and alarm LED




- Remove the sun sensor and alarm LED. Use a weatherstrip tool
- Disconnect the connector.

Installation

Sun sensor and alarm LED
Install in reverse order.
