Home >> Volvo >> 2000 >> S70 L5-2.4L VIN 61 B5244S >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module

Engine Control Module

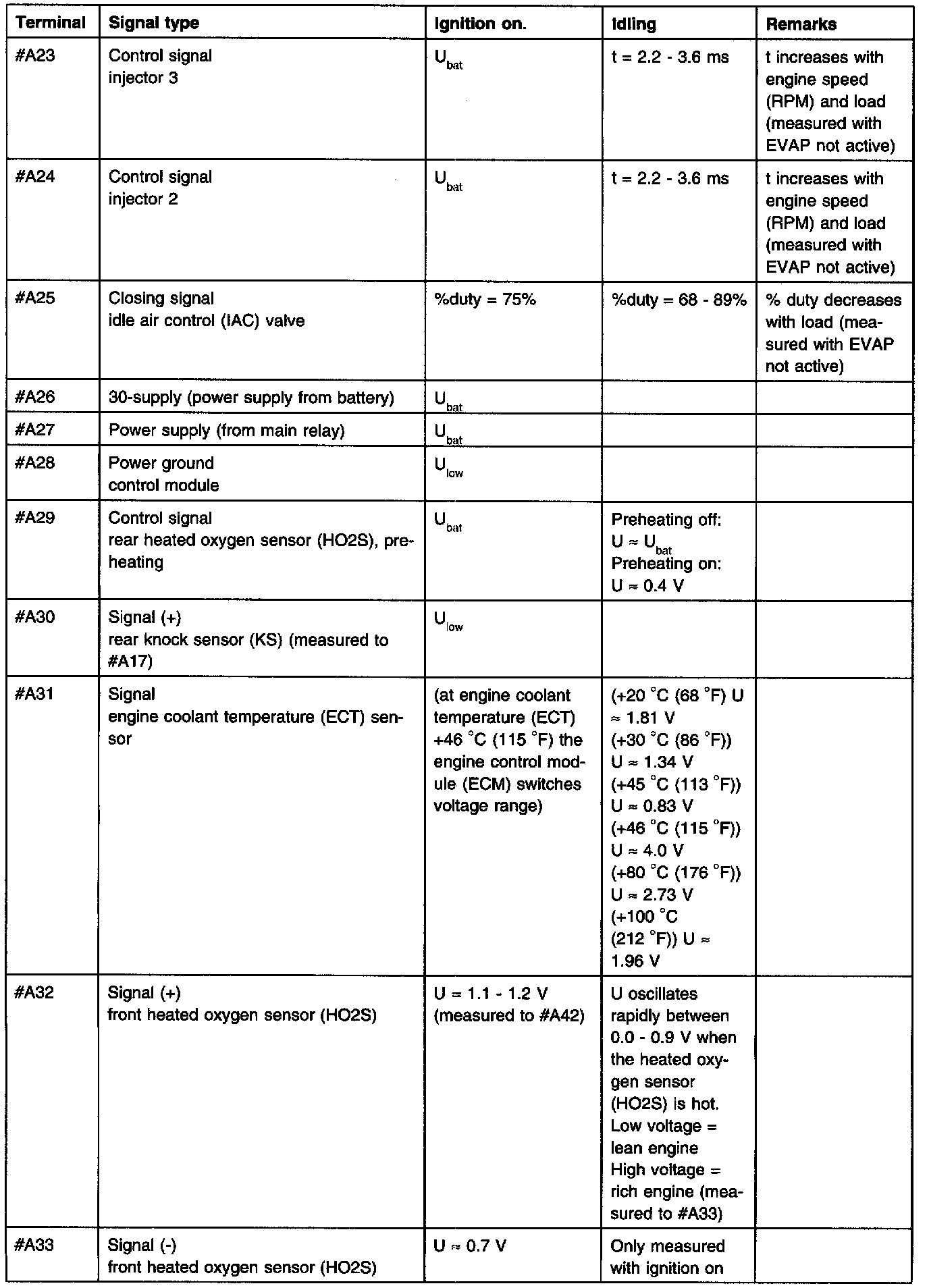

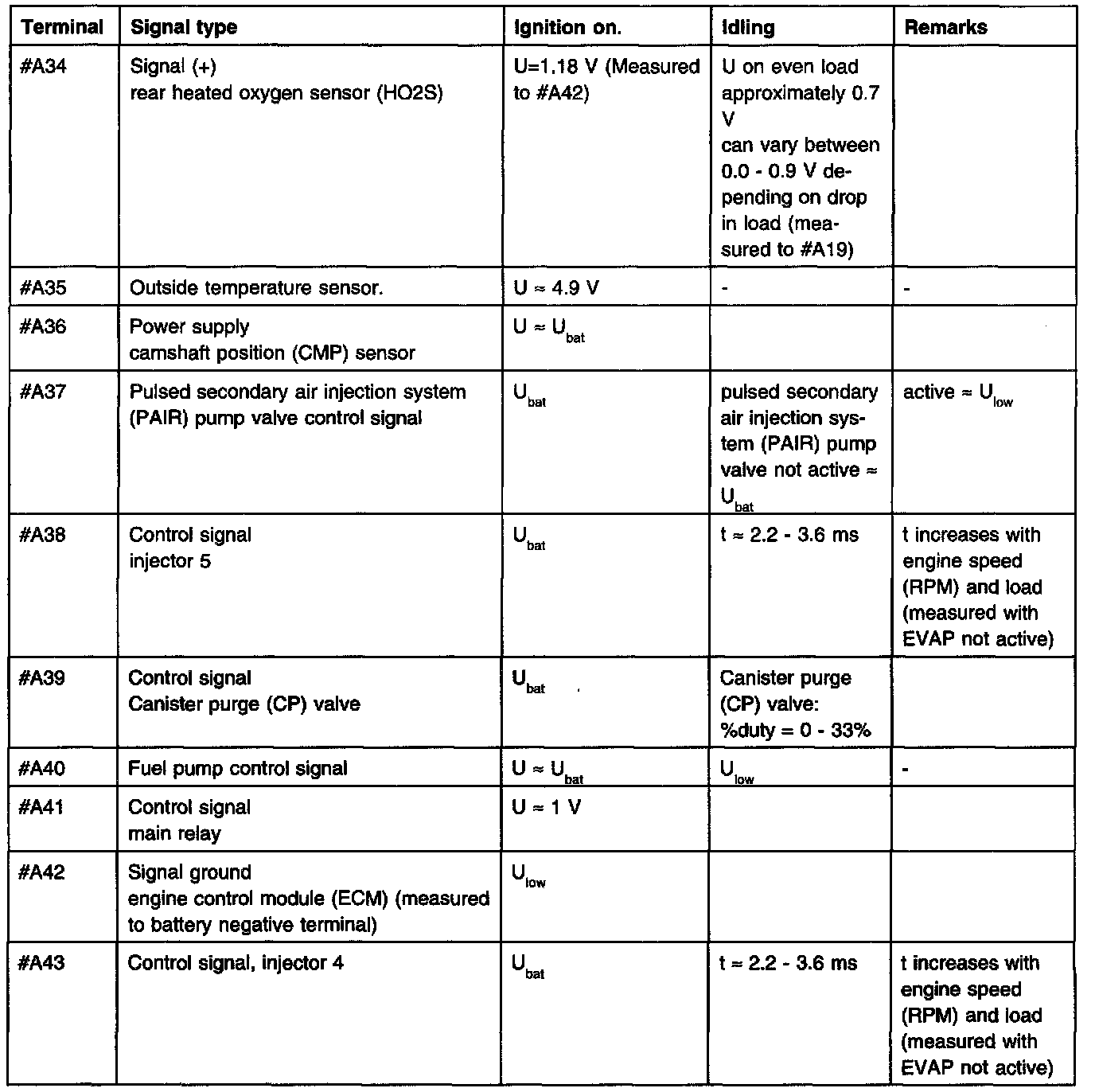

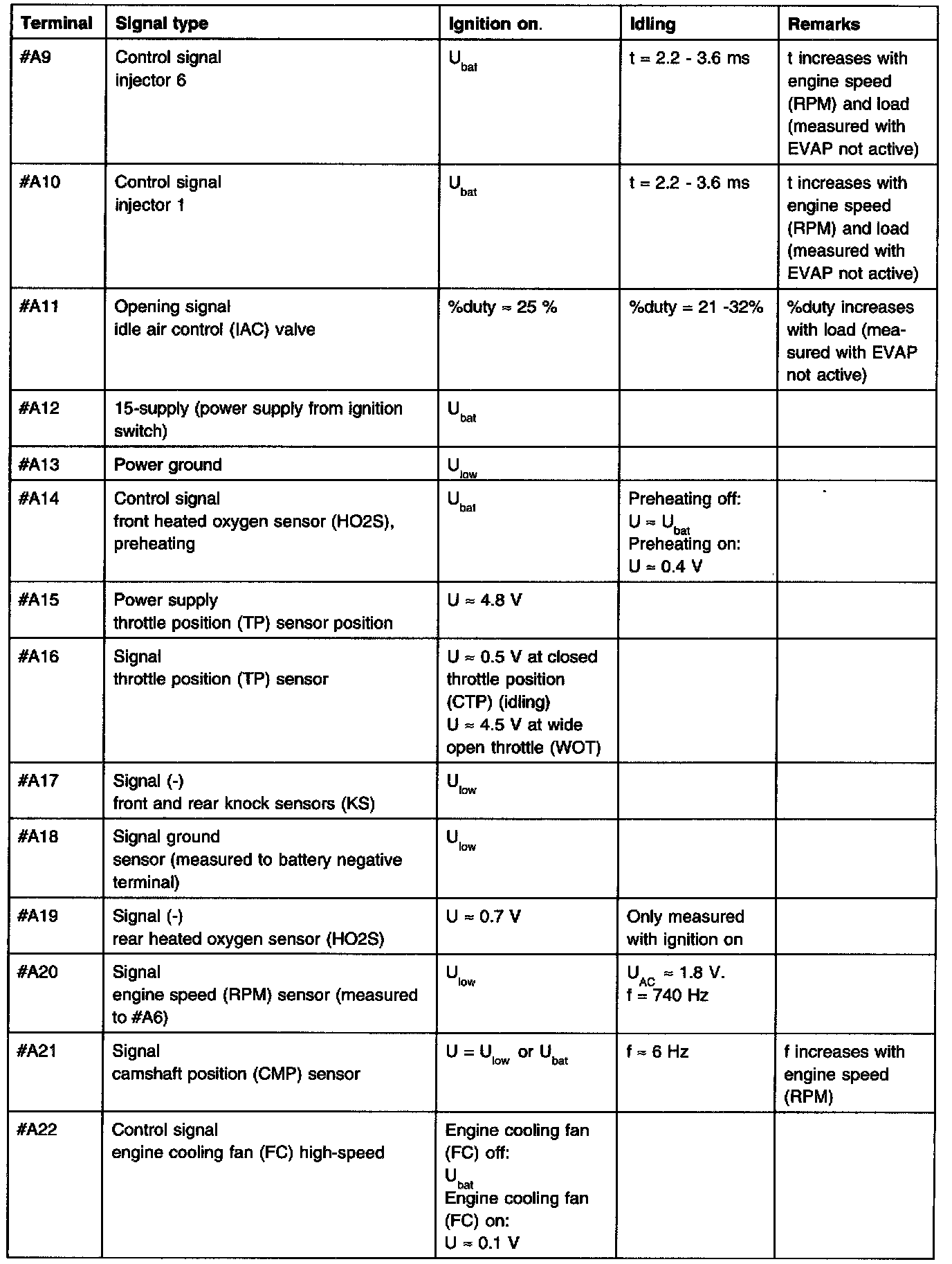

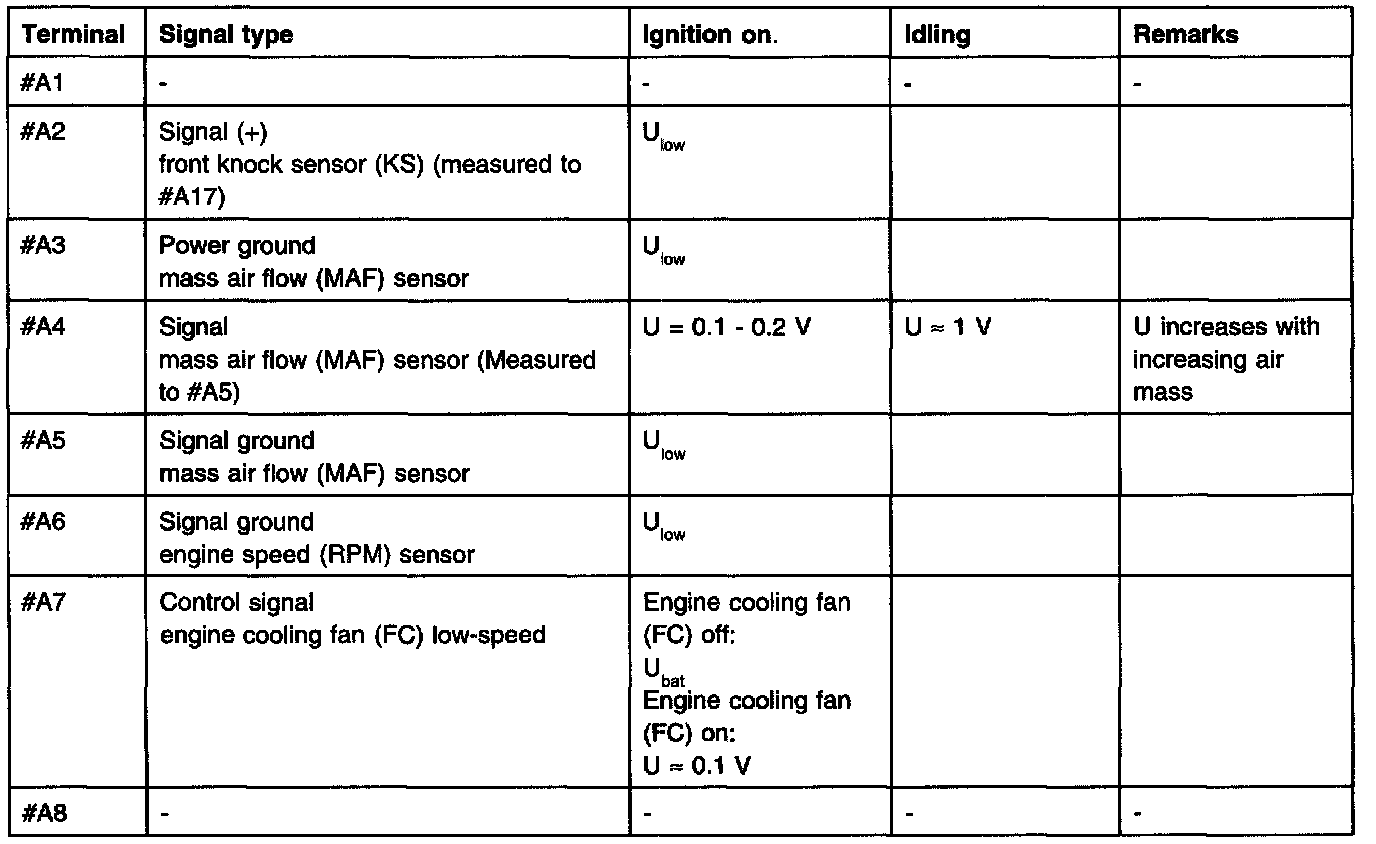

Connector A:

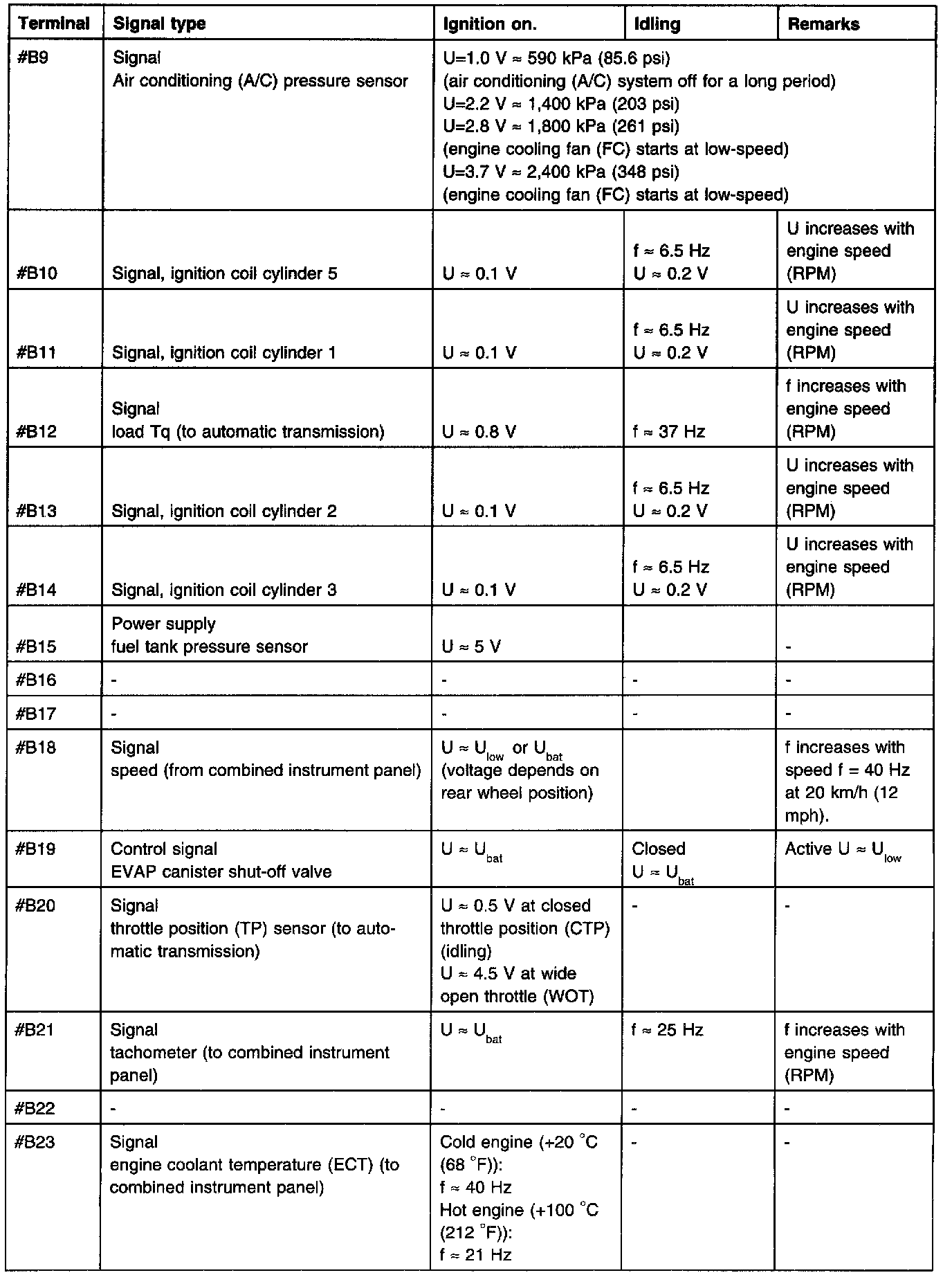

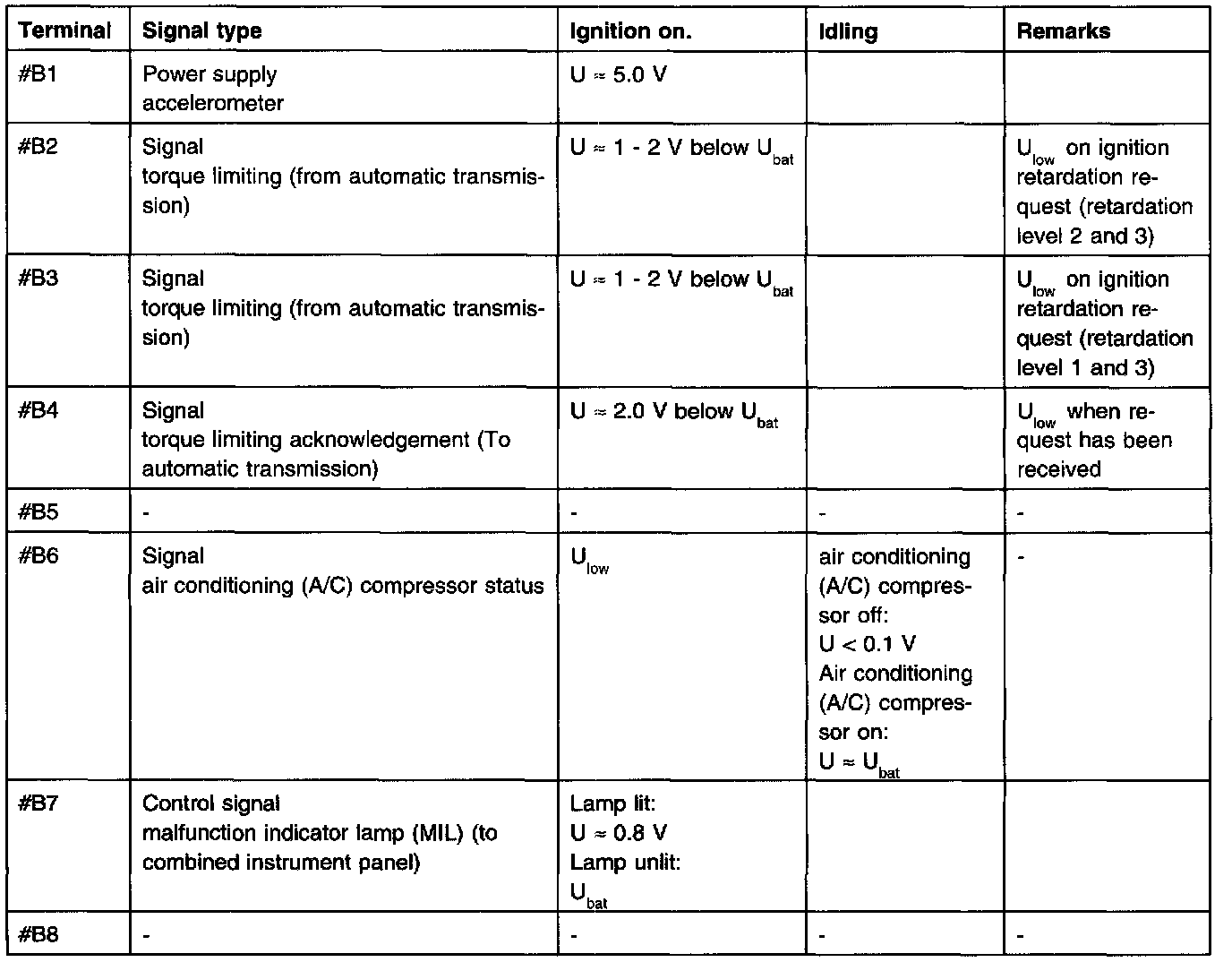

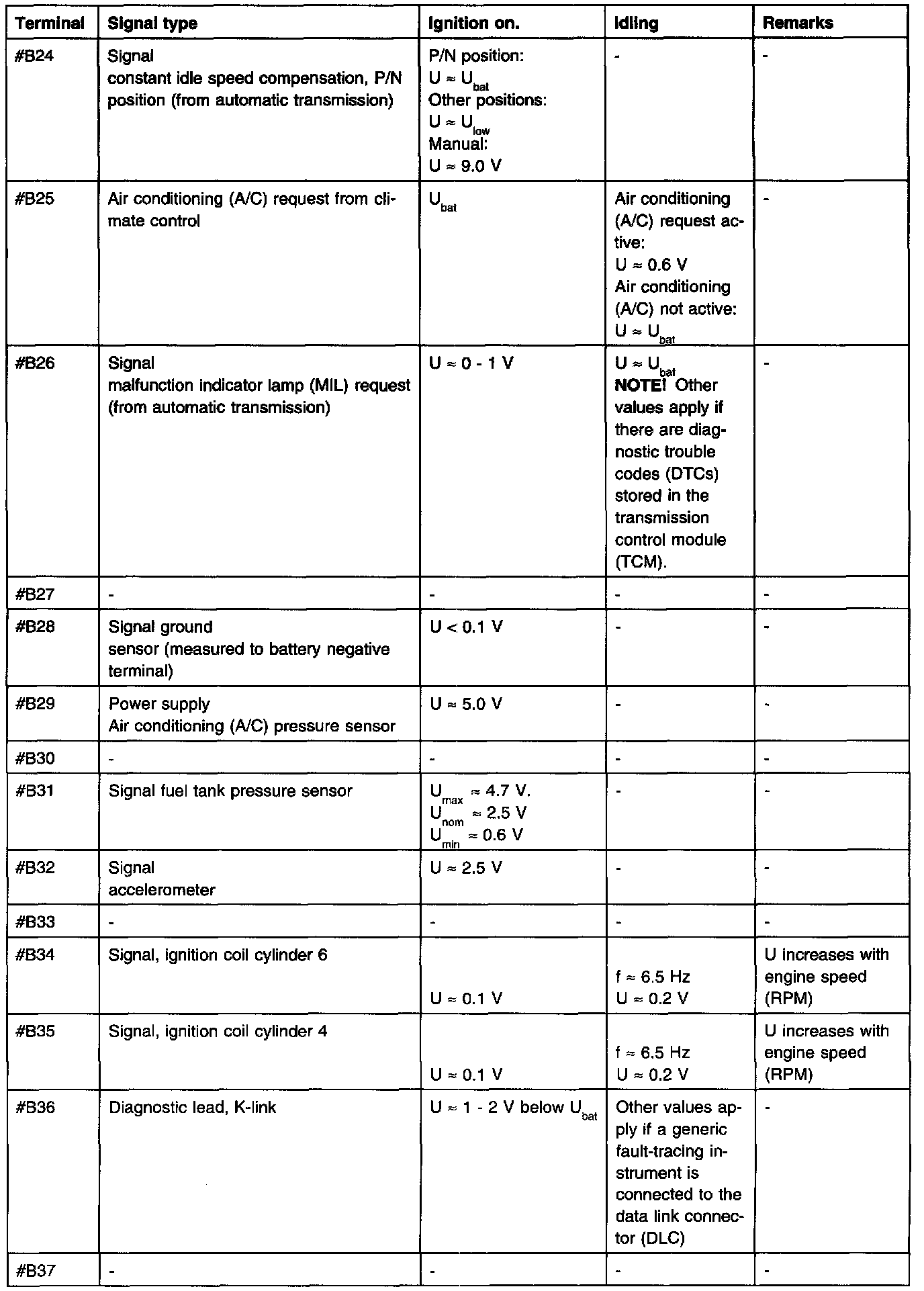

Connector B:
