Home >> Volvo >> 1982 >> 260 V6-2849cc 2.8L SOHC B28F >> Repair and Diagnosis >> Diagrams >> Components >> Engine Starting Service Socket

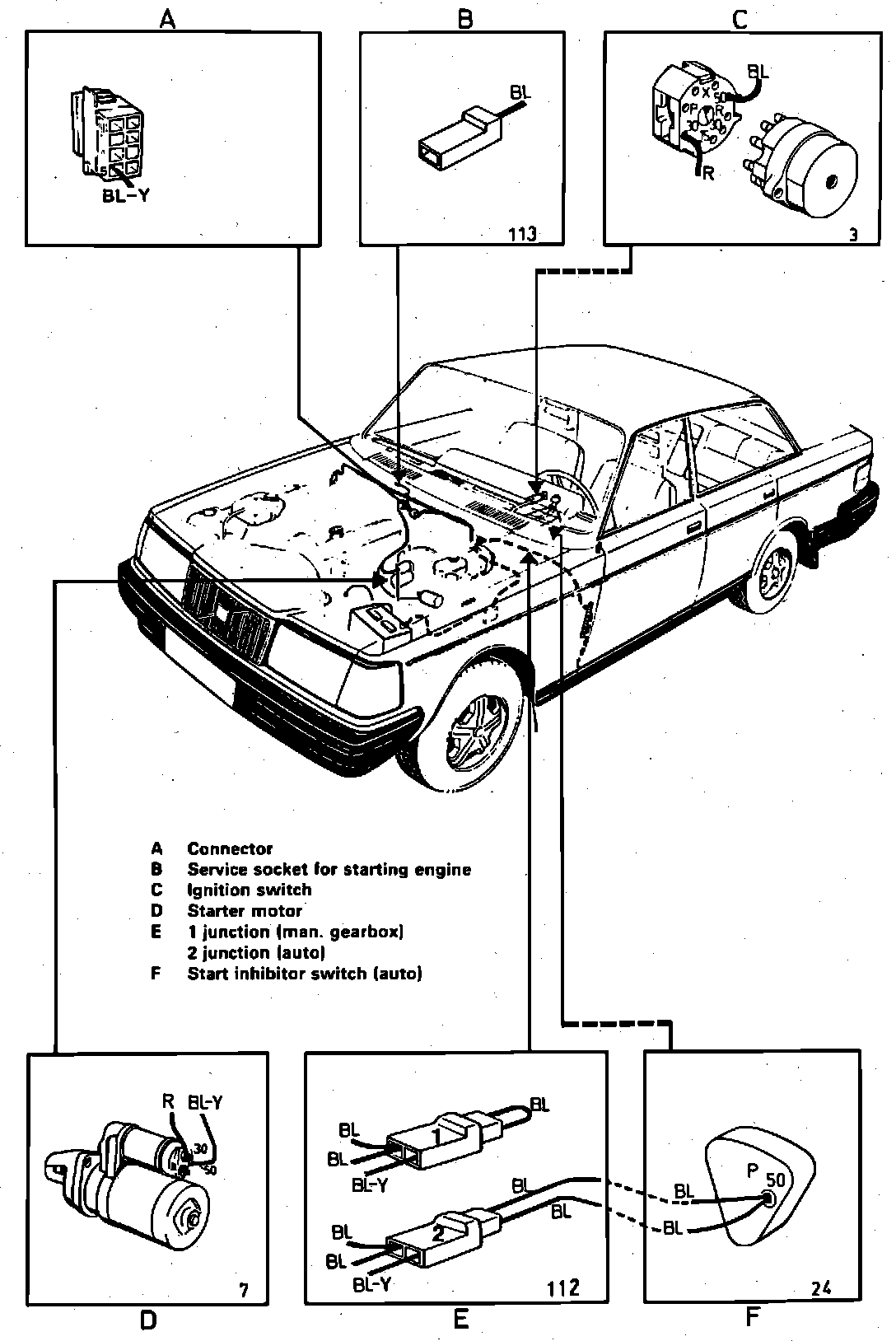

Engine Starting Service Socket

Starting System Components.:




Rear RH Side Of Engine Compartment

Applicable to: 240 Models
