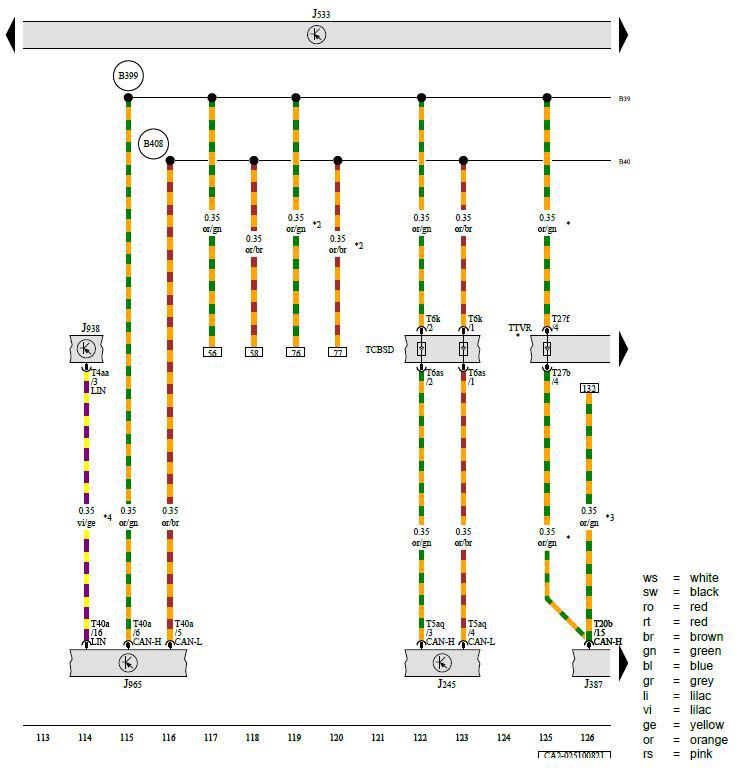

Sunroof Control Module, Front Passenger Door Control Module, Power Rear Lid Opening Control Module, Access/ Start System Interface
J245 - Sunroof Control Module
J387 - Front Passenger Door Control Module
J533 - Data Bus on Board Diagnostic Interface
J938 - Power Rear Lid Opening Control Module
J965 - Access/Start System Interface
T4aa - 4-Pin Connector, Black
T5aq - 5-Pin Connector, Black
T6as - 6-Pin Connector, Black
T6k - 6-Pin Connector, Black
T20b - 20-Pin Connector, Black
T27b - 27-Pin Connector, Black
T27f - 27-Pin Connector, Black
T40a - 40-Pin Connector, Black
TCBSD - CAN Bus Sunroof Coupling Point
TTVR - Right Front Door Coupling Point
B399 - Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)
B408 - Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)
* - For Vehicles without Peripheral Camera
*2 - For Vehicles with Trailer Setup
*3 - For Vehicles with Peripheral Camera
*4 - For Vehicles with Sensor-Controlled Power Rear Lid Opening
