Transmission Position Sensor/Switch: Adjustments

Multifunction Transmission Range Switch, Adjusting

Special tools, testers and auxiliary items required

• Setting Gauge (T10173)

- Move the selector lever into the "N" position.

- Do not bend the selector lever cable.

Adjustment Prerequisites

• The selector lever cable is disconnected from the selector shaft lever

• The selector shaft is in the "N" position.

• The bolts for the multifunction transmission range switch have been loosened.

• The selector shaft lever is removed.

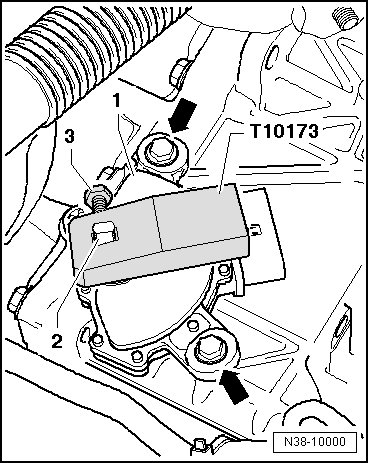

- Install the setting gauge (T10173) onto the selector shaft - 2 - and turn the multifunction switch - 1 - just until the setting gauge locks onto the tab on the multifunction switch connector.






- Use the bolt - 3 - to secure the setting gauge to the selector shaft - 2 -.

- Tighten the multifunction switch bolts - arrows - to 6 Nm.

- Remove the setting gauge.

- Further installation is performed in the reverse order.
