Volkswagen
>>
2012
>>
Golf (5K1) L5-2.5L (CBUA)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Ride Height Sensor, Suspension Control
>>
LR Level Control System Sensor -G76-
LR Level Control System Sensor -G76-

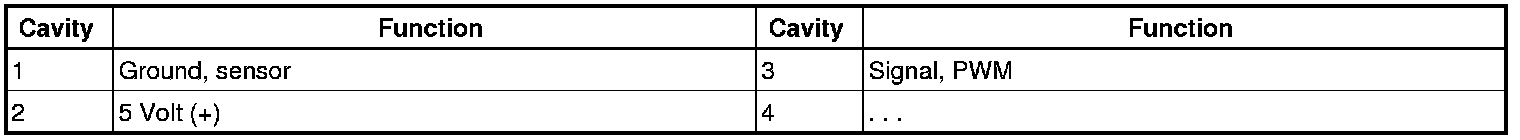

Level Control System - Connector Views

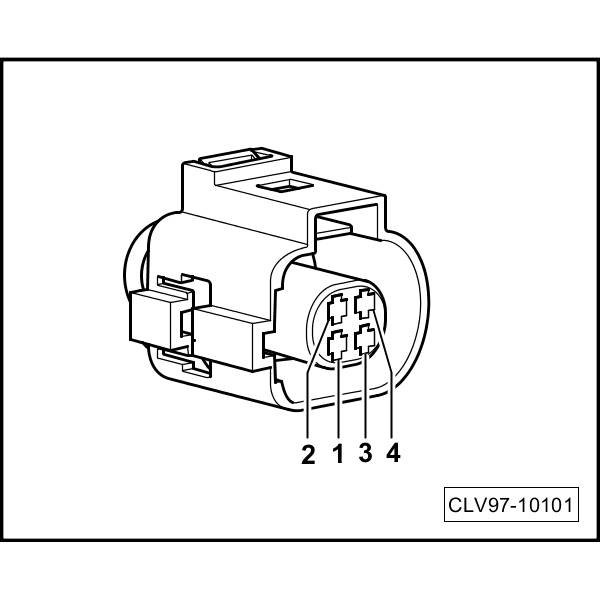

Left rear level control system sensor -G76-
