Engine Speed Sensor






Engine Management System - Connector Views

Engine speed sensor -G28-

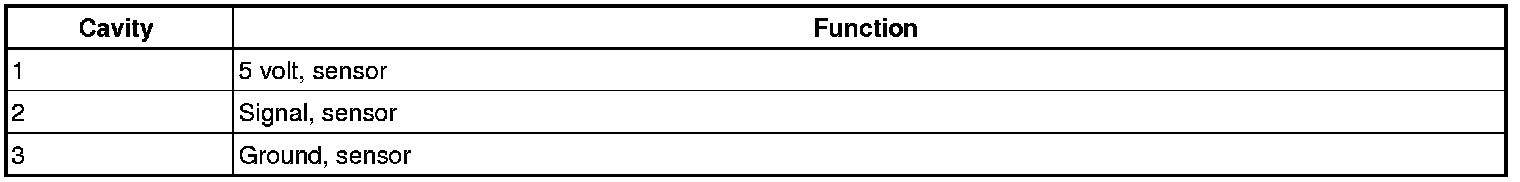

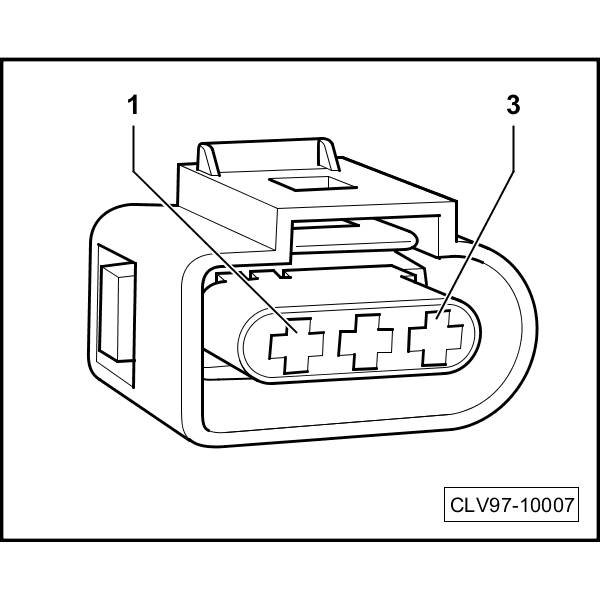

TDI and 2.5L engines

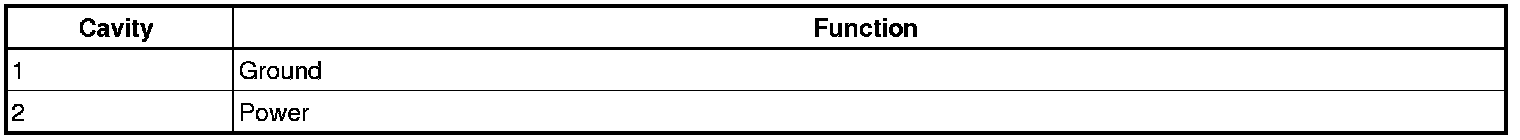

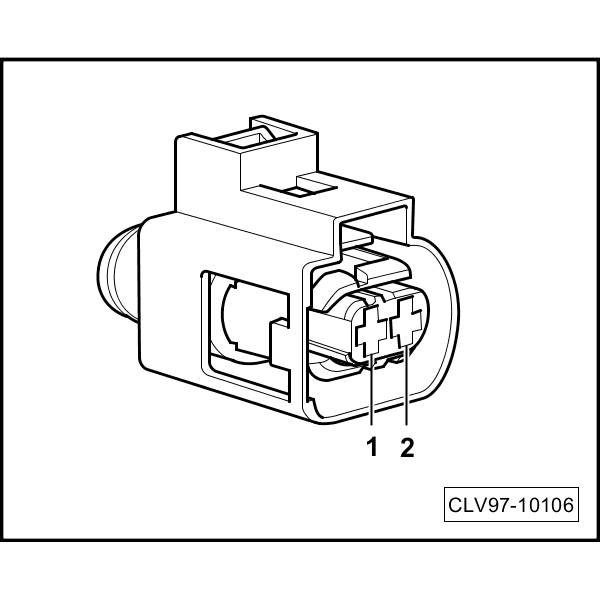

2.0L engines
