Access/Start Authorization Overview

Access/Start Authorization Overview

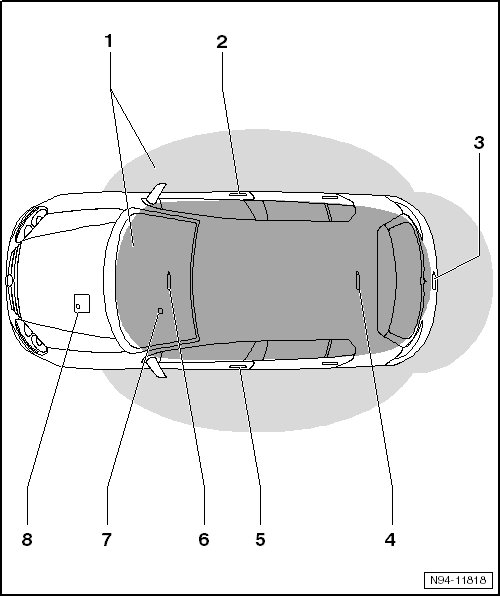

1 - Antenna Contact Point Coverage Area

2 - Front Passenger Exterior Door Handle

The following components are integrated in front passenger exterior door handle:

• Front passenger exterior door handle touch sensor (G416).

• Right access/start authorization antenna (R135).

Removing and installing passenger-side outside door handle, refer to => [ Passenger Outside Door Handle ] Passenger Outside Door Handle.

• Checking the front passenger access/start authorization antenna (R135) => [ Front Passenger Access/Start Authorization Antenna (R135) ] Front Passenger Access/Start Authorization Antenna (R135).

• Checking the front passenger exterior door handle touch sensor (G416) => [ Front Passenger Outside Door Handle Touch Sensor (G416) ] Front Passenger Outside Door Handle Touch Sensor (G416).

3 - Access/Start Authorization Antenna In Rear Bumper (R136)

• Component location: Behind the rear bumper cover.

• Removing and installing, refer to => [ Access/Start Authorization Antenna In Rear Bumper (R136) ] Access/Start Authorization Antenna In Rear Bumper (R136).

• Checking the access/start authorization antenna in rear bumper (R136) => [ Access/Start Authorization Antenna In Rear Bumper (R136) ] Access/Start Authorization Antenna In Rear Bumper (R136).

4 - Luggage Compartment Access/Start Authorization Antenna (R137)

• Component location: In the center of the luggage compartment in front of the spare wheel well.

• Removing and installing, refer to => [ Luggage Compartment Access/Start Authorization Antenna (R137) ]Luggage Compartment Access/Start Authorization Antenna (R137) .

• Checking the access/start authorization antenna in luggage compartment (R137) => [ Luggage Compartment Access/Start Authorization Antenna (R137) ] Luggage Compartment Access/Start Authorization Antenna (R137).

5 - Driver Side Outside Door Handle

The following components are integrated in driver side outside door handle:

• Driver exterior door handle touch sensor (G415).

• Left access/start authorization antenna (R134).

• Removing and installing driver-side outside door handle, refer to => [ Driver Outside Door Handle ] Driver Outside Door Handle.

• Checking the driver exterior door handle touch sensor (G415) => [ Driver Exterior Door Handle Touch Sensor (G415) ] Driver Exterior Door Handle Touch Sensor (G415).

• Checking the driver access/start authorization antenna (R134) => [ Driver Access/Start Authorization Antenna (R134) ] Driver Access/Start Authorization Antenna (R134).

6 - Interior Access/Start Authorization Antenna 1 (R138)

• Component location: Under the center console in front of the selector lever.

• Removing and installing, refer to => [ Access/Start Authorization Antenna 1 in Vehicle Interior (R138) ] Access/Start Authorization Antenna 1 in Vehicle Interior (R138).

• Checking the access/start authorization antenna 1 in vehicle interior (R138) => [ Interior Access/Start Authorization Antenna 1 (R138) ] Interior Access/Start Authorization Antenna 1 (R138).

7 - Start System Button (E378)

• Removing and installing, refer to => [ Start System Button (E378) ] Service and Repair.

8 - Access/Start Authorization Control Module (J518)

• Component location: inside the driver footwell above the brake pedal.

• Removing and installing, refer to => [ Access/Start Authorization Control Module (J518) ] Description and Operation.

• Coding the access/start authorization control module (J518) => [ Access/Start Authorization Control Module (J518), Coding ] Access/Start Authorization Control Module (J518), Coding.
