Entertainment System Control Module: Service and Repair

Multimedia Control Module

Removing

Special tools, testers and auxiliary items required

• Radio Release Tool (T10057)

The Multi Media control module is installed inside the storage compartment in the center armrest.

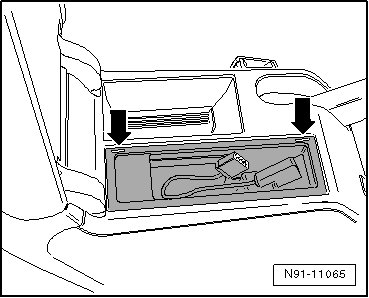

- Insert the (T10057) into the openings - arrows - until it engages.

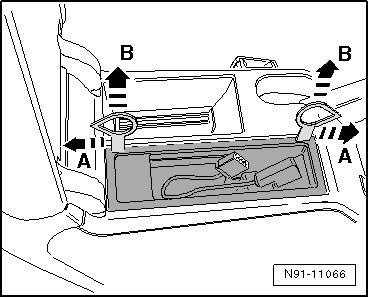

- Press the tools in direction - A - and pull the control module in direction - B -.

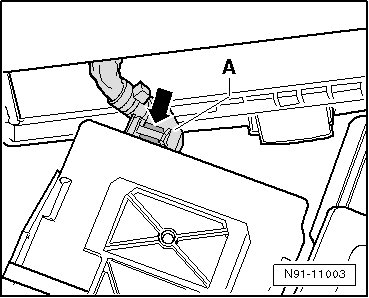

- Release the connector - arrow - and pull the connector - A - off the control module.






Installing

Install in reverse order of removal.
