Suspension Control Module
Suspension Control Module
Suspension System - Connector Views

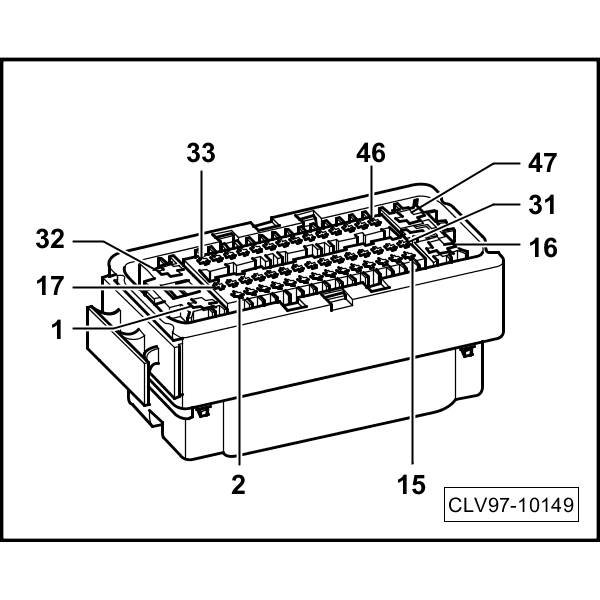

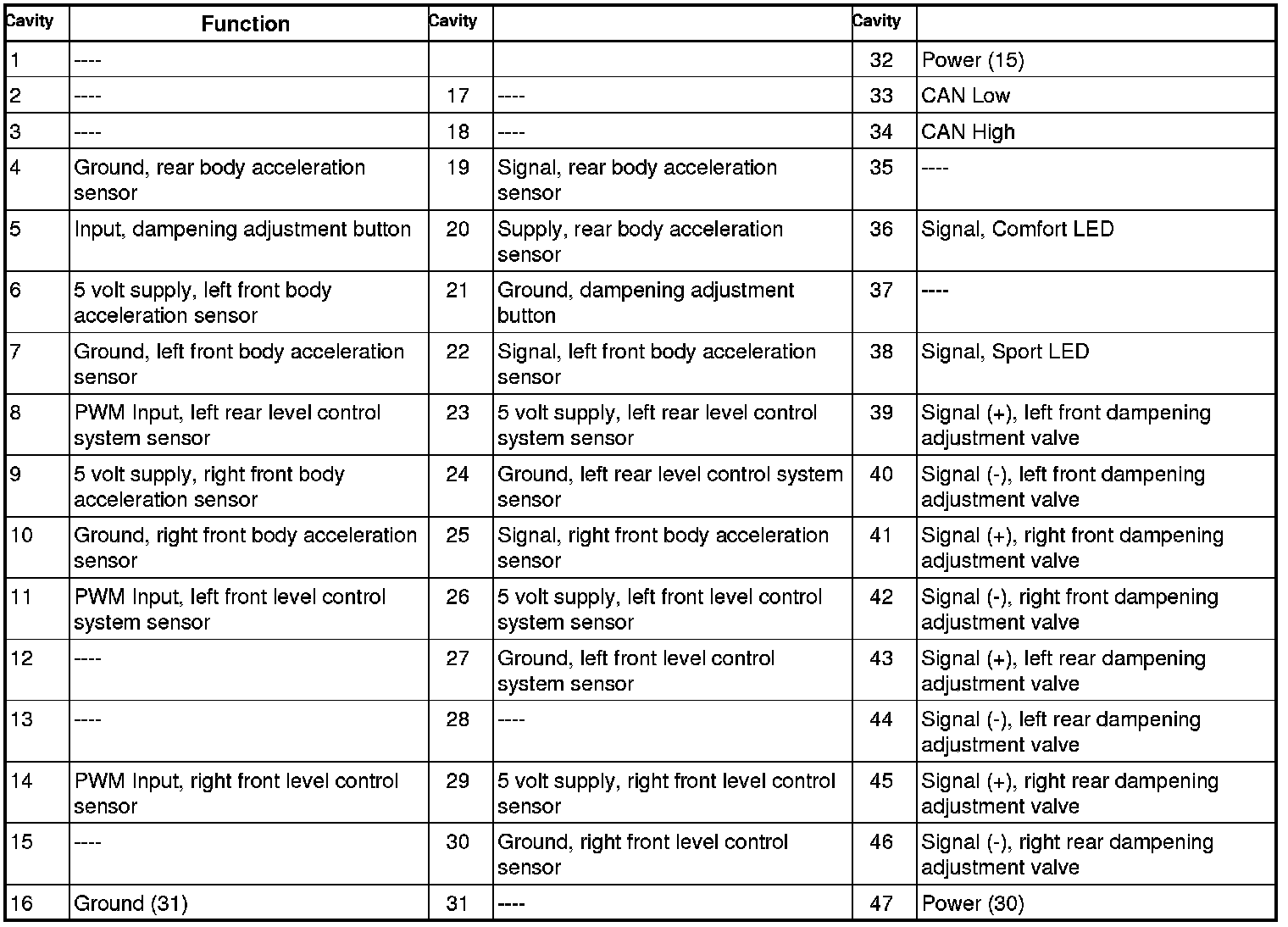

Electronic damping control module -J250-
