CC 4Motion (357) V6-3.6L (BLV)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

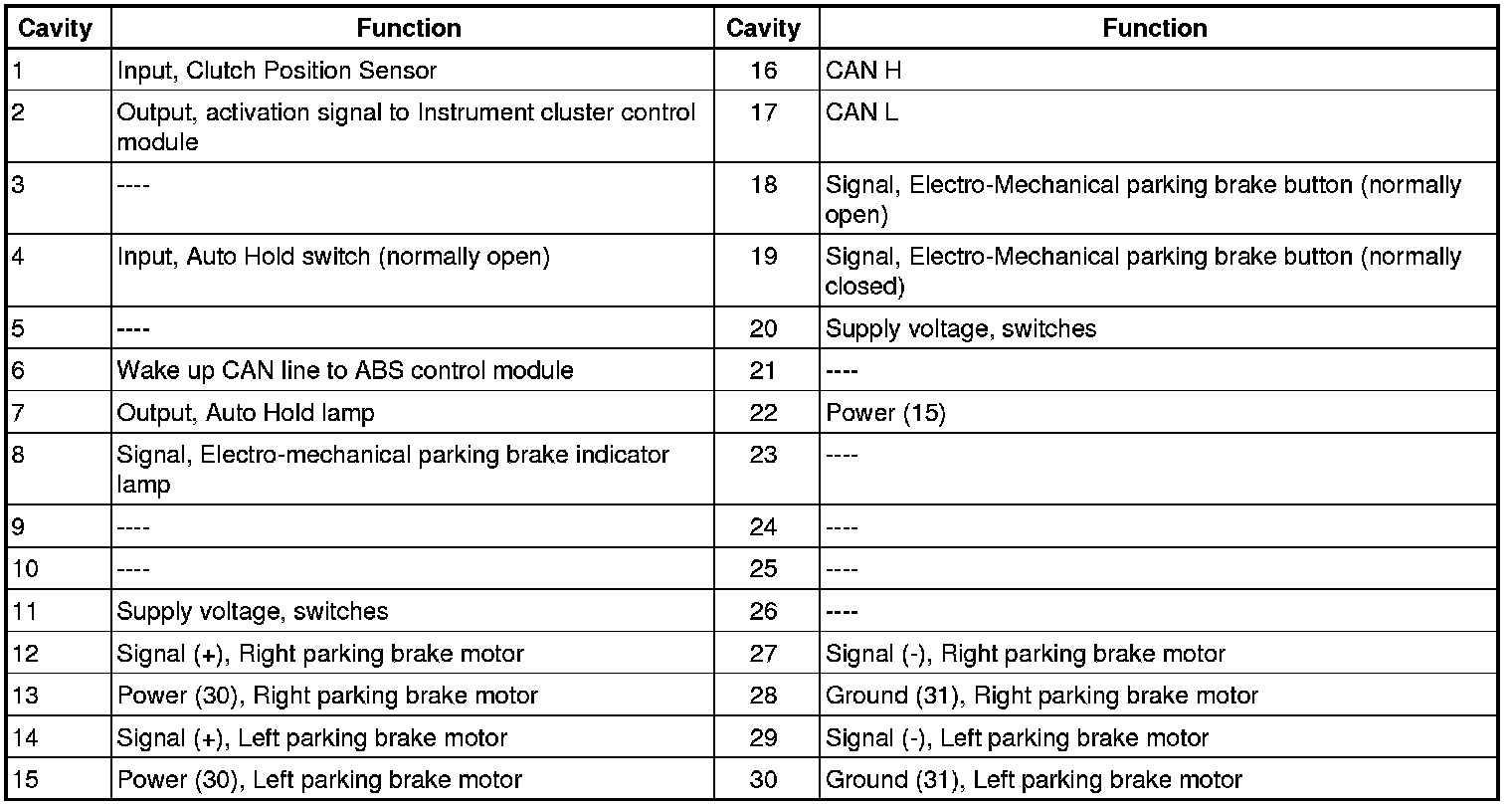

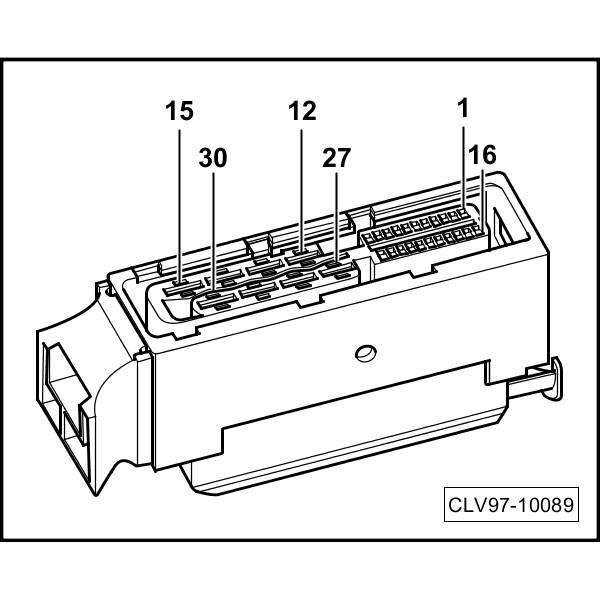

Parking Brake Control Module
Parking Brake Control Module
Parking Systems - Connector Views
Electromechanical
parking brake control module
-J540-
