CC 4Motion (357) V6-3.6L (BLV)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Electronic Brake Control Module
Electronic Brake Control Module

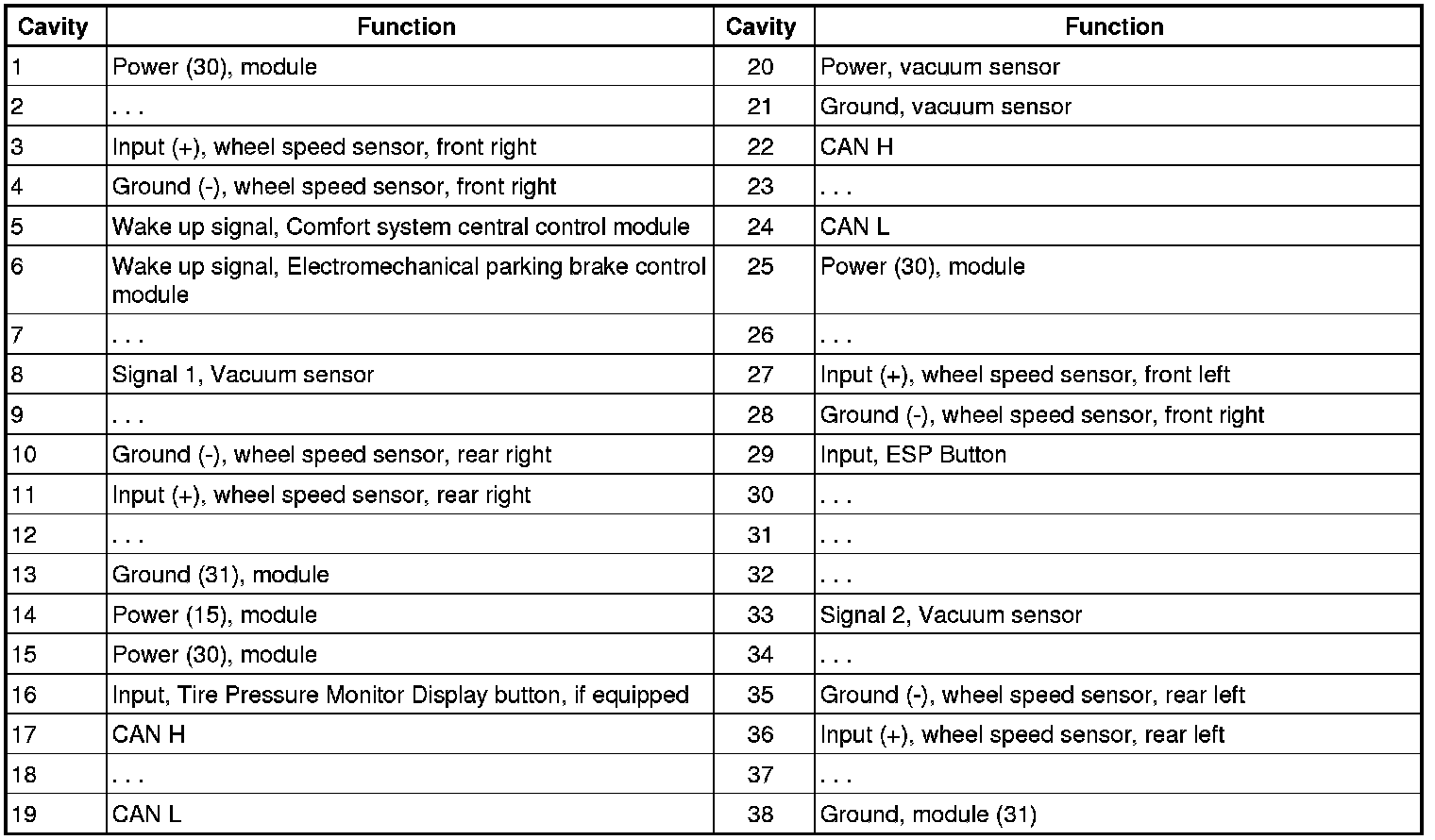

Anti-Lock Brake System - Connector Views

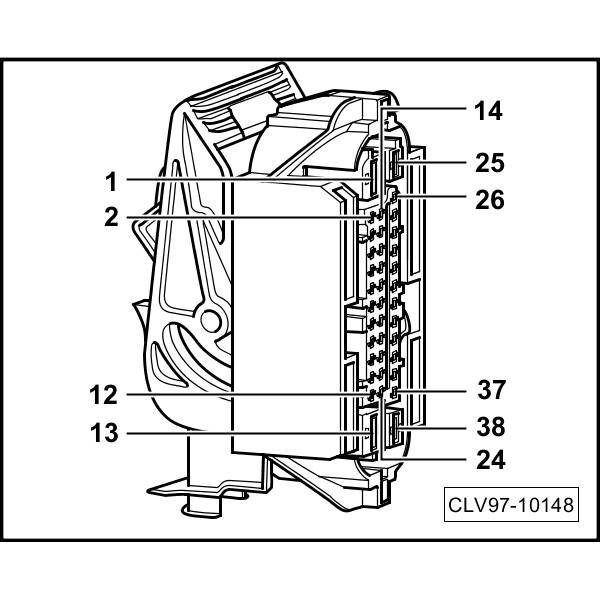

ABS control module -J104-
