Body Control Module






Access/Start Authorization System - Connector Views

Comfort system central control module -J393-

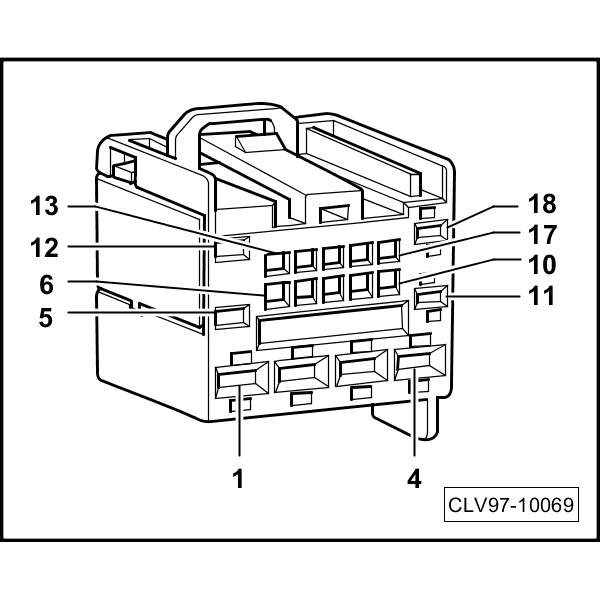

18 Pin Connector

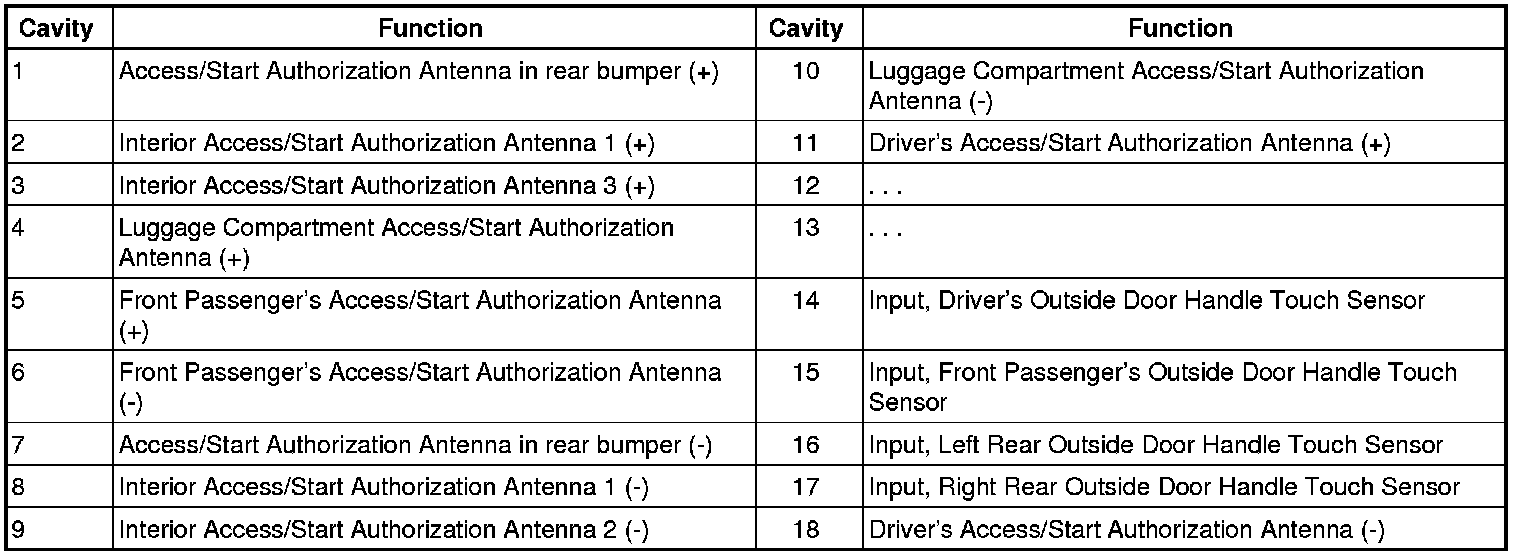

18 Pin Connector
