CC 4Motion (357) V6-3.6L (BLV)
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Control Module
Air Bag Control Module
Airbag Systems - Connector Views

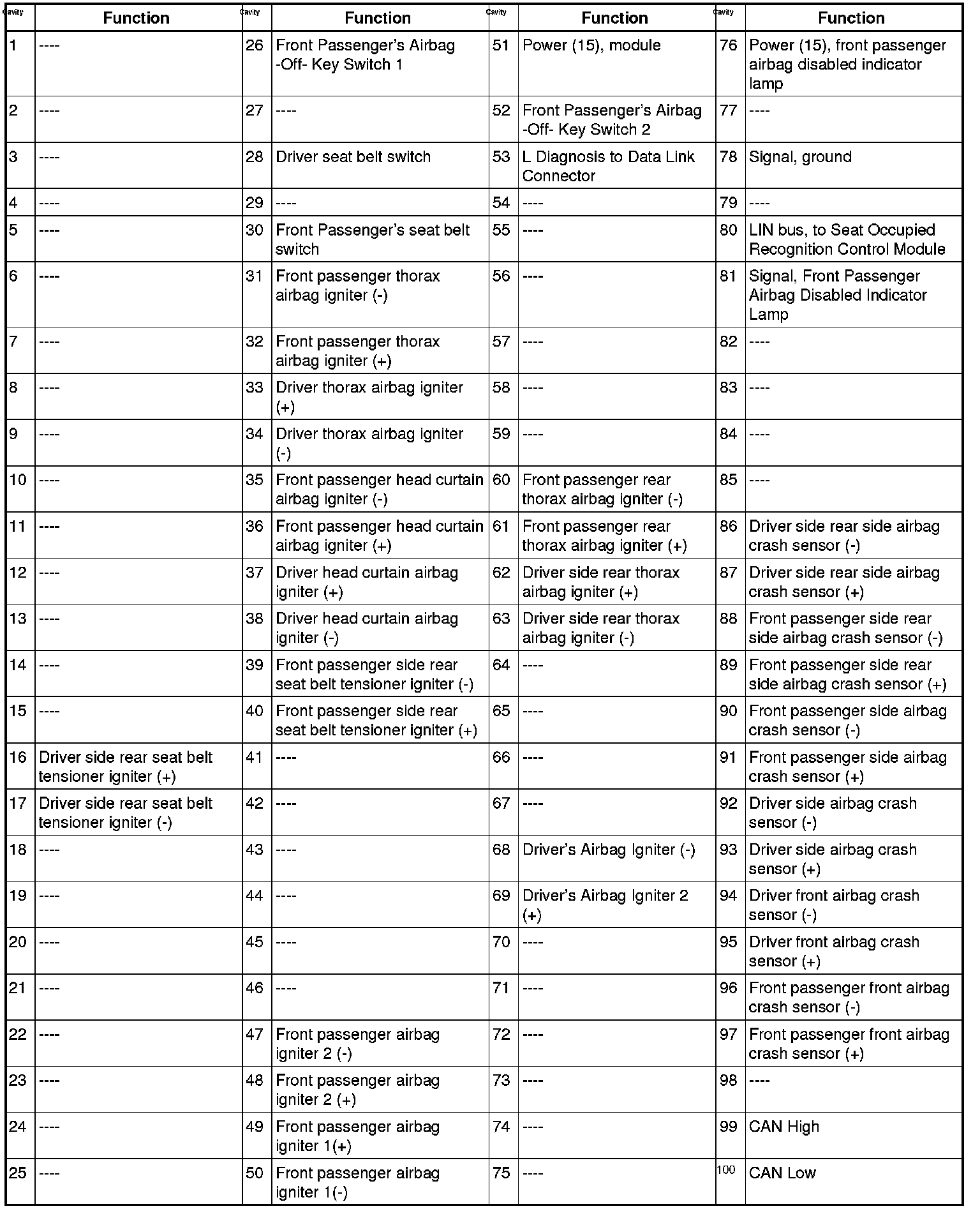

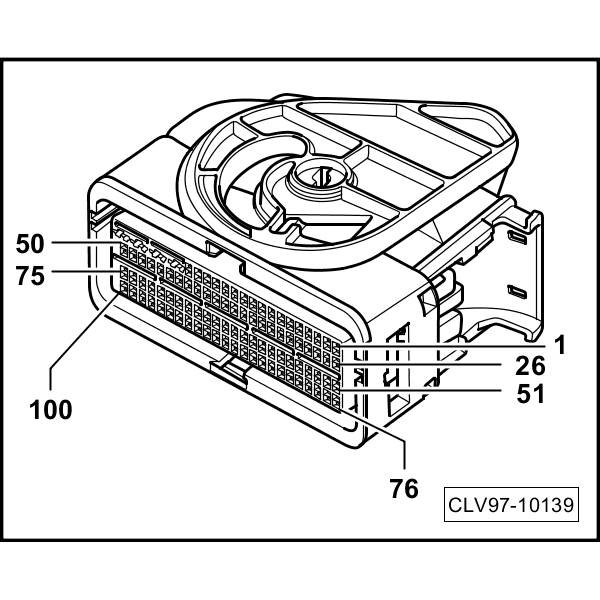

Airbag control module -J234-
