Home >> Volkswagen >> 2007 >> Rabbit (1K1) L5-2.5L (BGP) >> Repair and Diagnosis >> Heating and Air Conditioning >> Solar Sensor >> Service and Repair

Solar Sensor: Service and Repair






Sunlight Photo Sensors

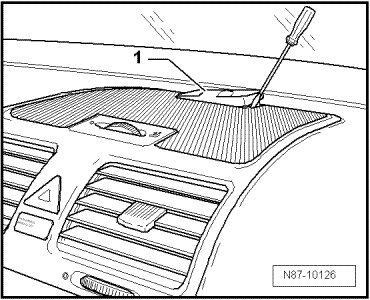

- Unclip sunlight photo sensor - 1 - from instrument panel using an appropriate tool.





- Disconnect harness connector from sunlight photo sensor.
