Control Module HVAC: Description and Operation

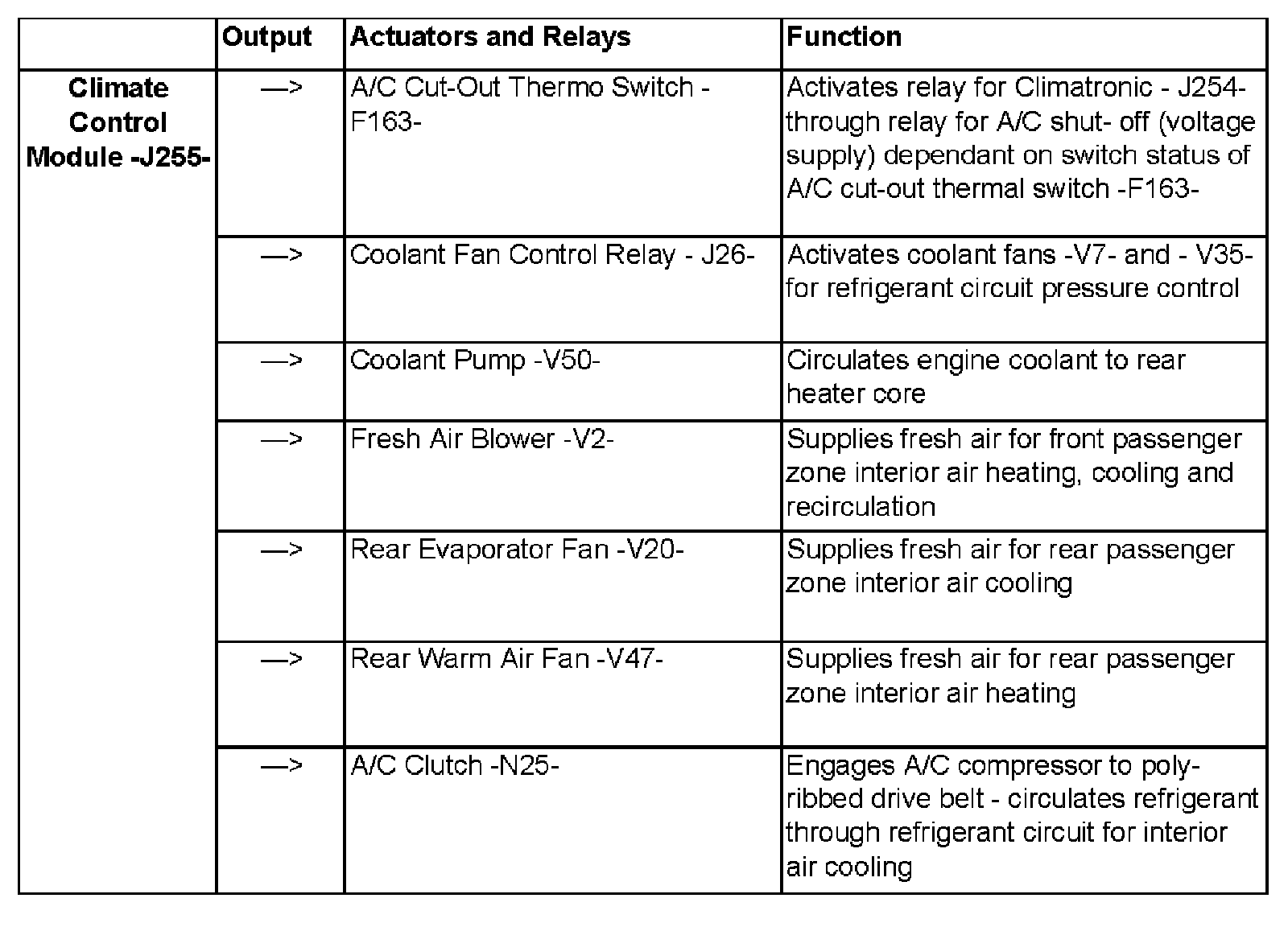

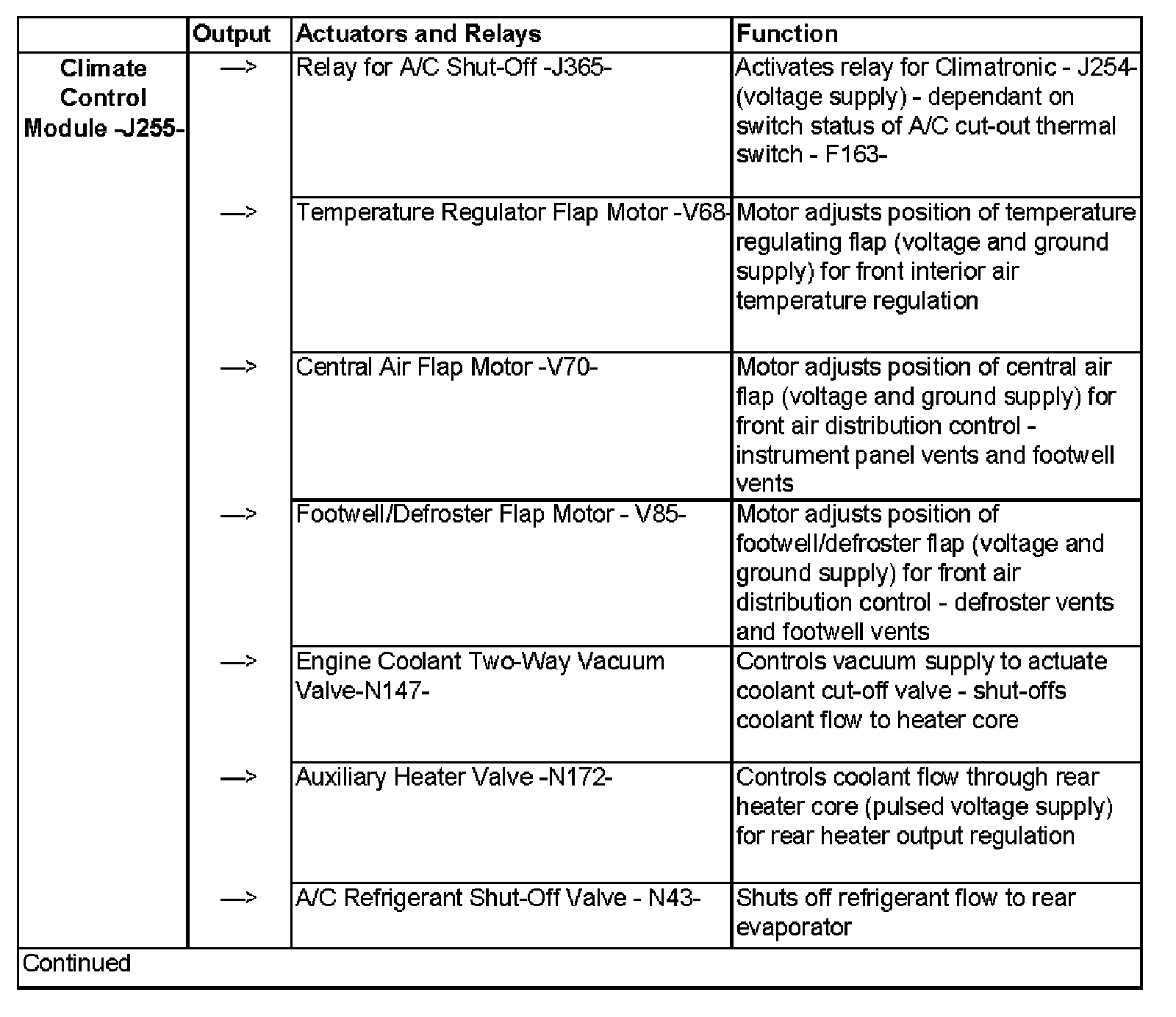

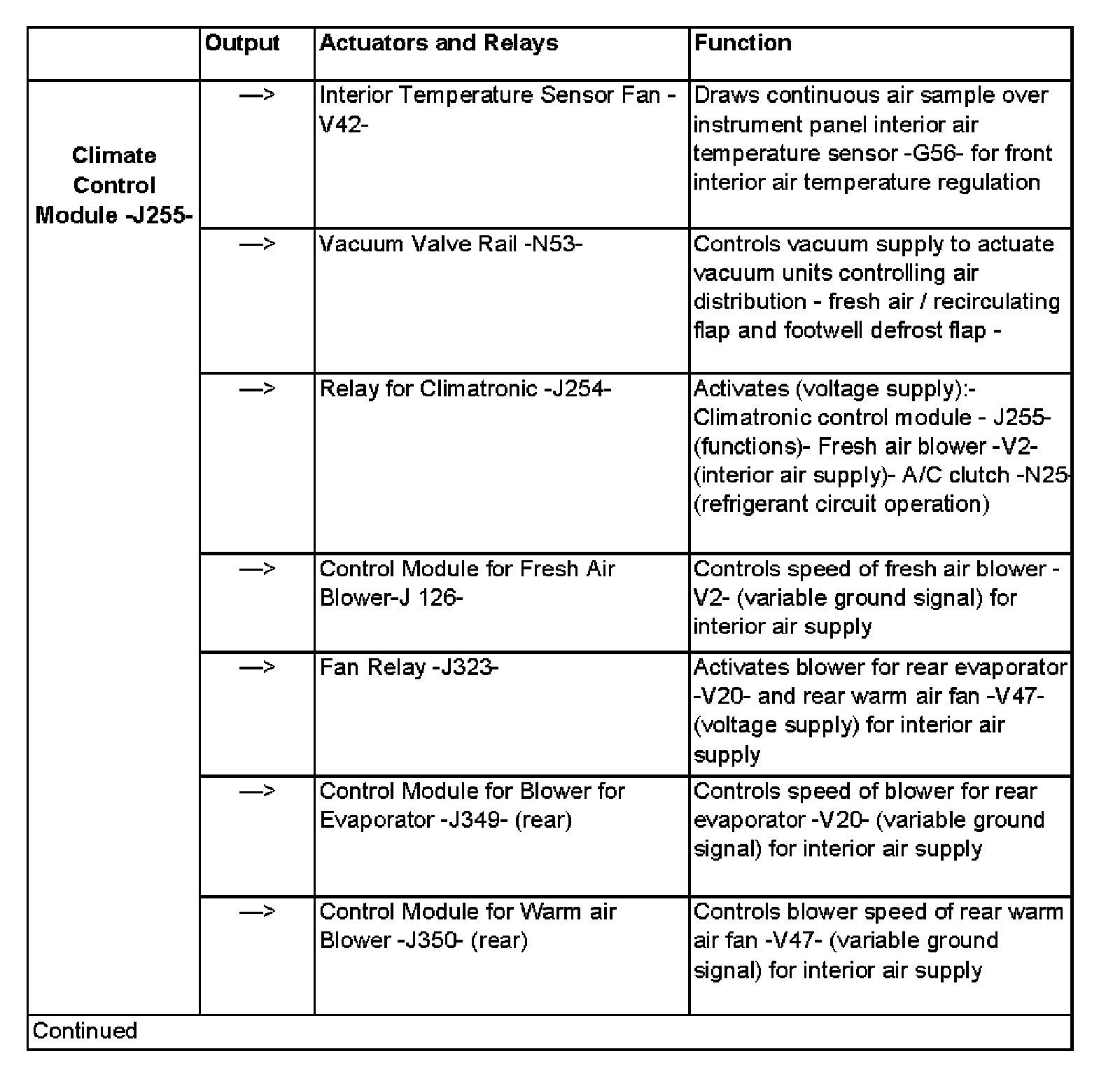

Climatronic Component Functions, Overview

Climate Control Module -J255-
