Distributor, Installing



Distributor, installing

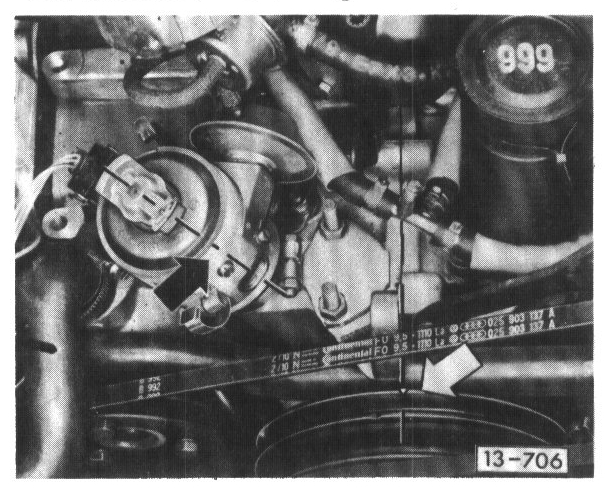

- Set crankshaft to timing notch (cylinder 1)
- Turn rotor far enough that it points toward mark for cylinder 1 on distributor housing
