Home >> Volkswagen >> 1987 >> Vanagon Syncro AWD L4-2109cc 2.1L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Steering >> System Diagram >> Steering Column Components

Steering Column Components

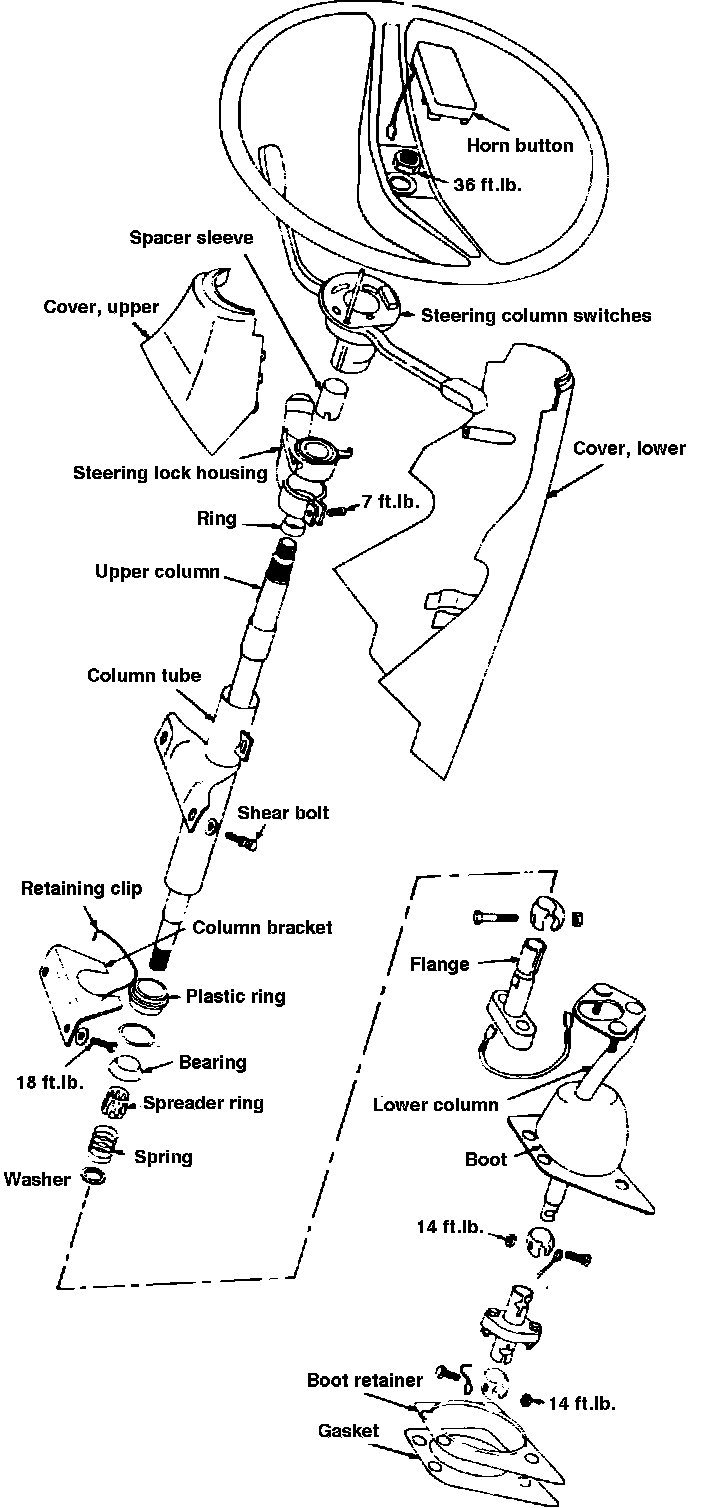

Fig. 1 Exploded view of steering column assembly.:
