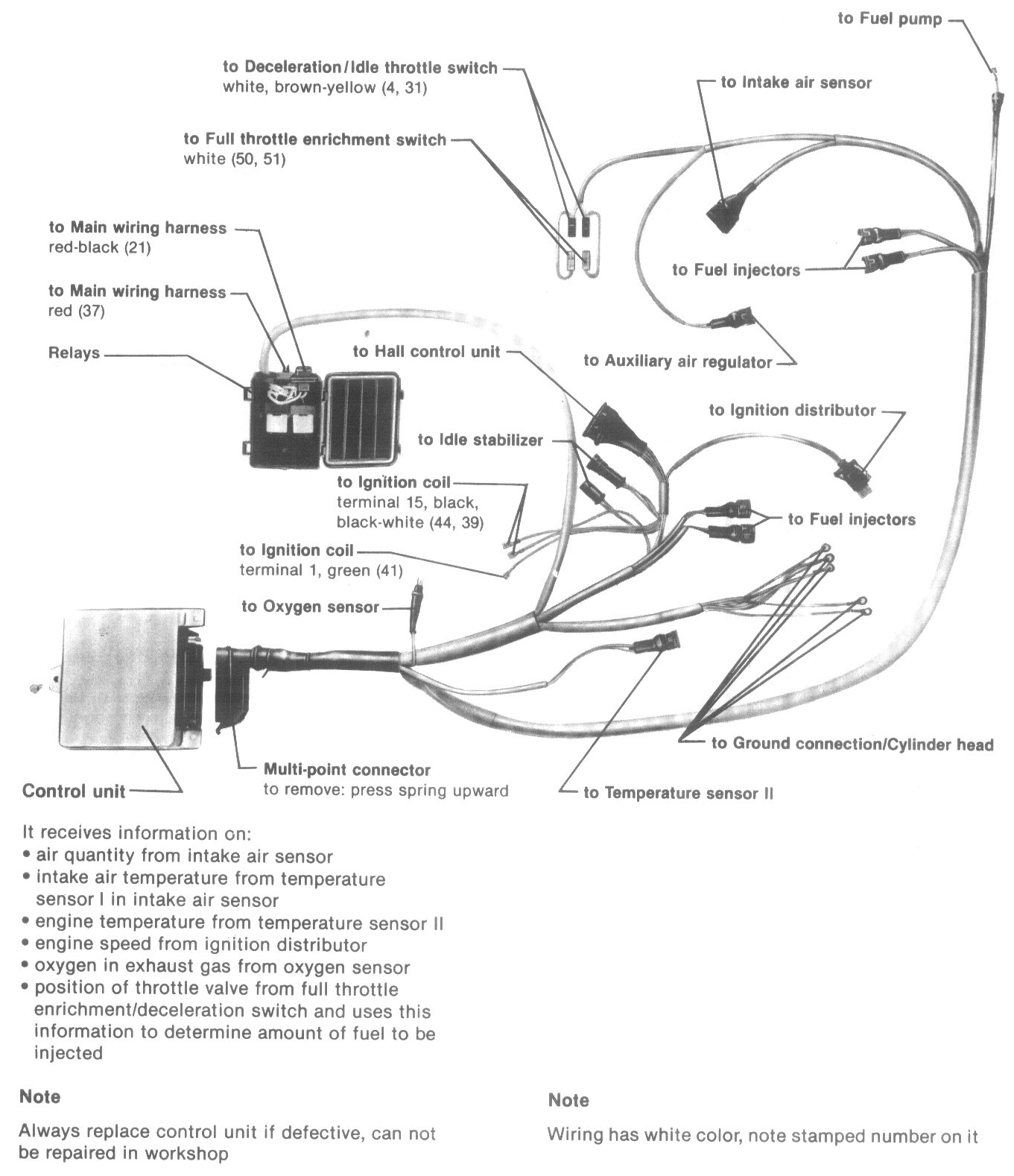

Home >> Volkswagen >> 1985 >> Vanagon F4-1915cc 1.9L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> System Component Layout >> Control Unit/Wire Harness
