Computers and Control Systems: Locations

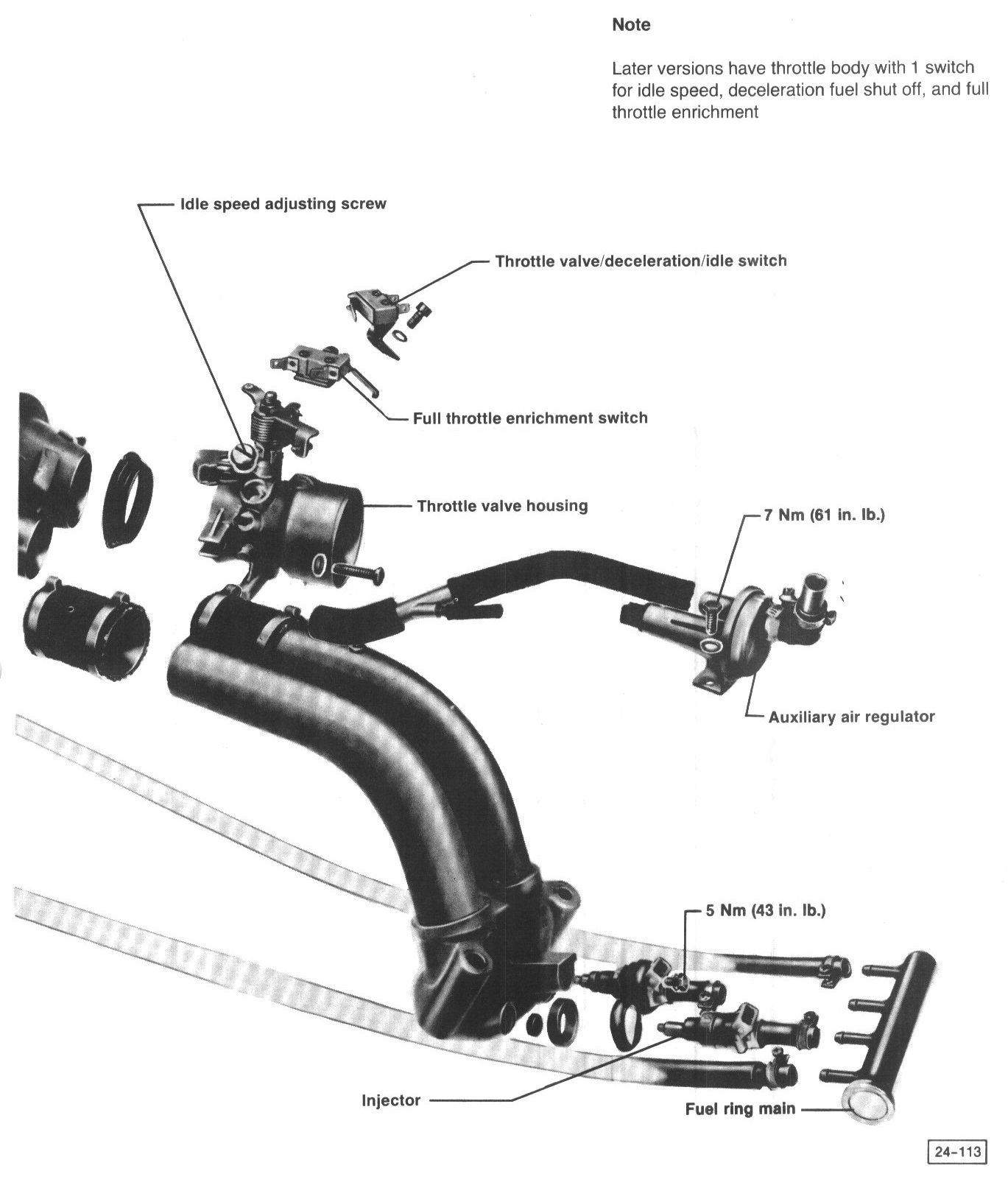

Engine Mounted Components, Part 1:

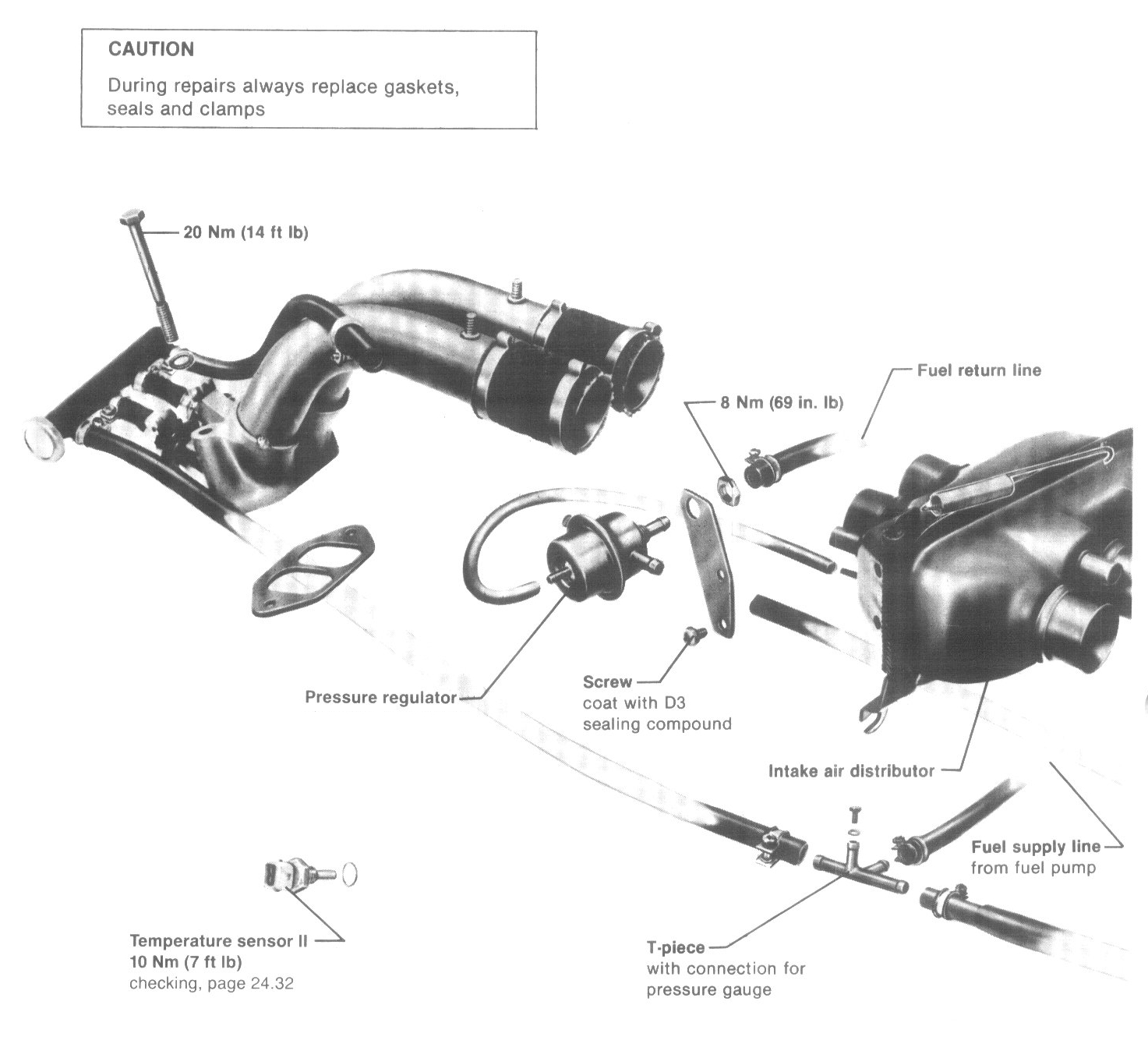

Engine Mounted Components, Part 2:



Intake Air Sensor And Air Cleaner Housing:
