Home >> Volkswagen >> 1983 >> Quantum L5-2144cc 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

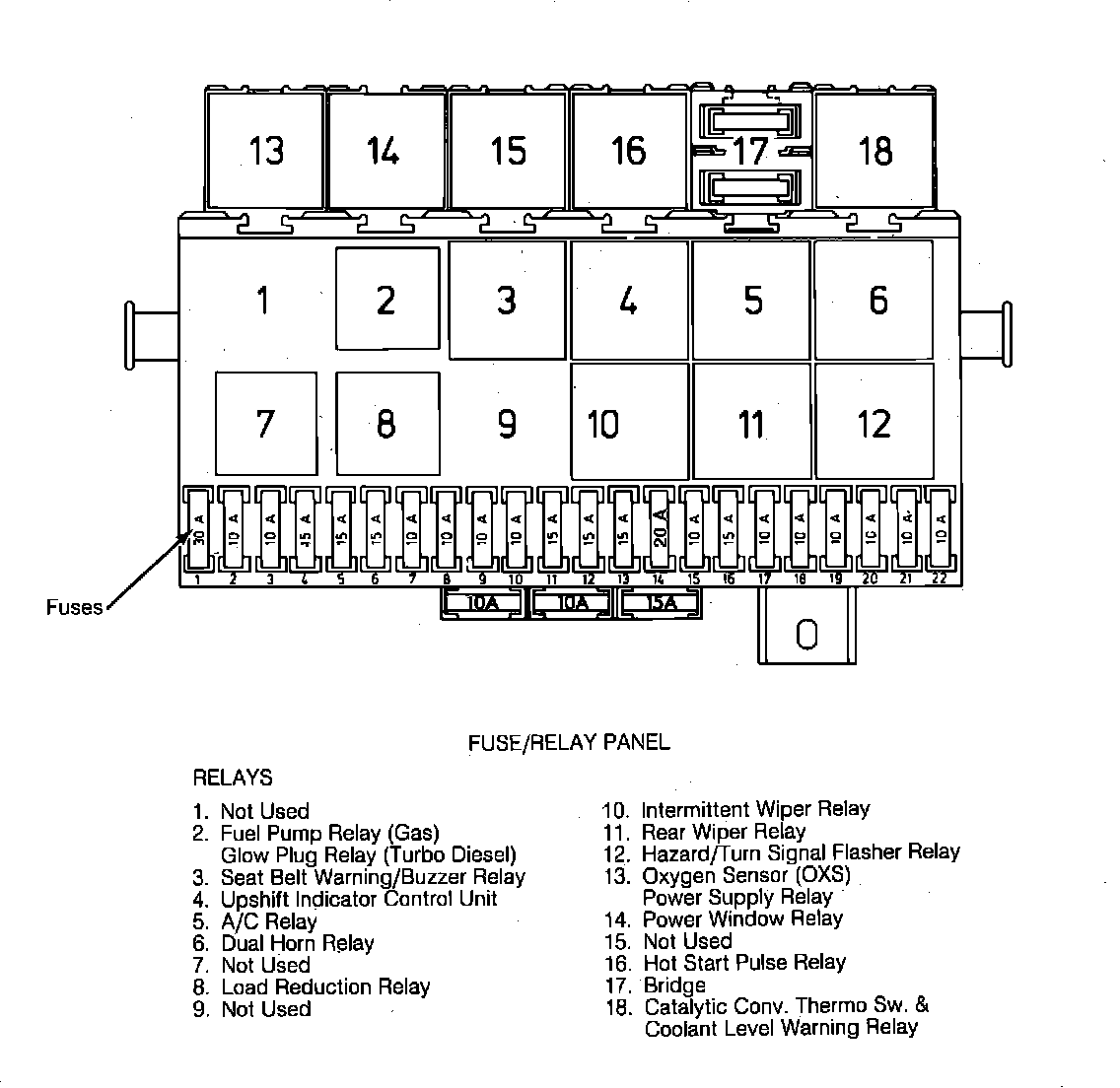

Fig. 6 Fuse/Relay Panel:
