Home
>>
Volkswagen
>>
1982
>>
Vanagon F4-1970cc 2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>

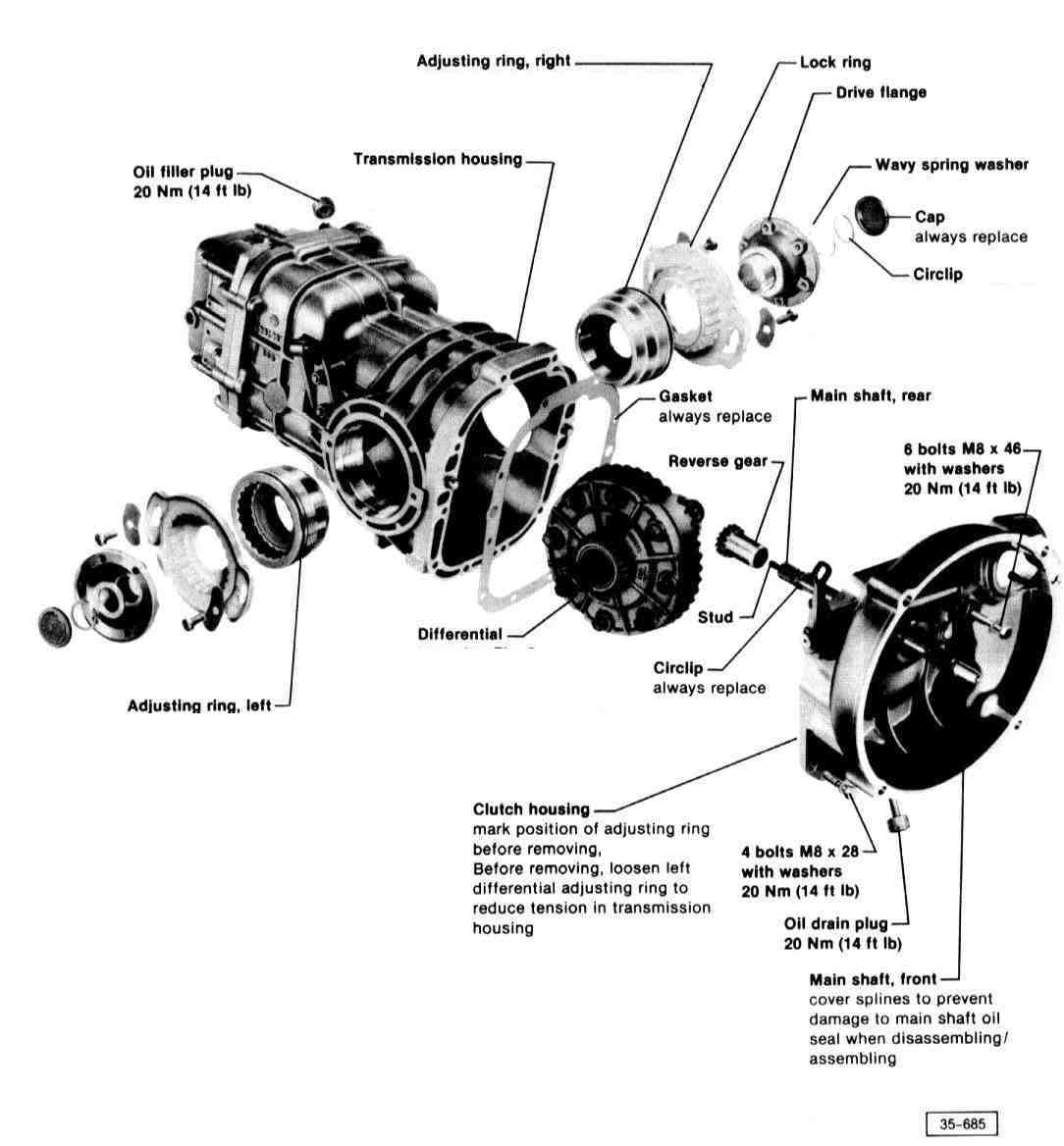

Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
System Diagram
