Engine Torque Specifications

Engine Torque Specifications

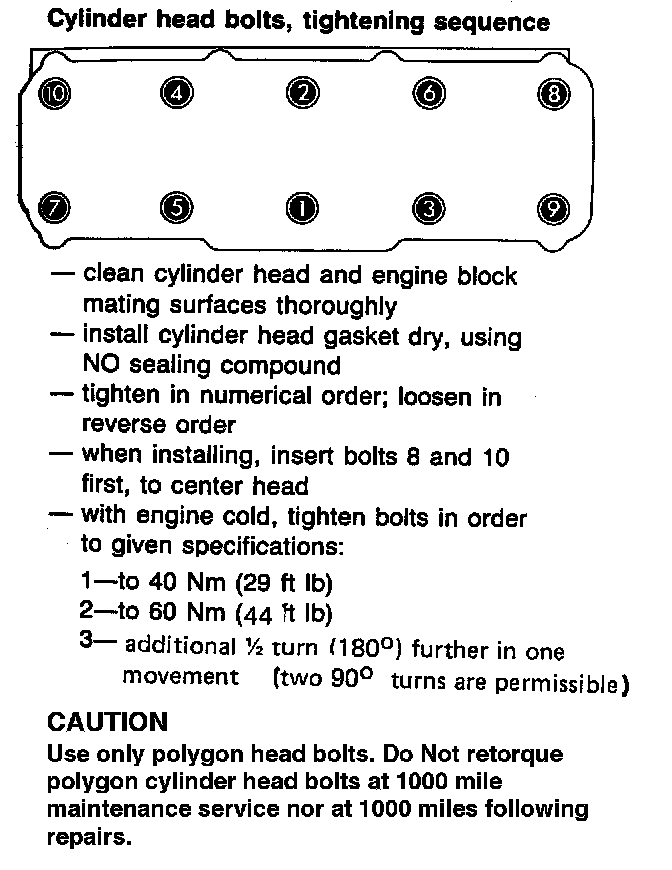

Cylinder Head Bolt Specifications:

Connecting Rod Bolt Specifications:

Torque Specifications:

Turbo Diesel
