Accessory Side Steps Installation

Mobile Repair Possible:  No

Special Tools Required:

Riveting Pliers - no part number

Removal Procedure:

The procedure for the left-hand component is identical to that for the right-hand side.

1. Lift the vehicle. Refer to LIFTING AND JACKING THE VEHICLE
2. Remove front side door. Refer to FRONT SIDE DOOR REMOVAL AND INSTALLATION/REPLACEMENT
3. Remove rear side door. Refer to REAR SIDE DOOR REMOVAL AND INSTALLATION/REPLACEMENT
4. Remove front wheel opening molding. Refer to FRONT WHEEL OPENING MOLDING REMOVAL AND INSTALLATION/REPLACEMENT
5. Remove rear wheel opening molding. Refer to REAR WHEEL OPENING MOLDING REMOVAL AND INSTALLATION/REPLACEMENT
6. Remove both rocker panel moldings. Refer to ROCKER PANEL MOLDING REMOVAL AND INSTALLATION/REPLACEMENT

Installation Procedure:

Courtesy of VINFAST, LLC

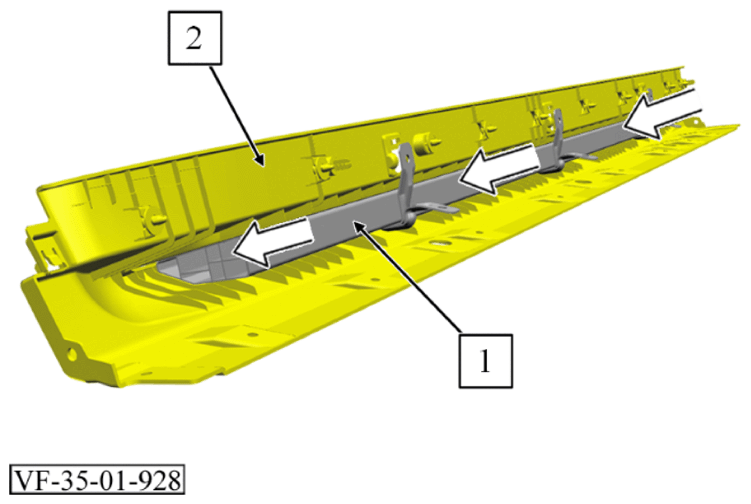

1. Insert the side step reinforcement (1) into the outer casing (2) in arrow direction

   Courtesy of VINFAST, LLC

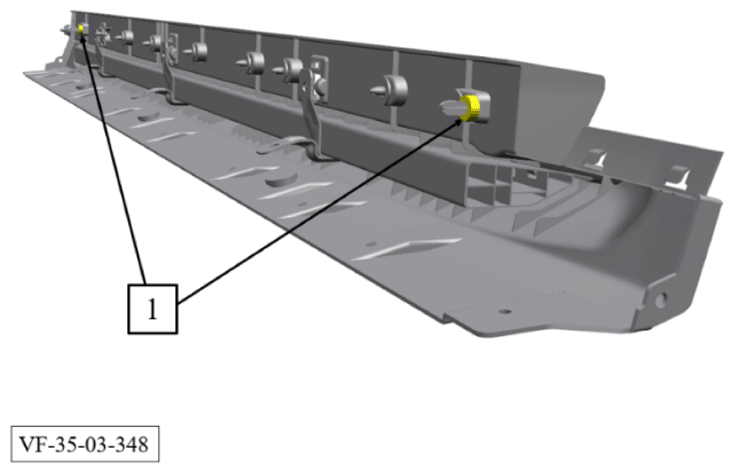

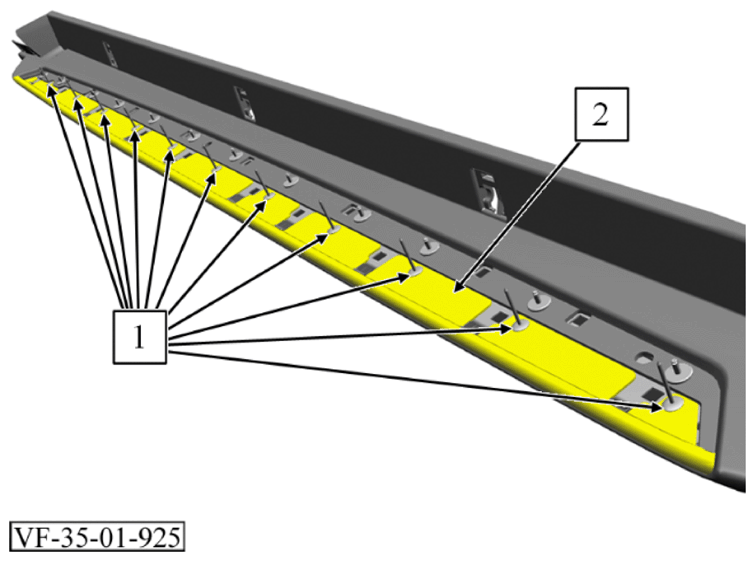

2. Attach and install 12 expanding rivets (1).

   Courtesy of VINFAST, LLC

3. Install the side step guard (2).
4. Attach and install 11 blind rivets (1) with riveting pliers.

   Courtesy of VINFAST, LLC

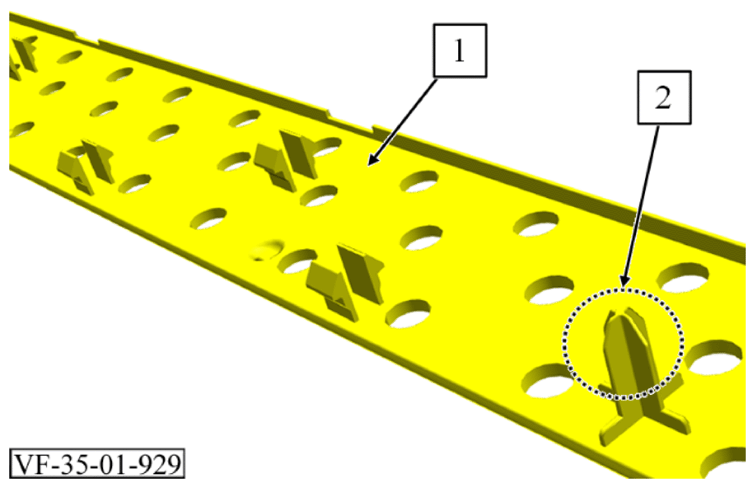

5. Align the side step (1) with the guide (2).

   Courtesy of VINFAST, LLC

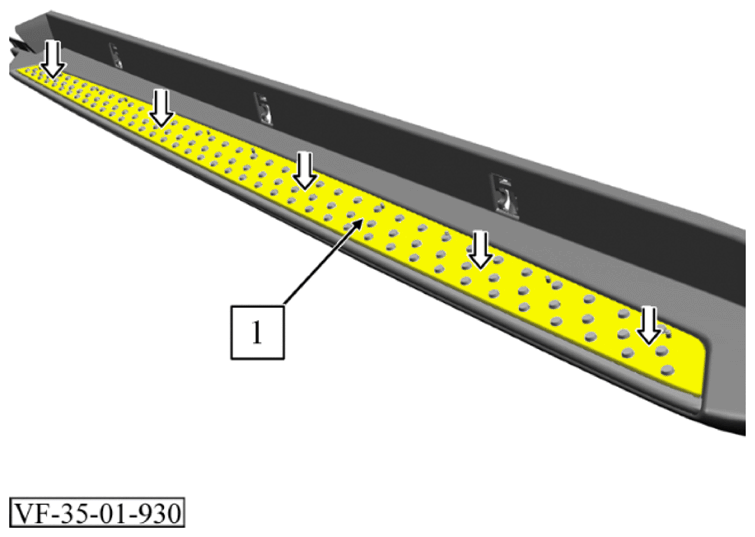

6. Clip in the side step lining (1).

   Courtesy of VINFAST, LLC

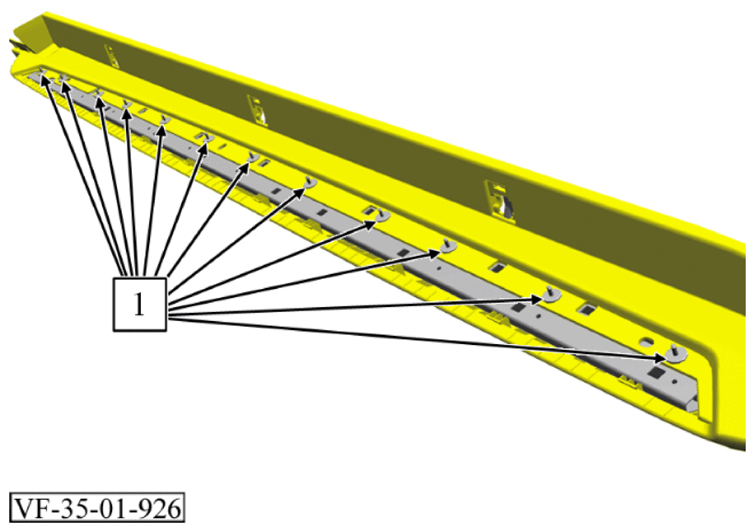

7. Install all clips (1) in the side step panelling.

   Courtesy of VINFAST, LLC

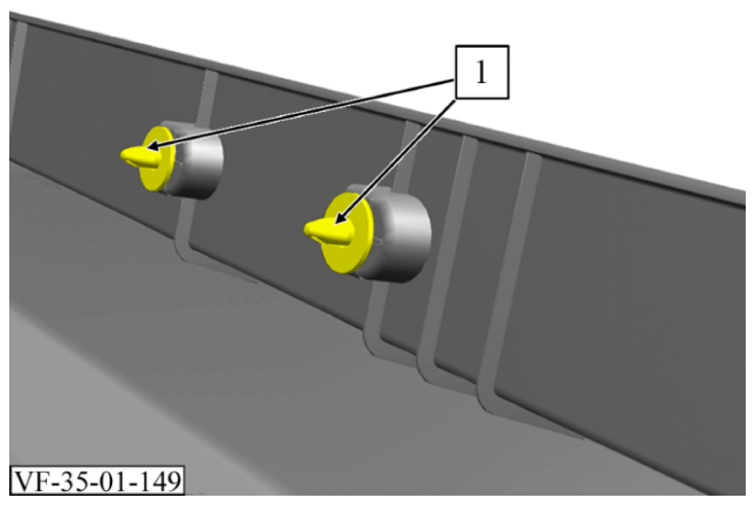

8. Install both seal rings (1).

   Courtesy of VINFAST, LLC

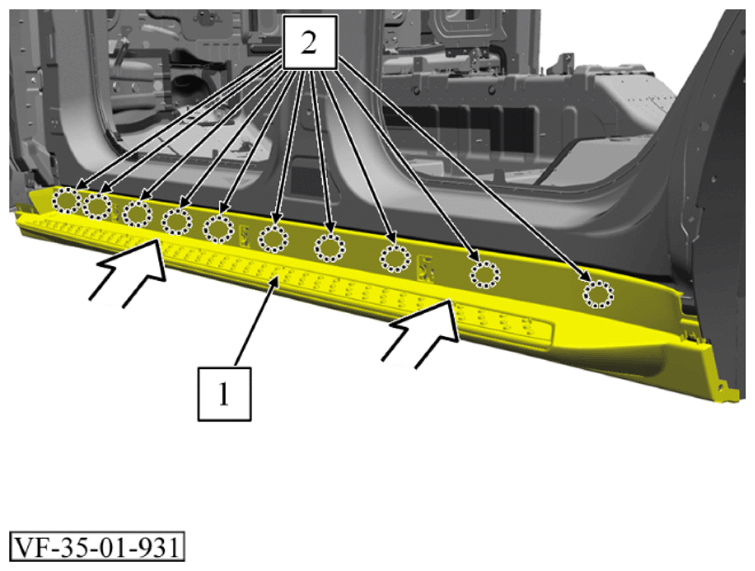

9. Attach and align side step (1).
10. Fasten 10 clips (2).

    Courtesy of VINFAST, LLC

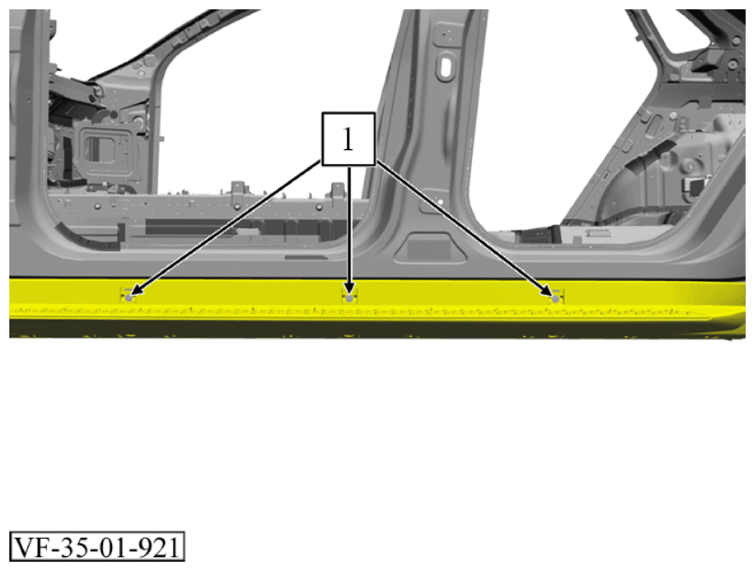

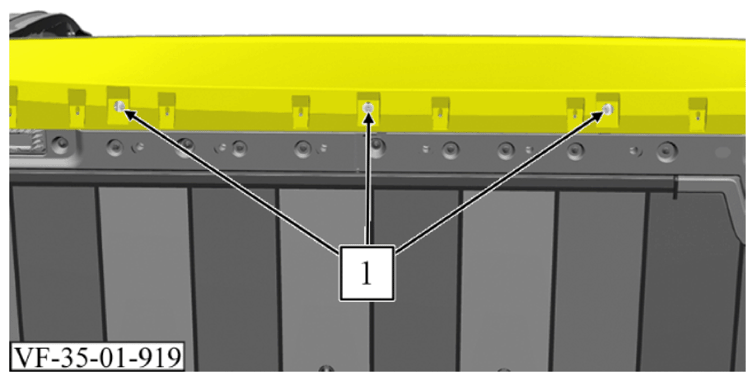

11. Insert and tighten 3 bolts (1).

    Torque: 19 Nm

    Courtesy of VINFAST, LLC

12. Insert and tighten 3 bolts (1).

    Torque: 19 Nm

    Courtesy of VINFAST, LLC

13. Install 3 sealing plugs (1).

    Courtesy of VINFAST, LLC

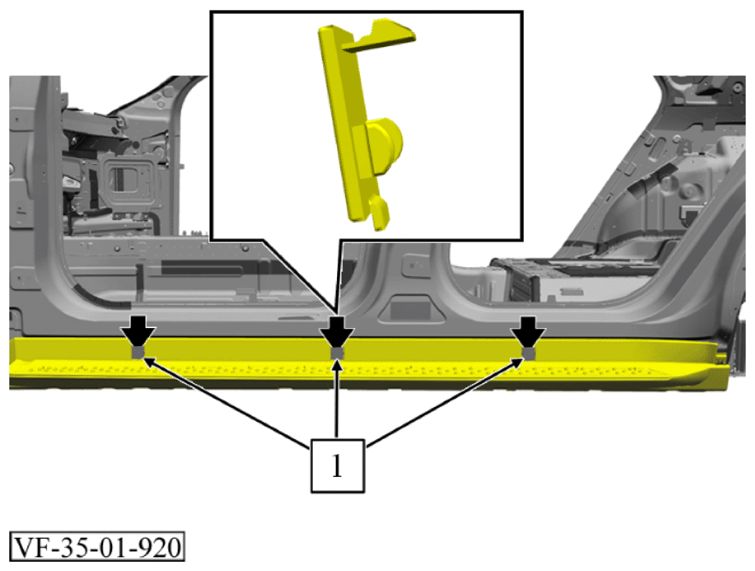

14. Attach 3 lids (1).

    Courtesy of VINFAST, LLC

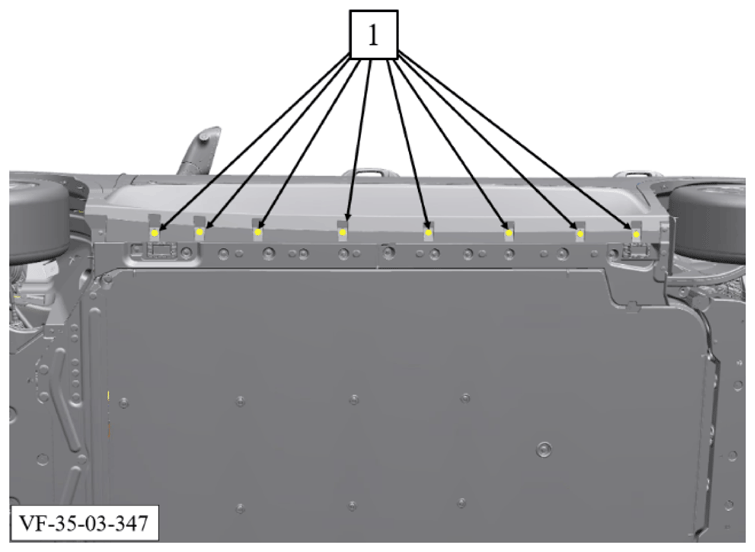

15. Insert and tighten 8 screws (1).

    Torque: 2.6 Nm

    Courtesy of VINFAST, LLC

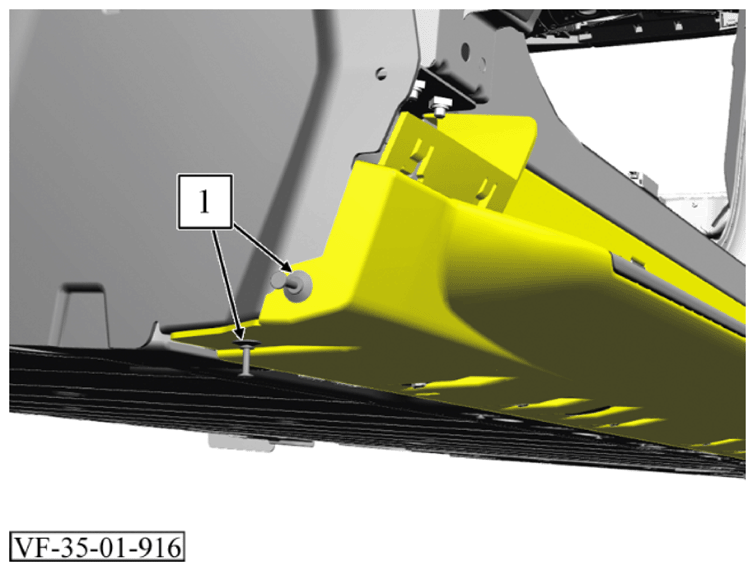

16. Install both rivets (1) in front wheelhouse.

    Courtesy of VINFAST, LLC

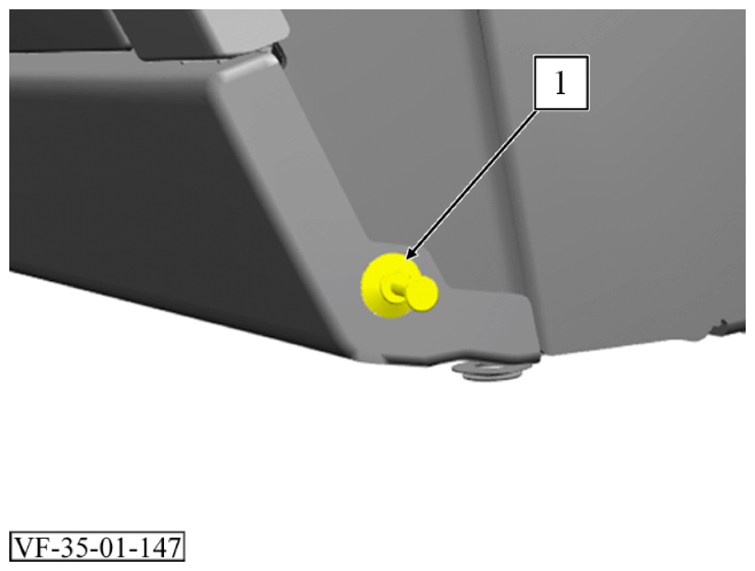

17. Install rivet (1) in rear wheelhouse.
18. Install rear tire air deflector. Refer to REAR TIRE AIR DEFLECTOR REMOVAL AND INSTALLATION/REPLACEMENT
19. Install rear wheel opening molding. Refer to REAR WHEEL OPENING MOLDING REMOVAL AND INSTALLATION/REPLACEMENT
20. Install front wheel opening molding. Refer to FRONT WHEEL OPENING MOLDING REMOVAL AND INSTALLATION/REPLACEMENT
21. Install rear side door. Refer to REAR SIDE DOOR REMOVAL AND INSTALLATION/REPLACEMENT
22. Install front side door  . Refer to FRONT SIDE DOOR REMOVAL AND INSTALLATION/REPLACEMENT
