ACCELERATOR PEDAL (for Hatchback): Components: Illustration

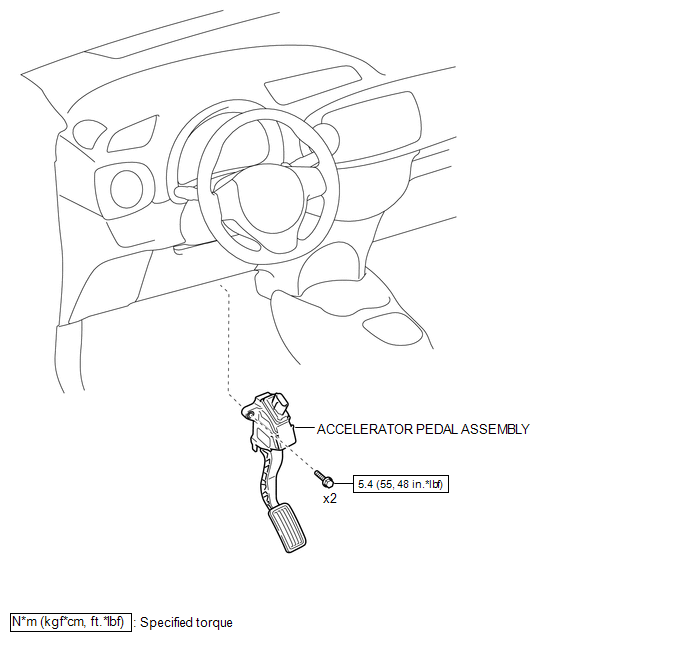

Fig 1: Identifying Accelerator Pedal Replacement Components With Torque Specifications (For Hatchback)
GTY365846Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
