INTEGRATION RELAY (for Hatchback): Removal: Removal

  1. REMOVE ENGINE ROOM MAIN RELAY BLOCK COVER
  2. REMOVE NO. 1 INTEGRATION RELAY
    1. Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the No. 1 integration relay.

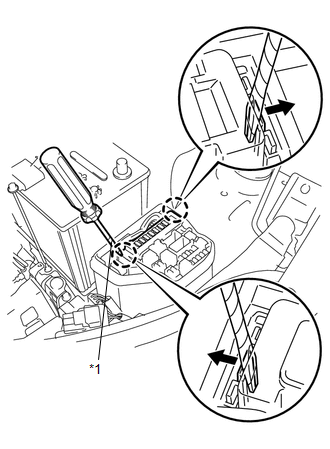

      Fig 1: Disconnecting No. 1 Integration Relay
      GTY338925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *1 Protective Tape
    2. Disconnect the 3 connectors.
