Heated Oxygen Sensor: Components: Illustration

Fig 1: Identifying Heated Oxygen Sensor Replacement Components (1 of 3)
GTY301974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications (2 of 3)
GTY299307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

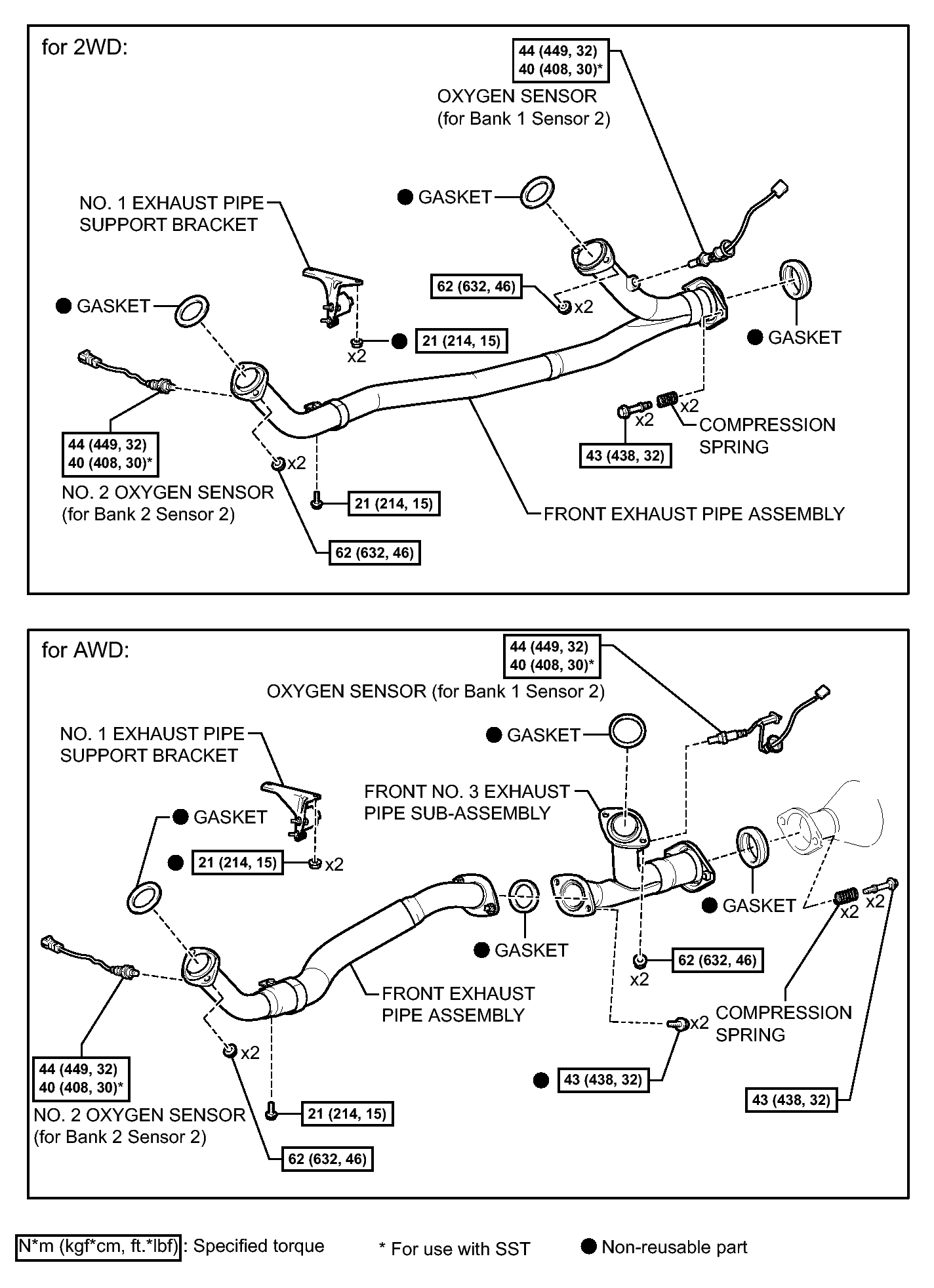

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications (3 of 3)
GTY296309Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
