Service Data

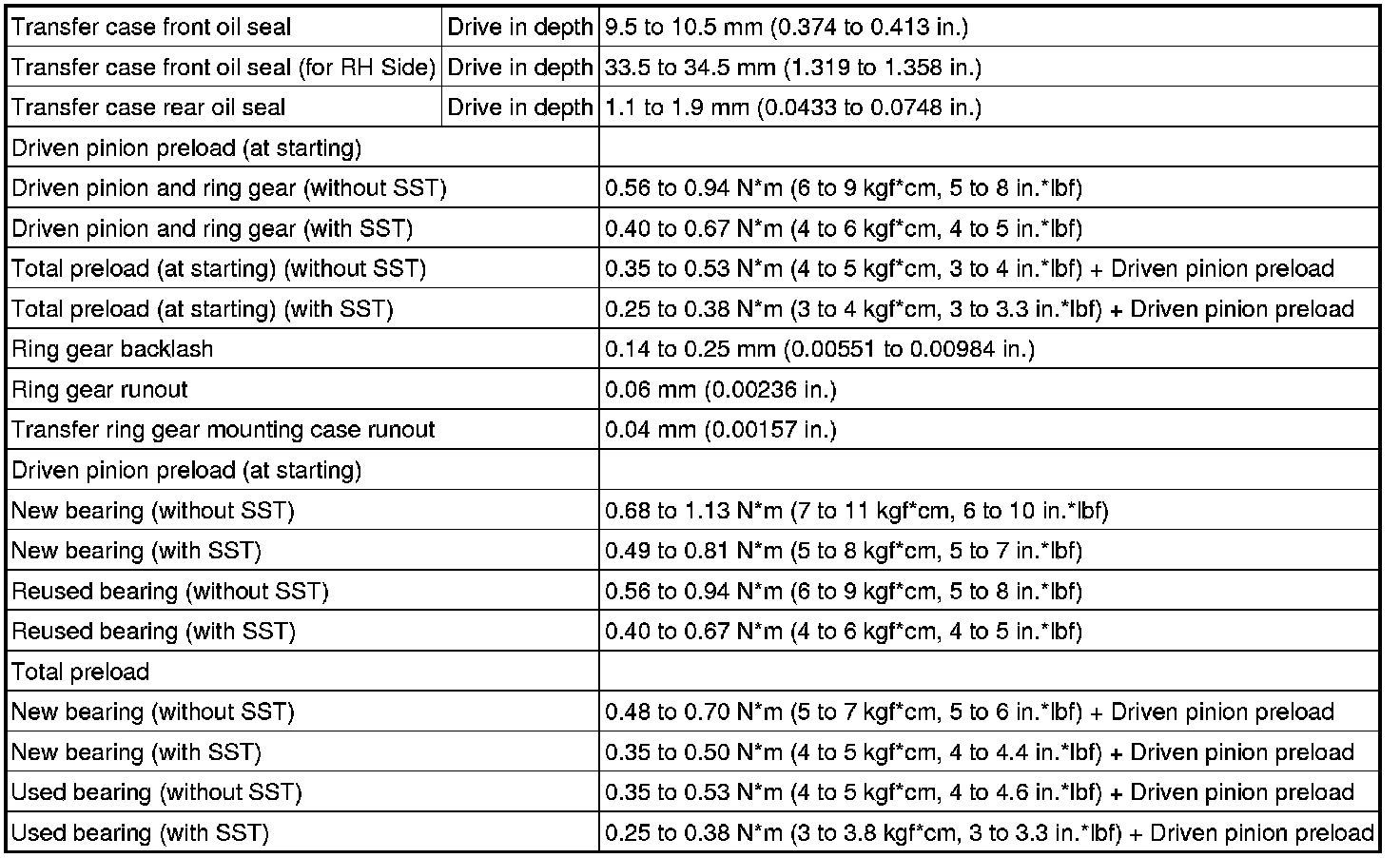

SPECIFICATIONS: MF1A TRANSFER / 4WD / AWD: SERVICE DATA
Thrust Washer Thickness (Backlash Adjustment)
Thrust Washer Thickness (Tooth Contact Adjustment)
Thrust Washer Thickness (Preload Adjust)
SPECIFICATIONS: MF1A TRANSFER / 4WD / AWD: SERVICE DATA
Thrust Washer Thickness (Backlash Adjustment)
Thrust Washer Thickness (Tooth Contact Adjustment)
Thrust Washer Thickness (Preload Adjust)
