Home >> Toyota >> 2012 >> Venza AWD L4-2.7L (1AR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Differential Assembly >> Torque Specifications

Torque Specifications





SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS

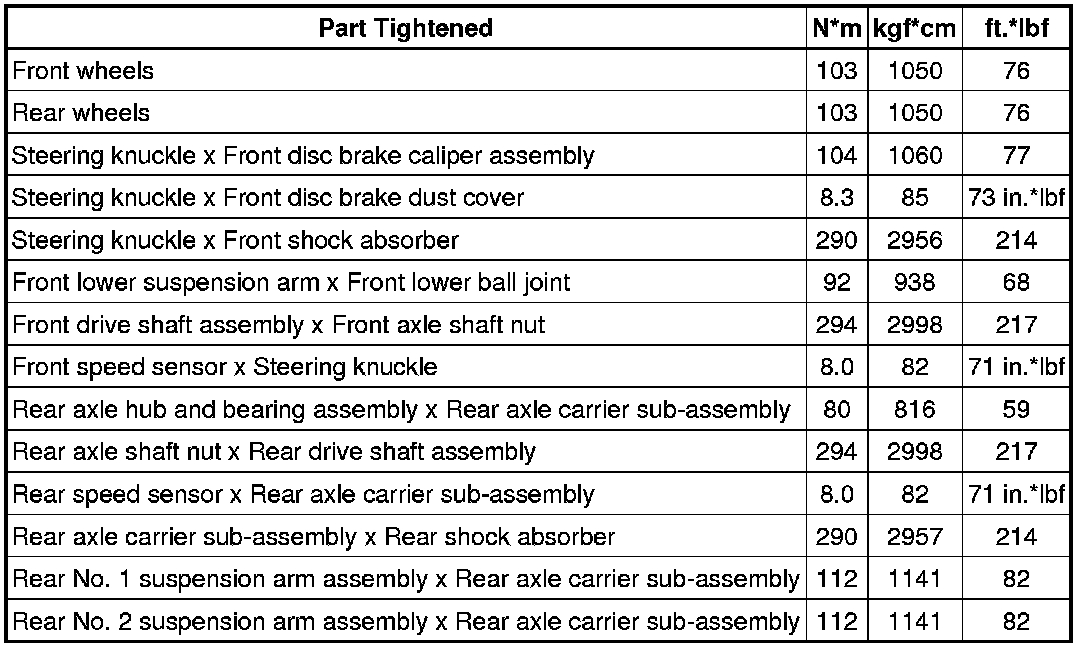

AXLE

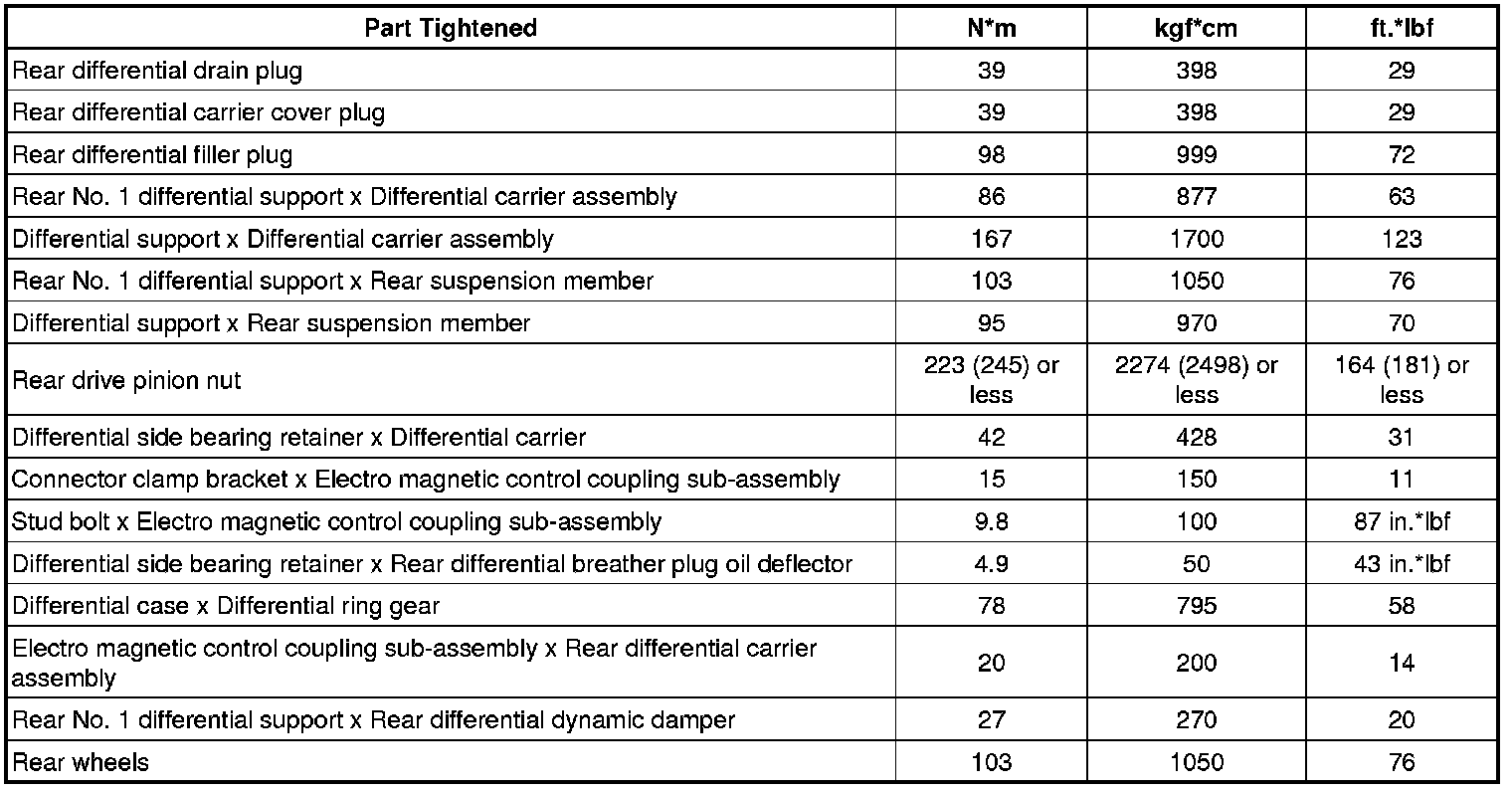

DIFFERENTIAL






( ): For use without SST
