Torque Specifications

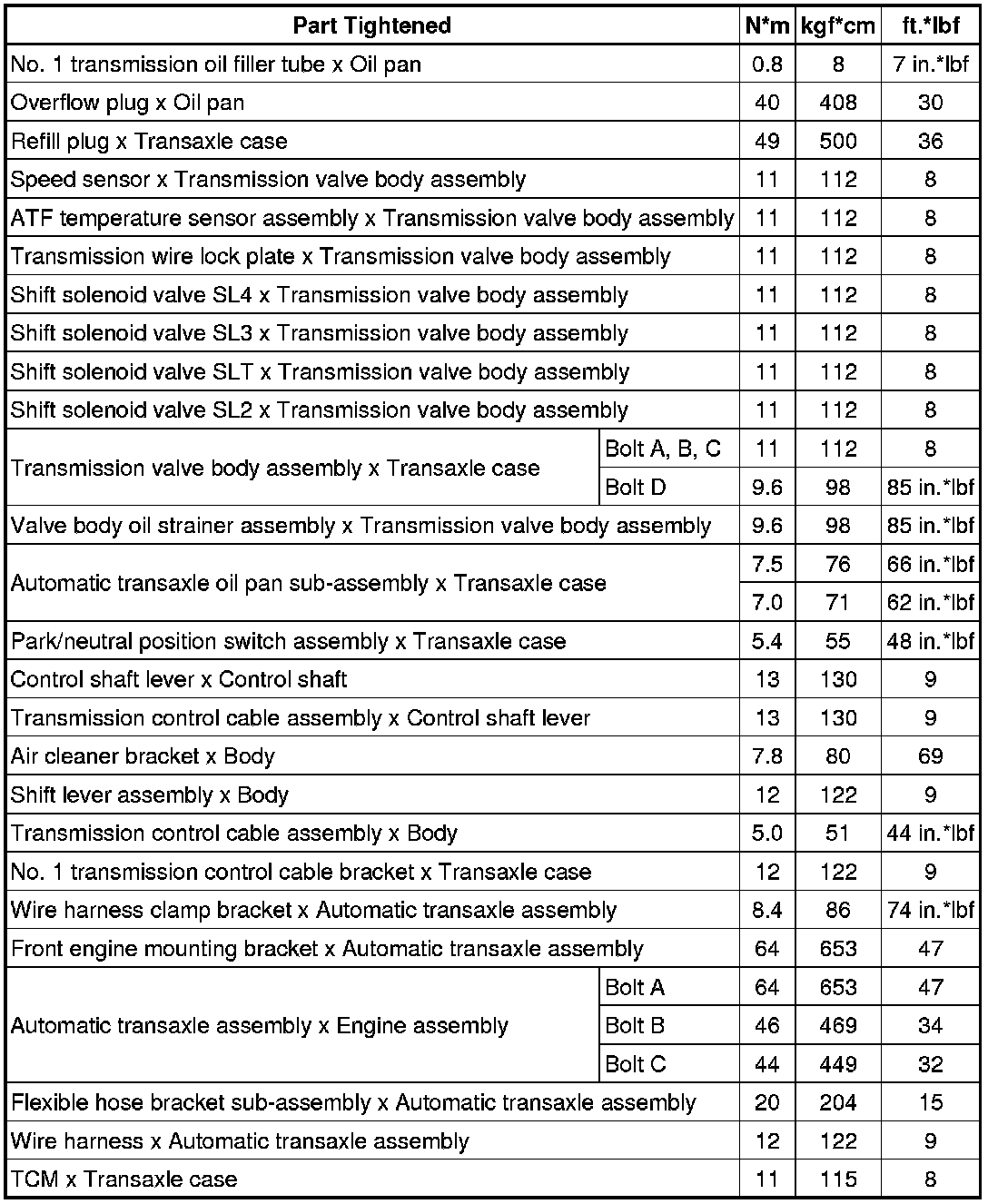

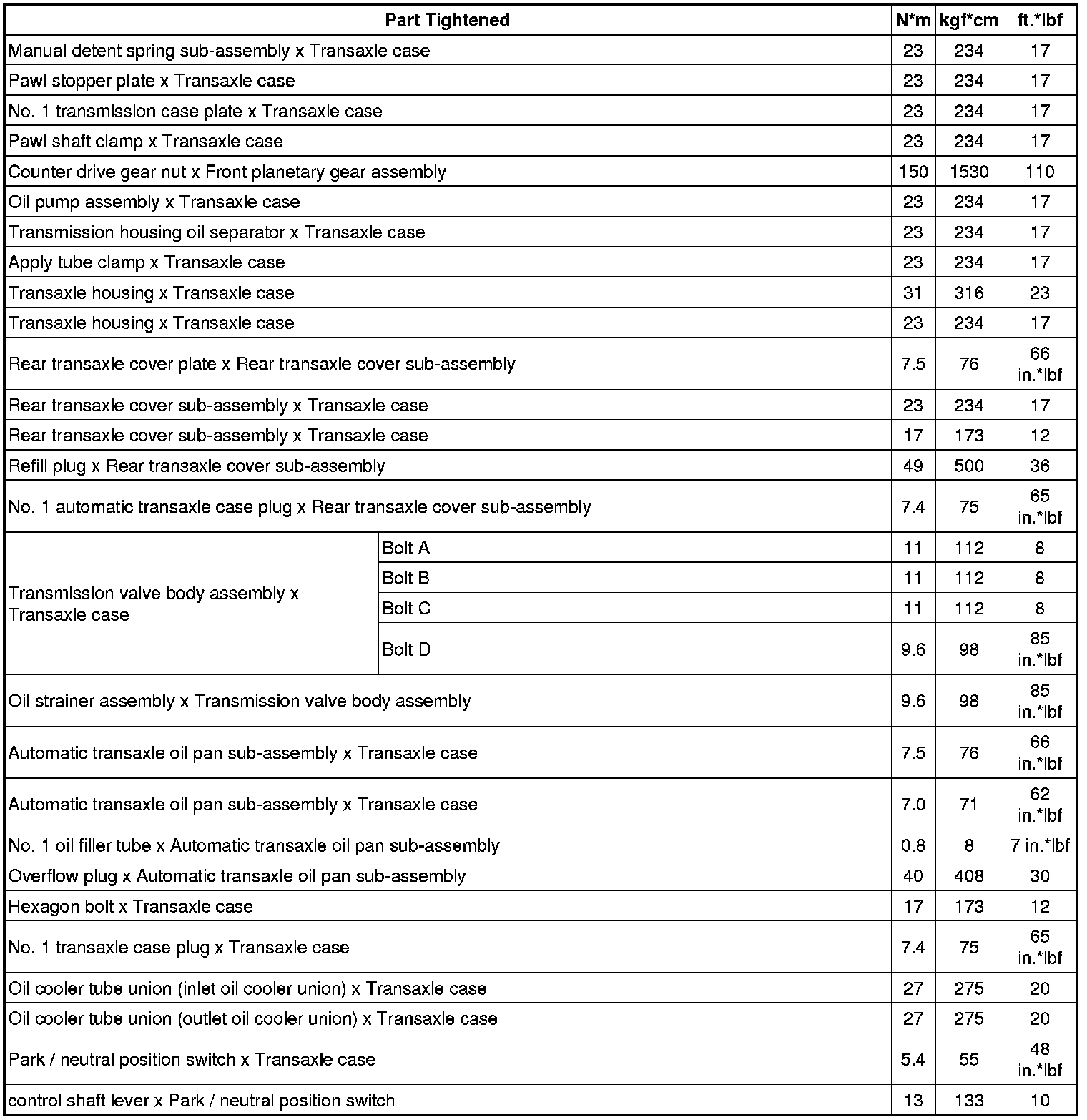

SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: TORQUE SPECIFICATIONS

Automatic Transaxle Unit

Oil Pump

Differential Case
