Service Data

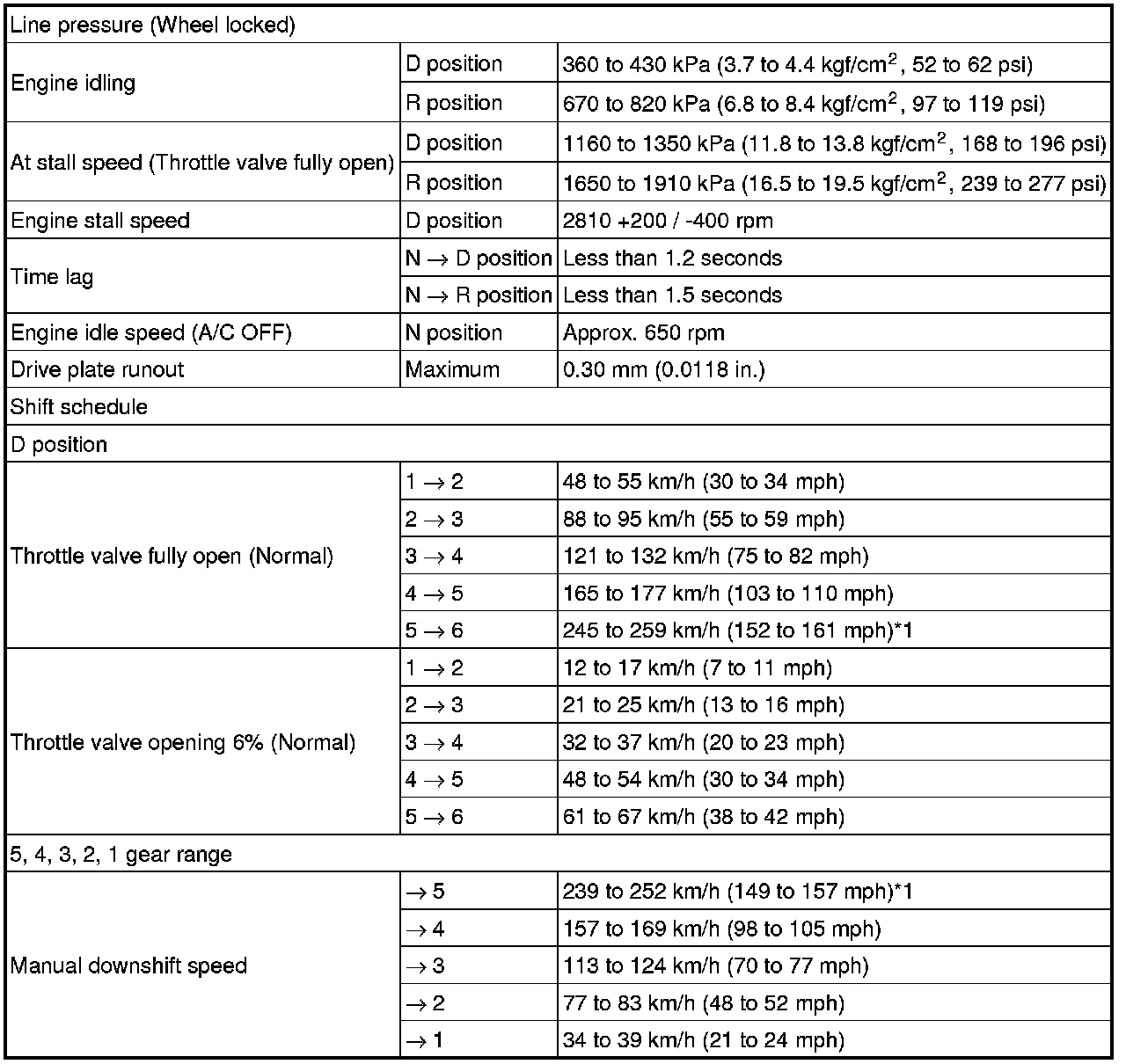

SPECIFICATIONS: U760F AUTOMATIC TRANSMISSION / TRANSAXLE: SERVICE DATA






*1: Speed limiter active

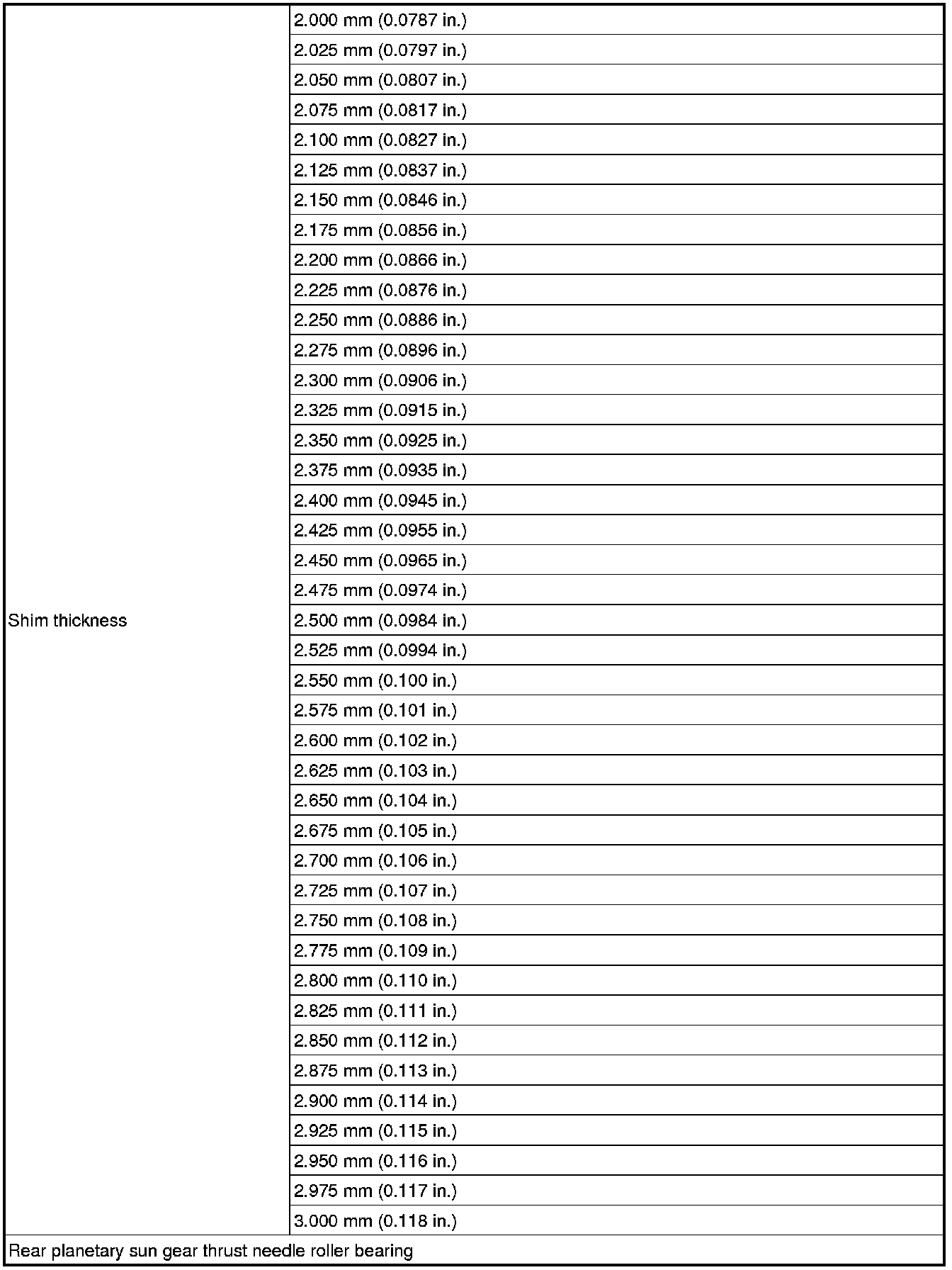

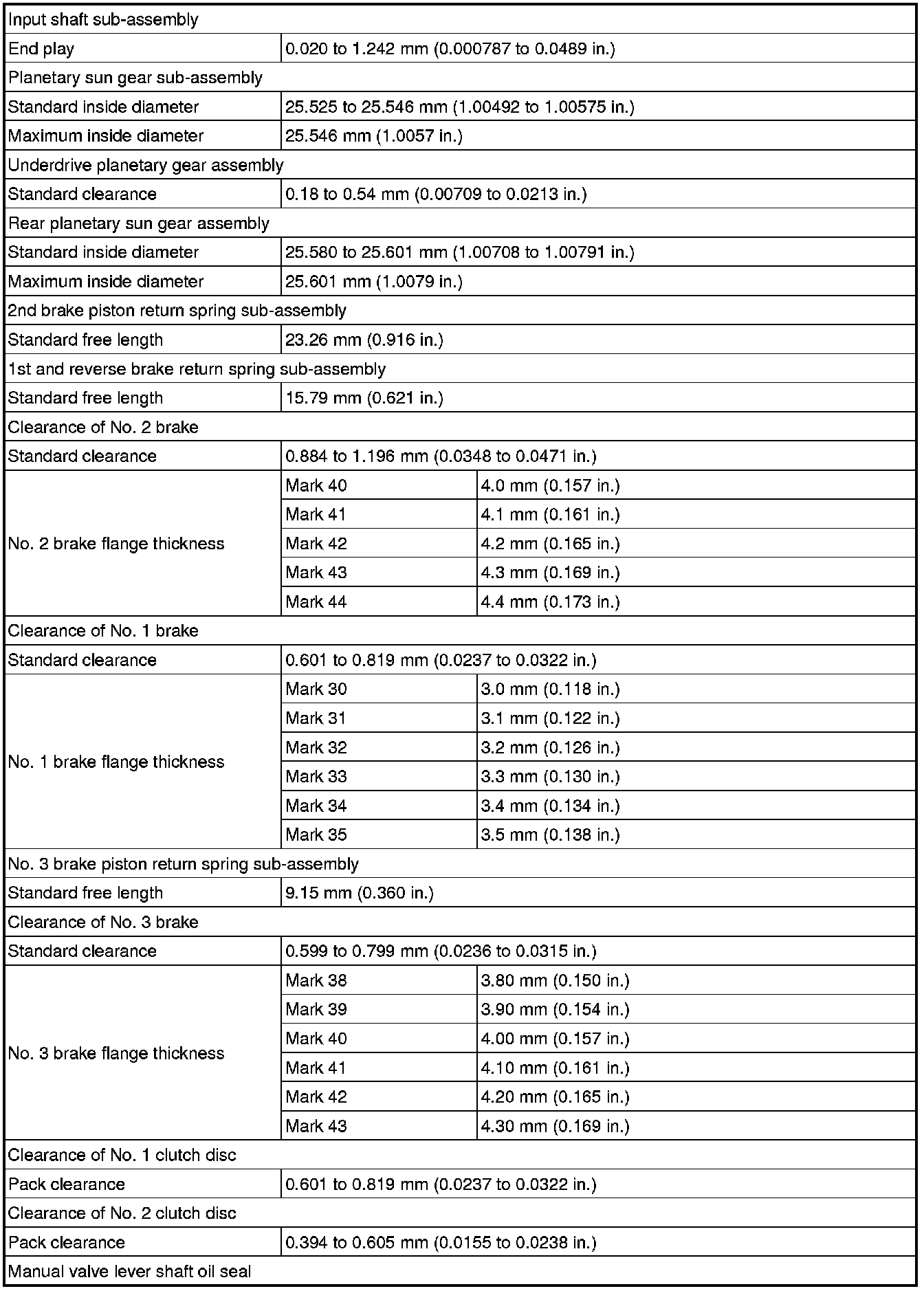

Automatic Transaxle Unit

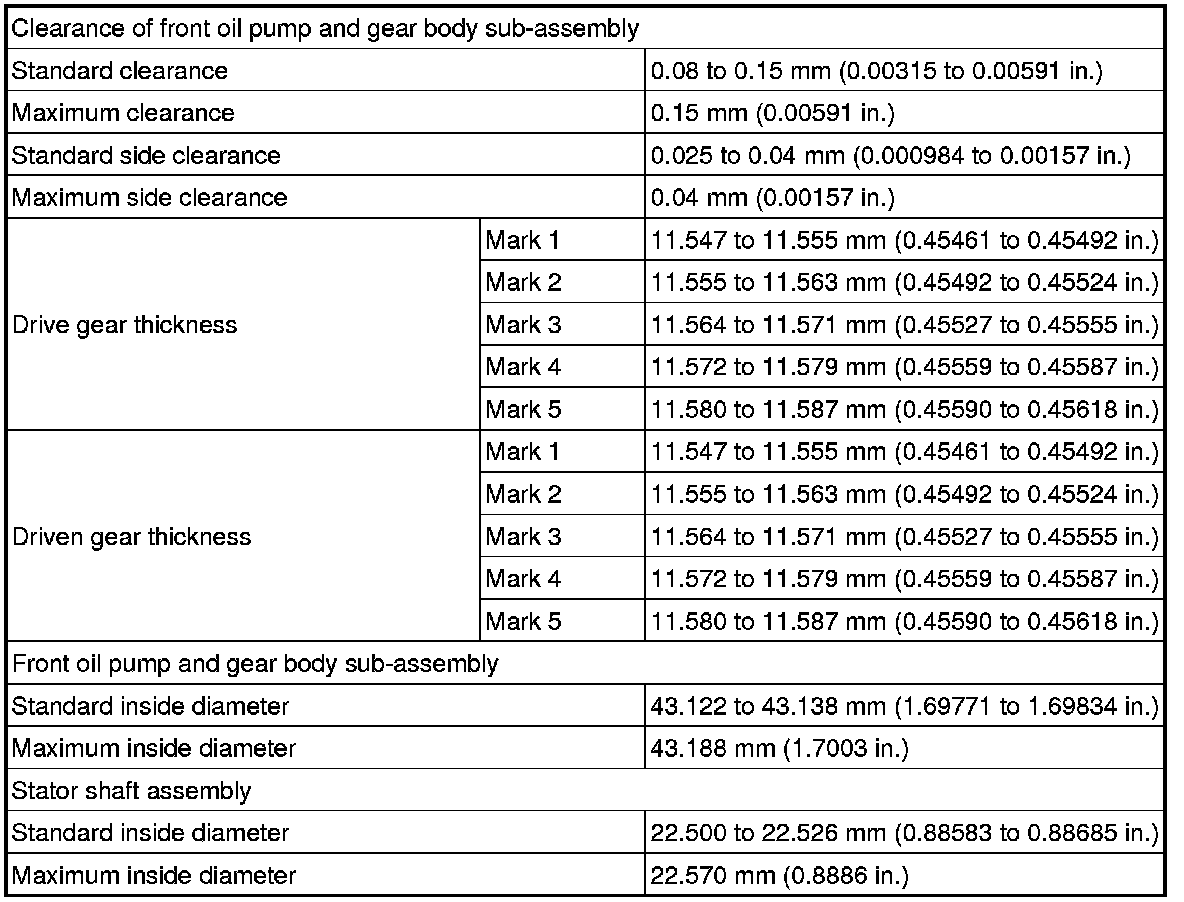

Oil Pump

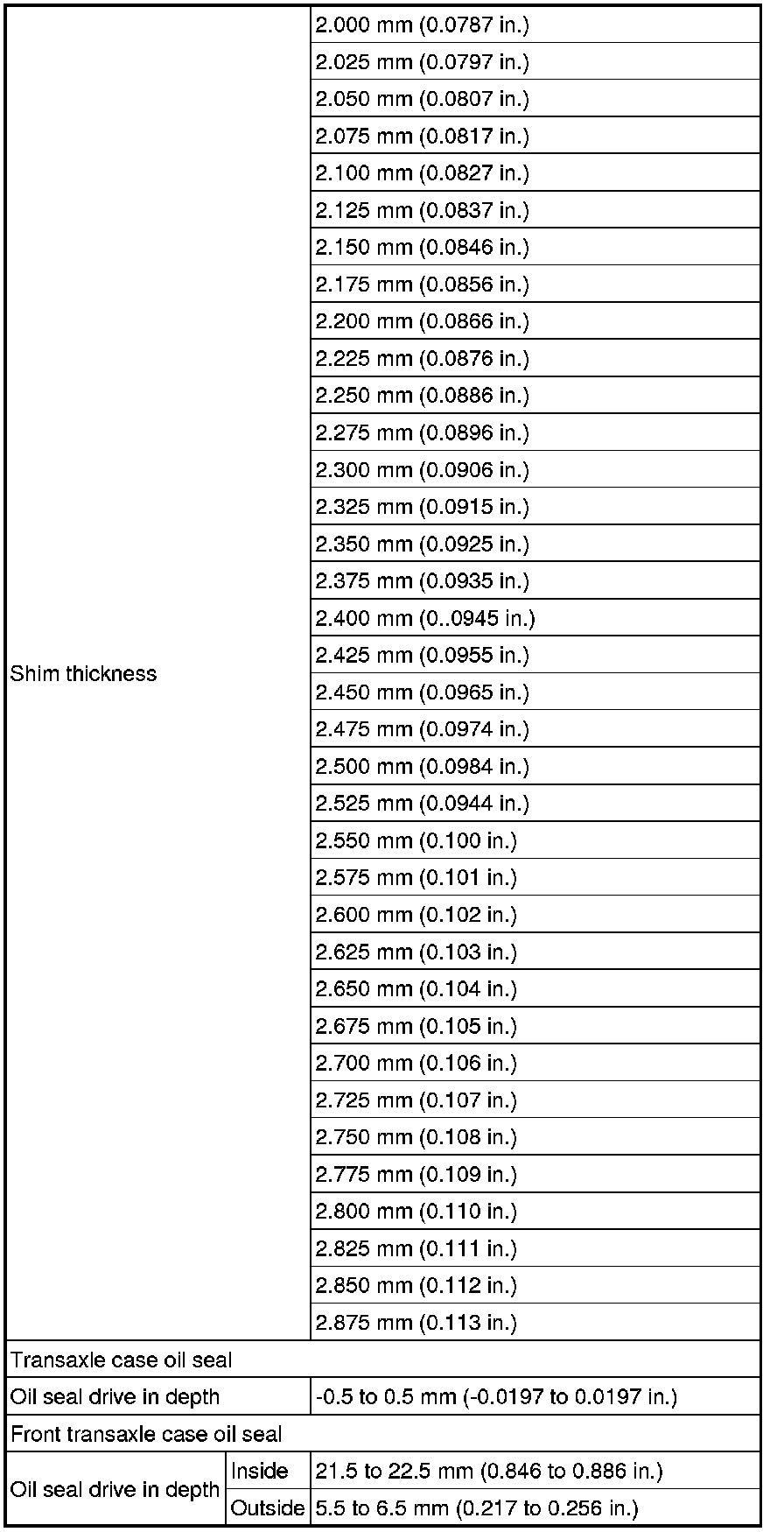

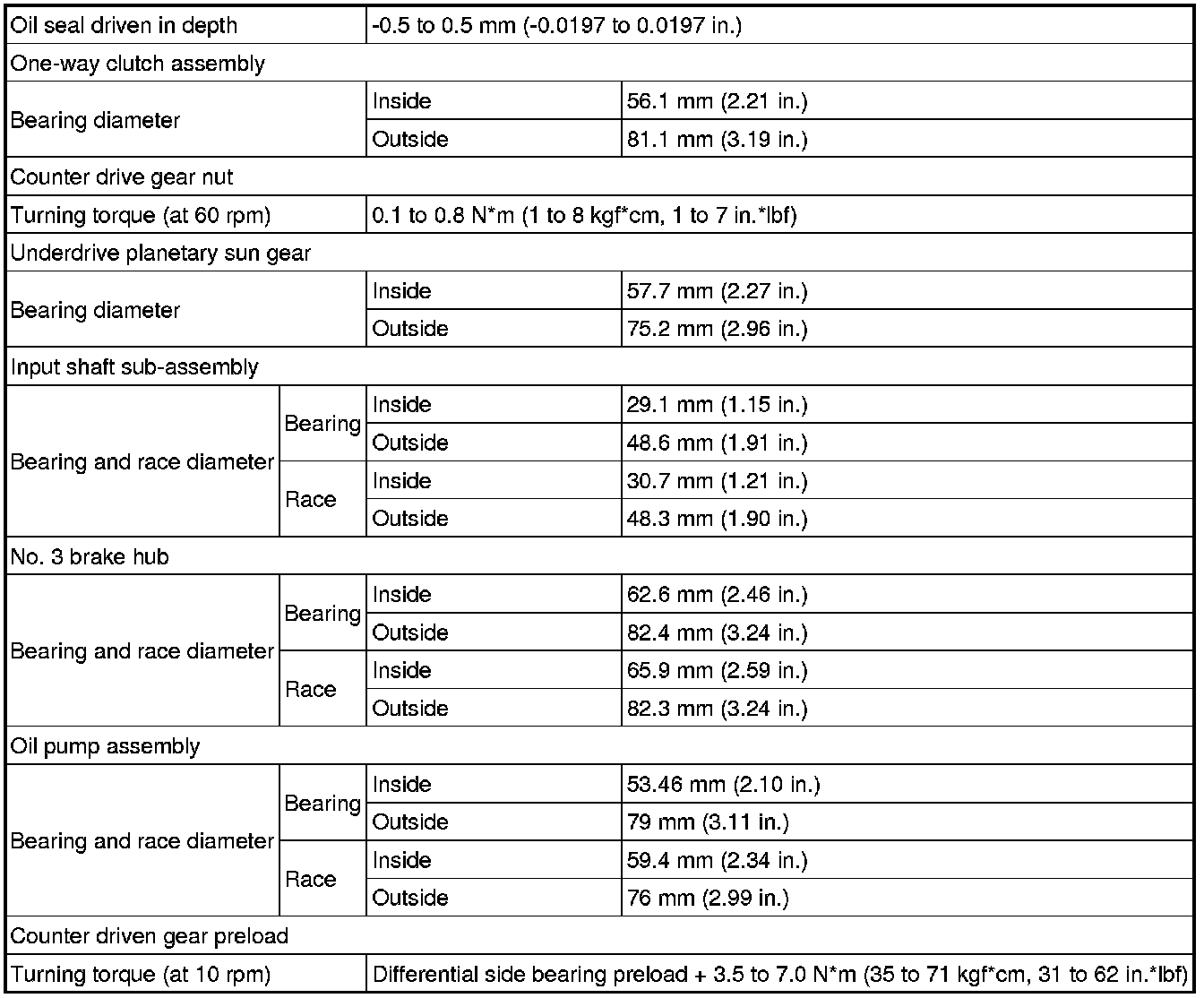

Differential Case
