Home >> Toyota >> 2012 >> Venza AWD L4-2.7L (1AR-FE) >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Locations

Ignition System: Locations

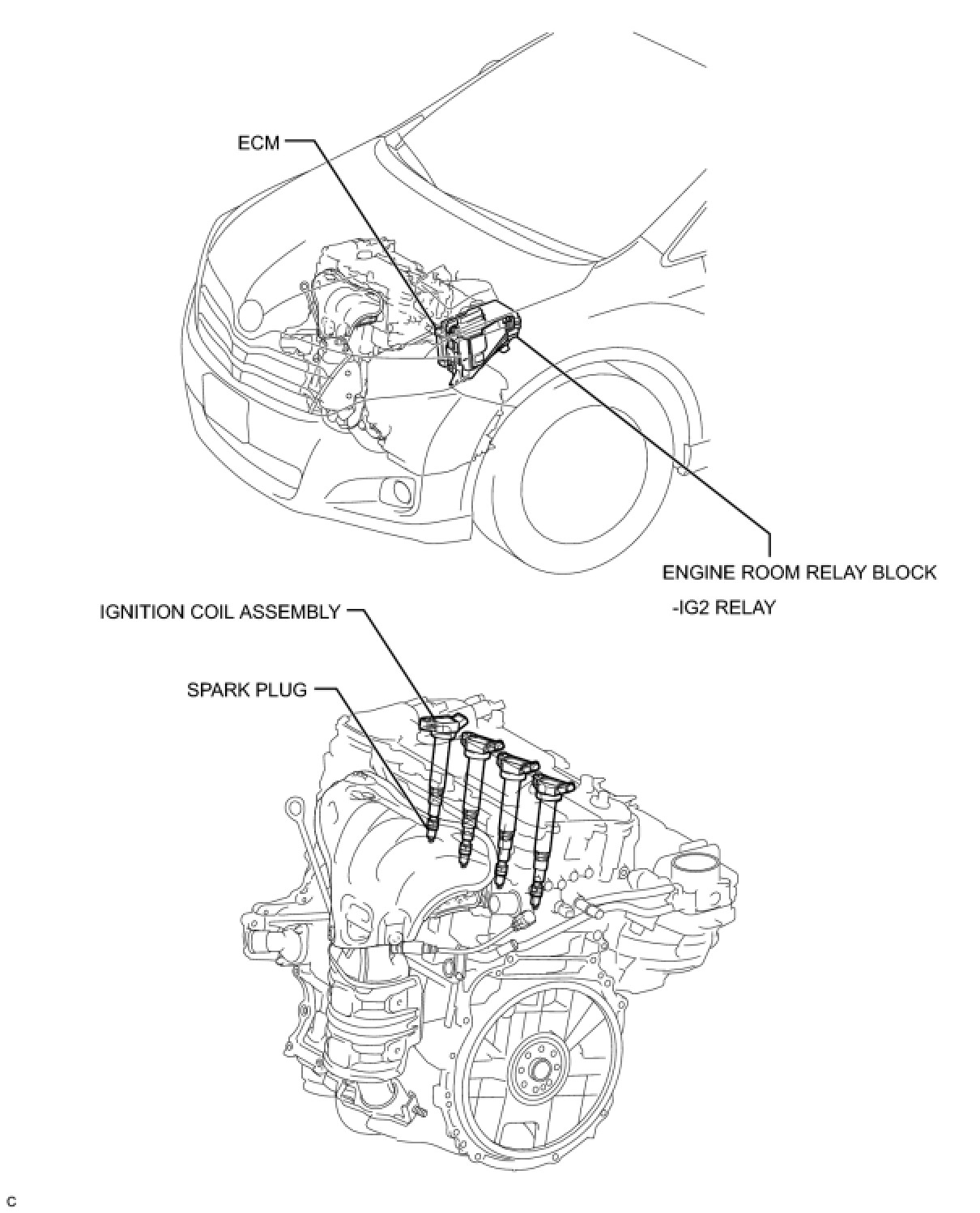

1AR-FE ENGINE CONTROL: IGNITION SYSTEM: PARTS LOCATION
