Terminating Resistor: Locations

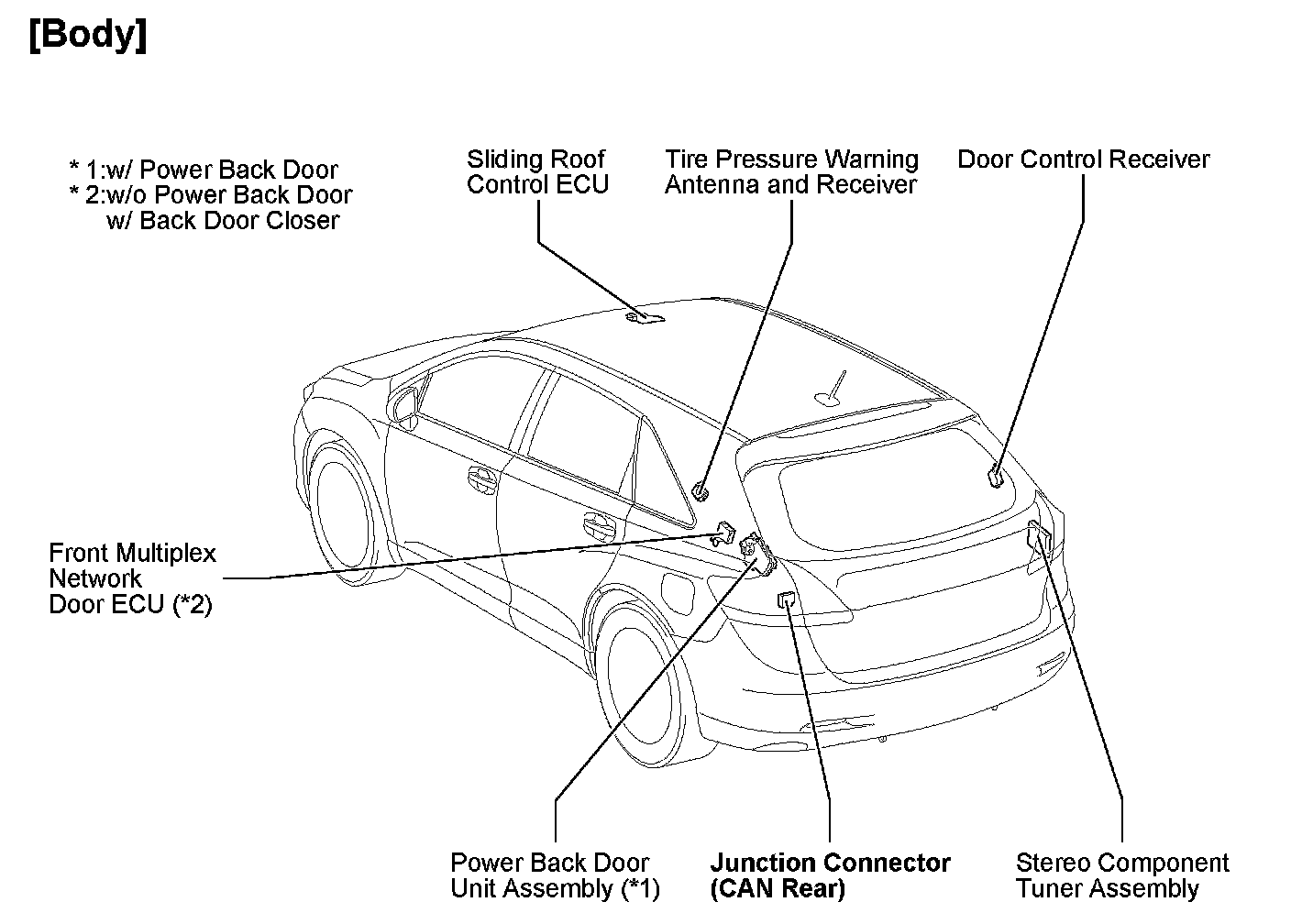

Body:





Instrument Panel:





The Terminating Resistors are in Junction Connector (CAN) Front and Junction Connector (CAN) Rear.
