Front Wiper Deicer: Notes

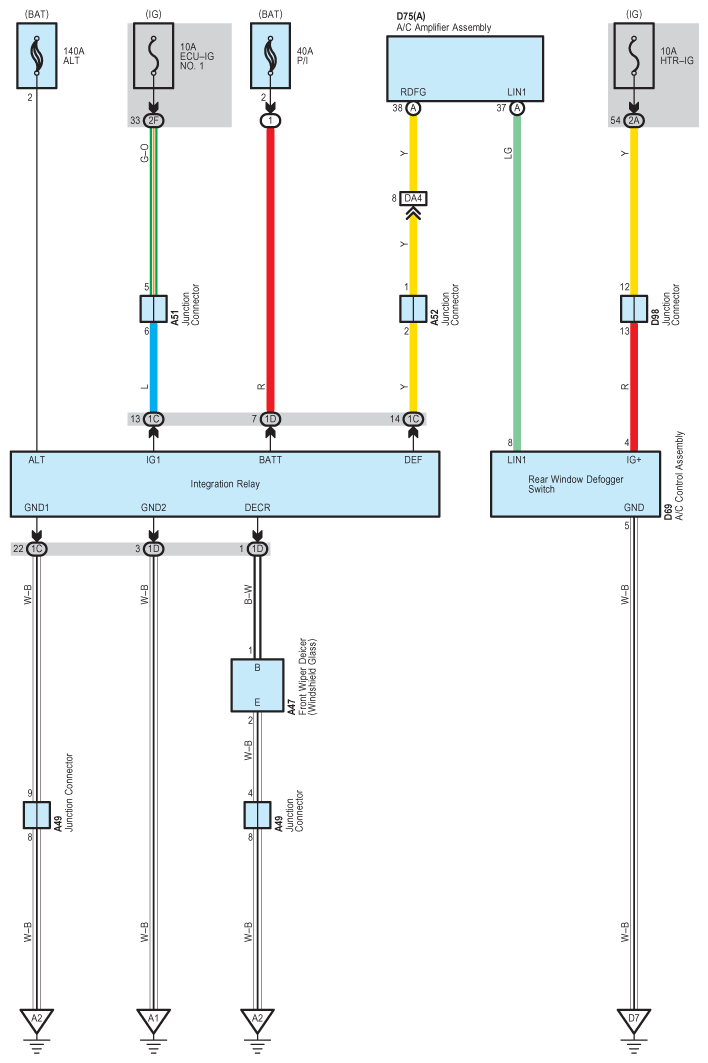

Fig 1: Front Wiper Deicer Wiring Diagram

G08846322

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
