Knock Sensor: Components: Illustration

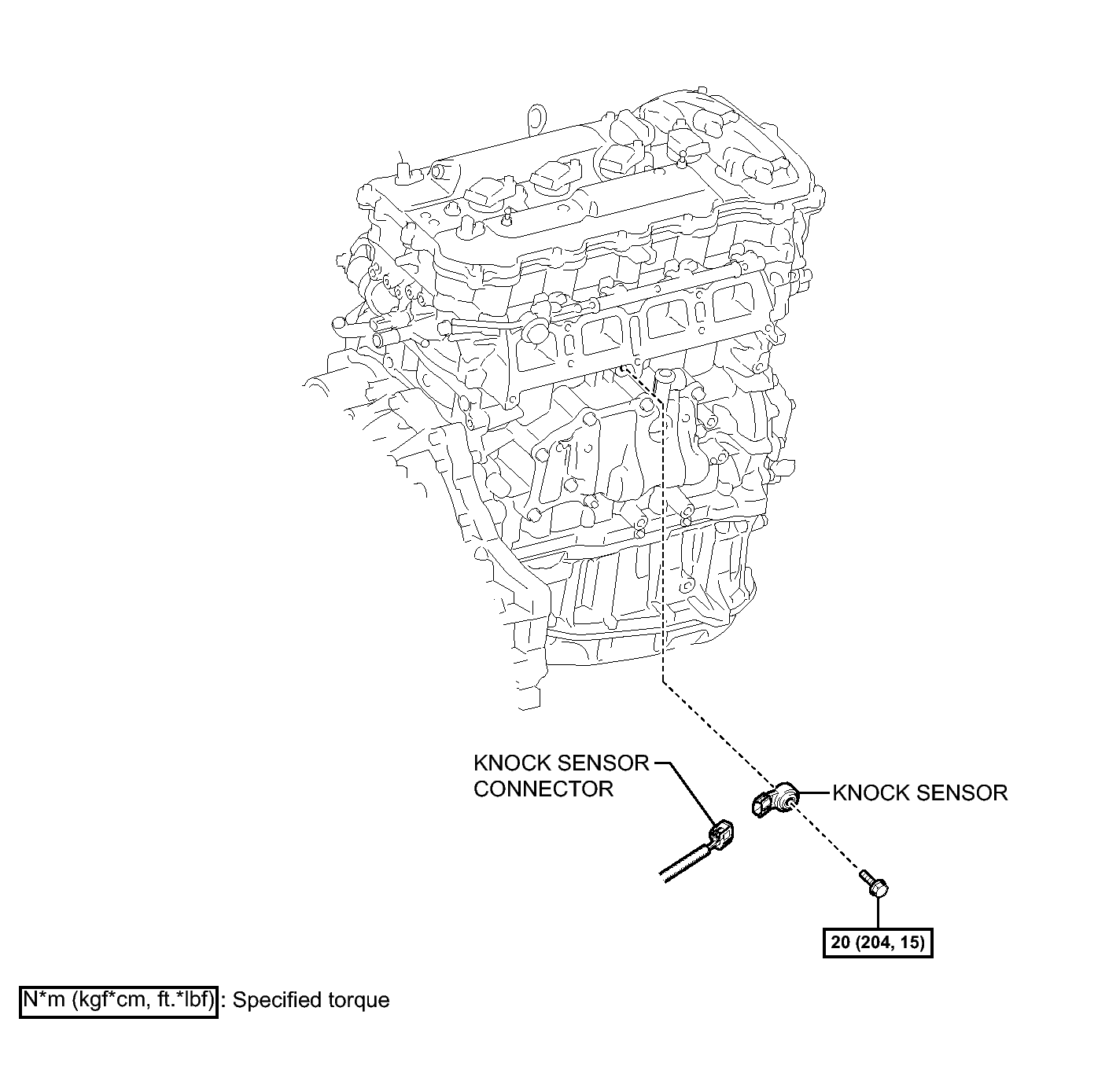

Fig 1: Knock Sensor Replacement Components With Torque Specifications

GTY306436

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
