Seats

SPECIFICATIONS: SEAT: SERVICE DATA

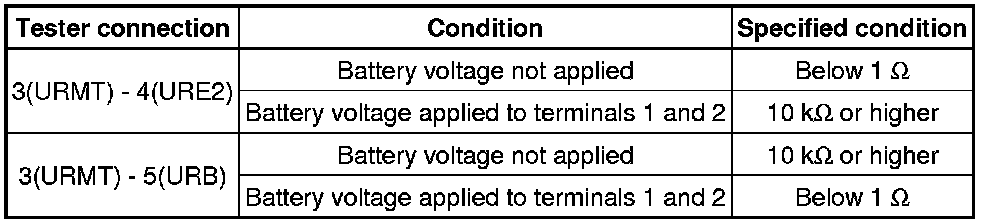

POWER LIFT CONTROL RELAY (for Seat Raise)

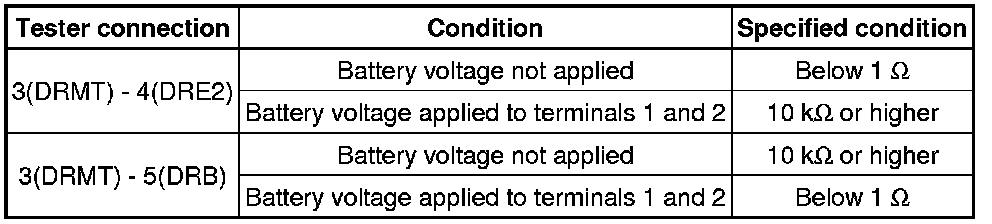

POWER LIFT CONTROL RELAY (for Seat Lower)
