Component Tests and General Diagnostics

U760E AUTOMATIC TRANSMISSION / TRANSAXLE: PARK / NEUTRAL POSITION SWITCH: INSPECTION

1. INSPECT PARK/NEUTRAL POSITION SWITCH ASSEMBLY

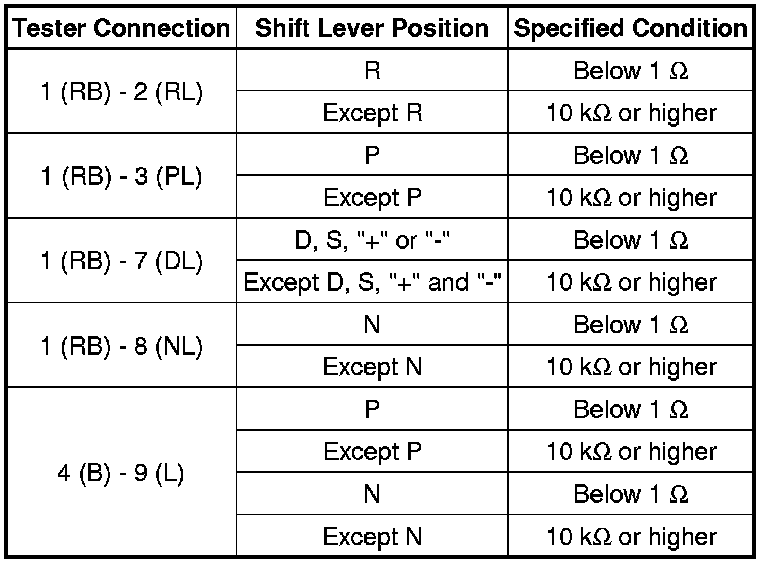

(a) Measure the resistance according to the value(s) in the table below.





Text in Illustration





Standard Resistance:





* If the result is not as specified, replace the park/neutral position switch.
