Power Seat Control Module: Locations

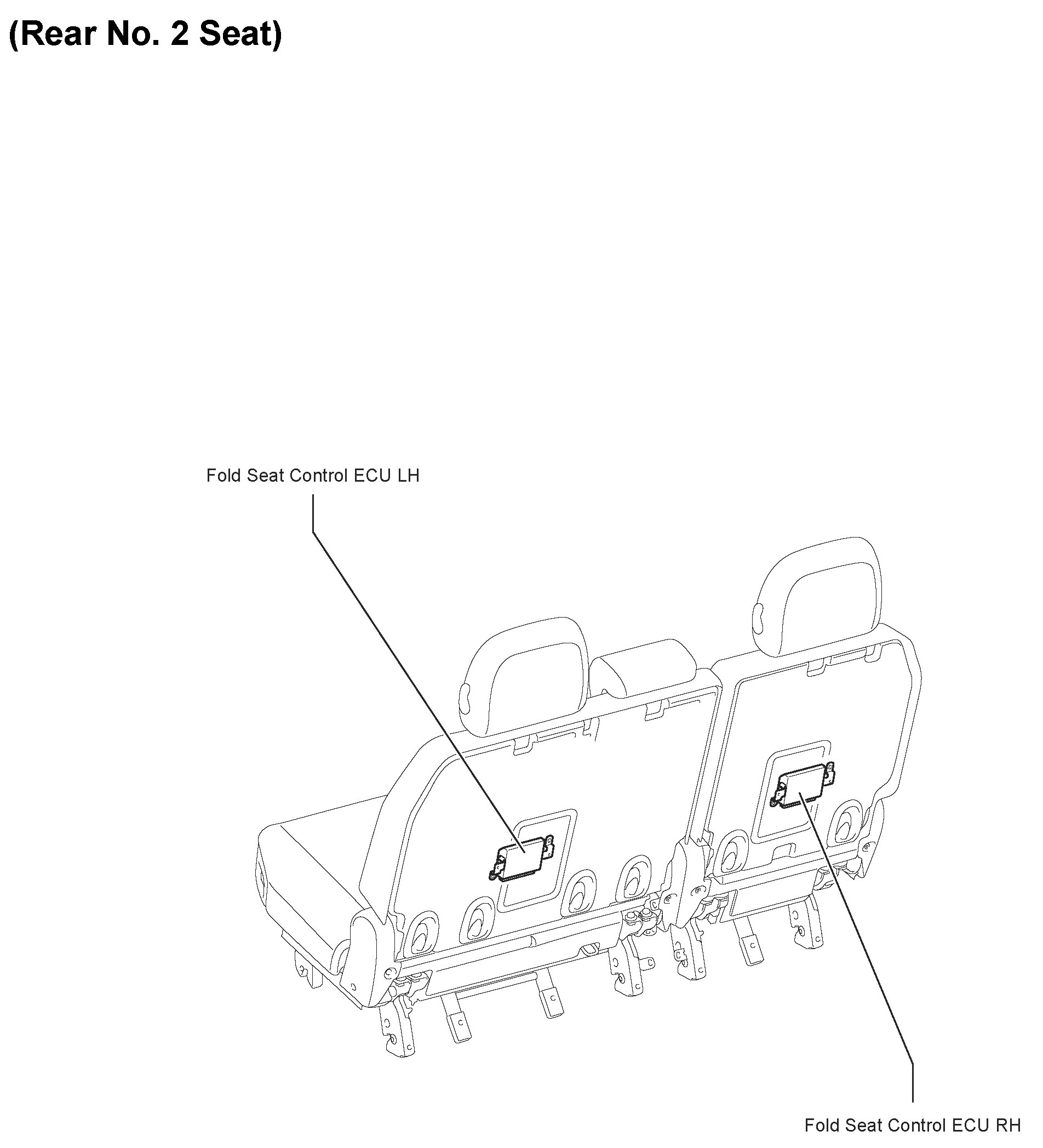

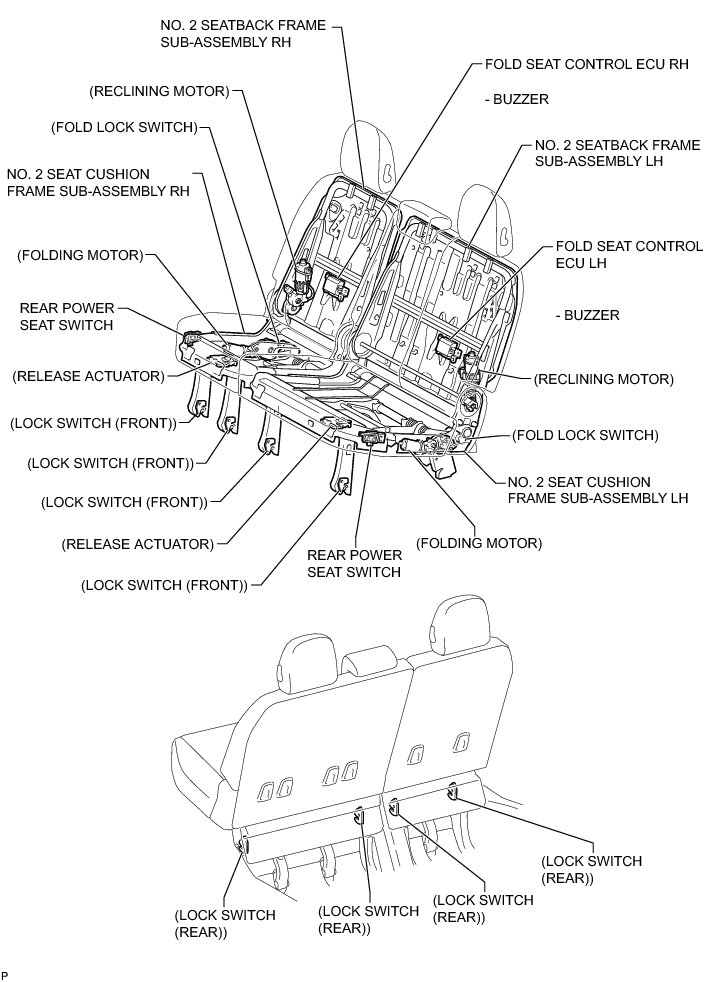

SEAT: REAR POWER SEAT CONTROL SYSTEM: PARTS LOCATION





Seat:
