Removal

SEAT: SEAT MEMORY SWITCH: REMOVAL

1. REMOVE FRONT DOOR ARMREST BASE PANEL Removal

2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL Removal

3. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH Removal

4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY Removal

5. REMOVE SEAT MEMORY SWITCH

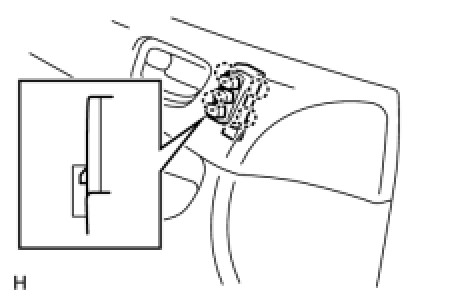

(a) Disengage the 4 claws and remove the seat memory switch.
