Service Data





SERVICE SPECIFICATIONS: 2AR-FE ENGINE MECHANICAL: SERVICE DATA

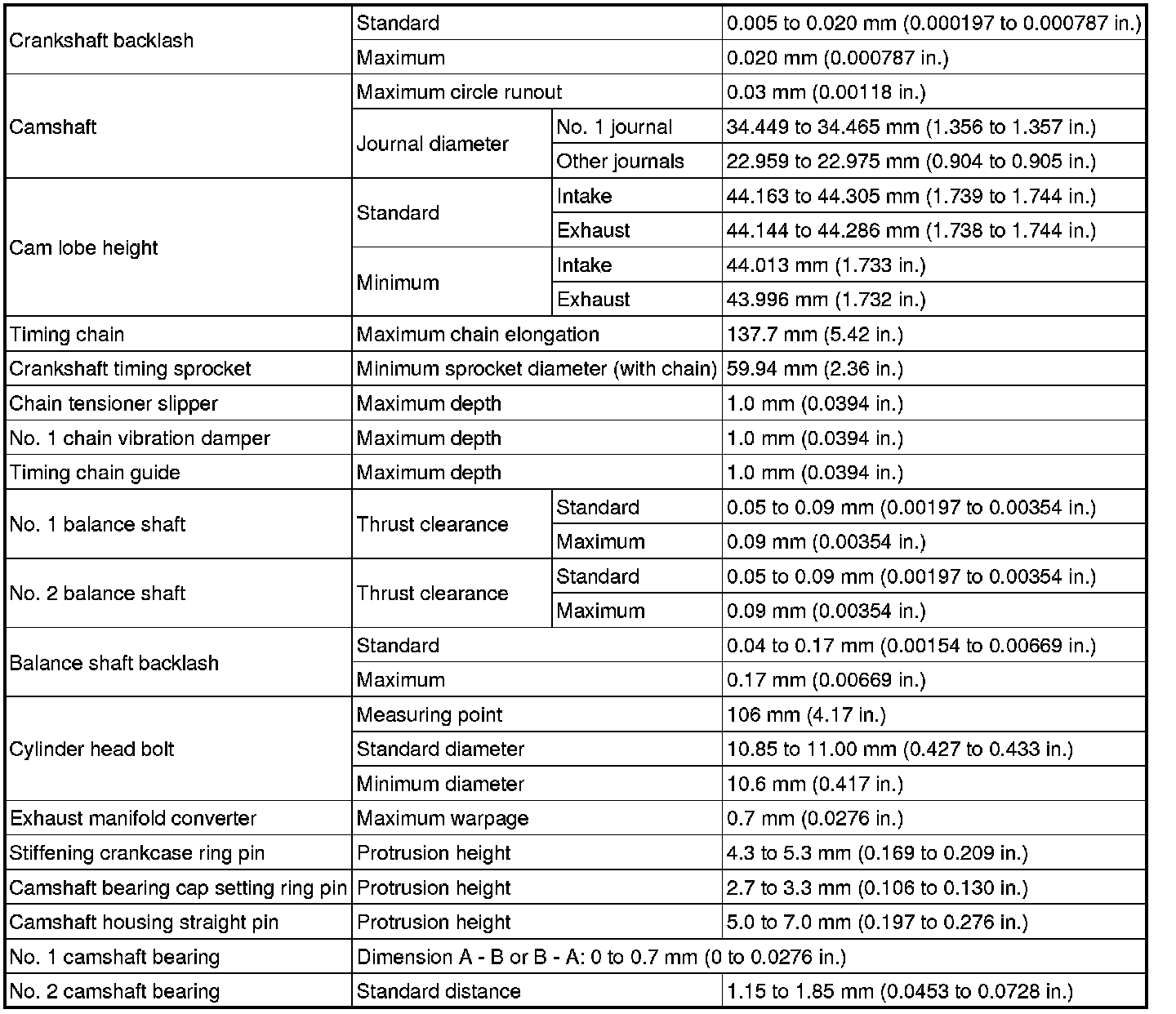

ENGINE

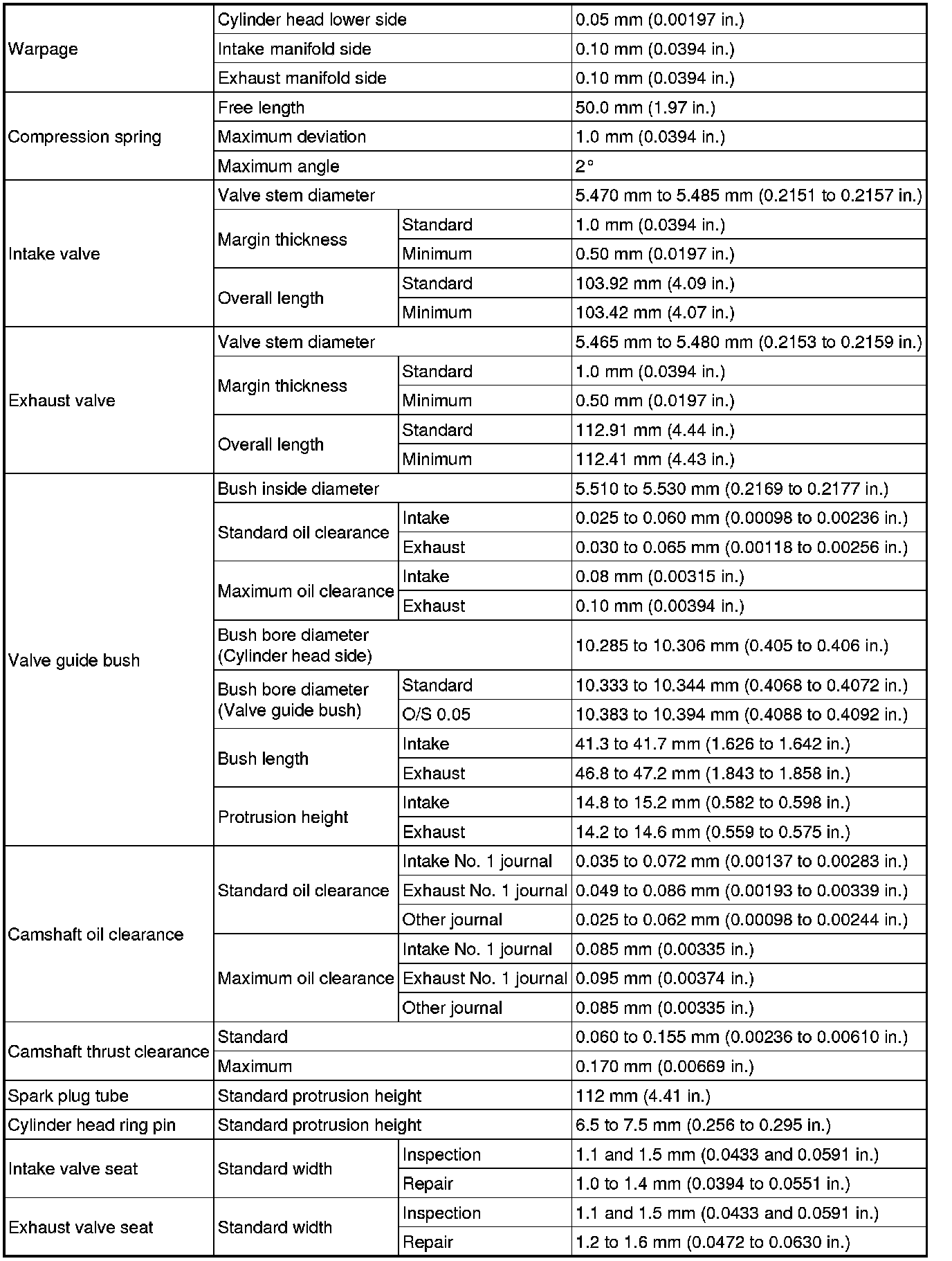

CYLINDER HEAD

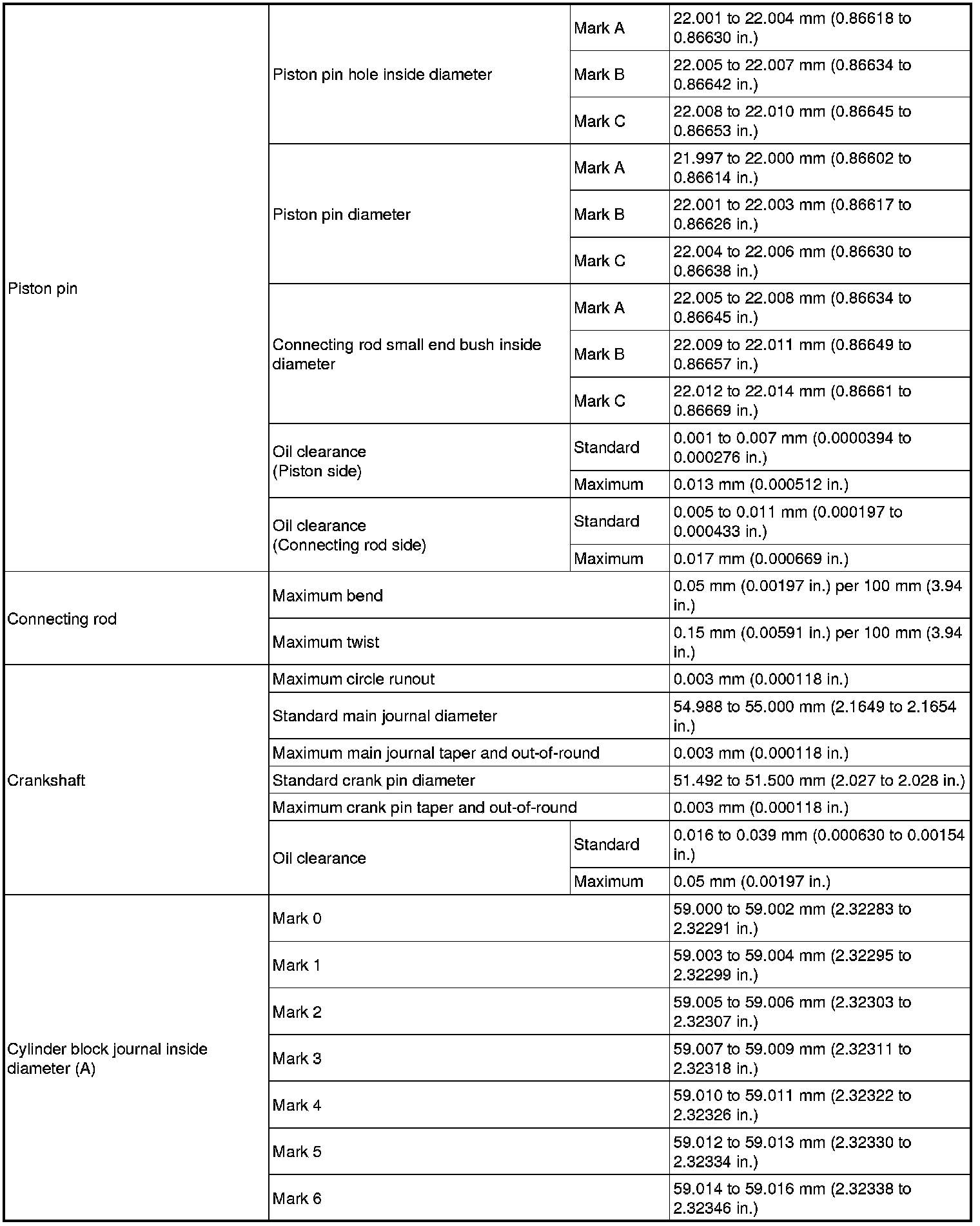

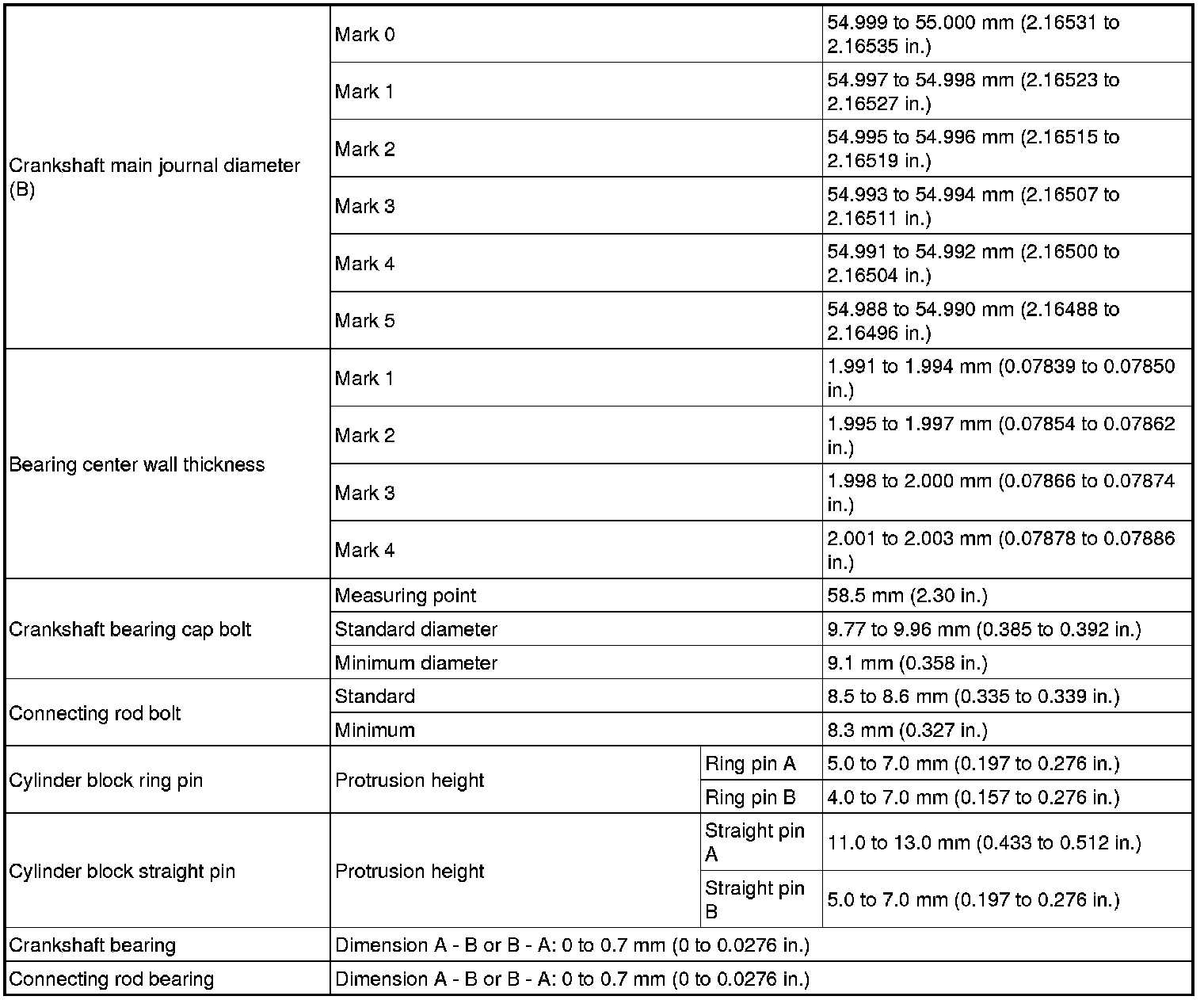

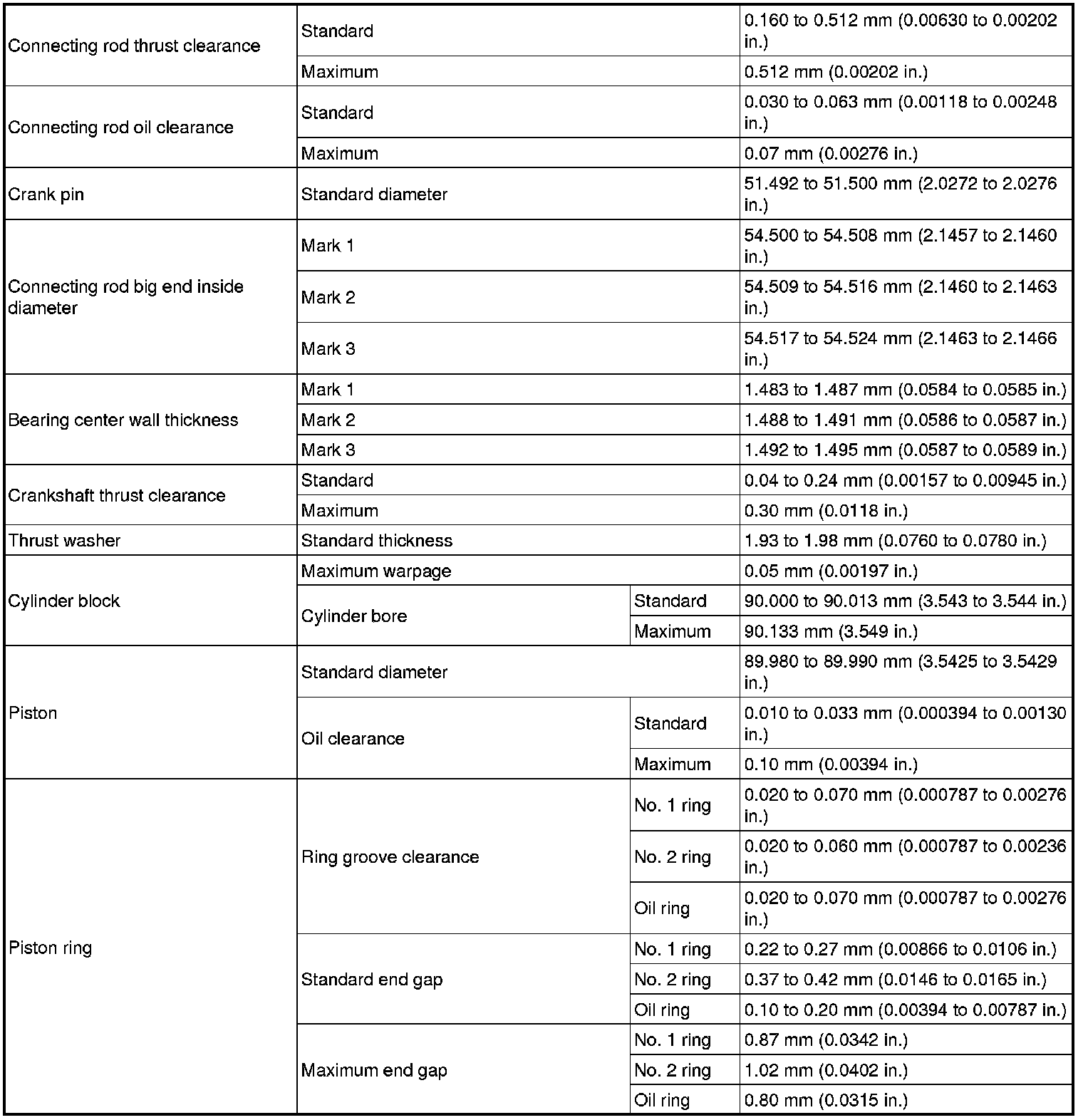

CYLINDER BLOCK














ENGINE UNIT
